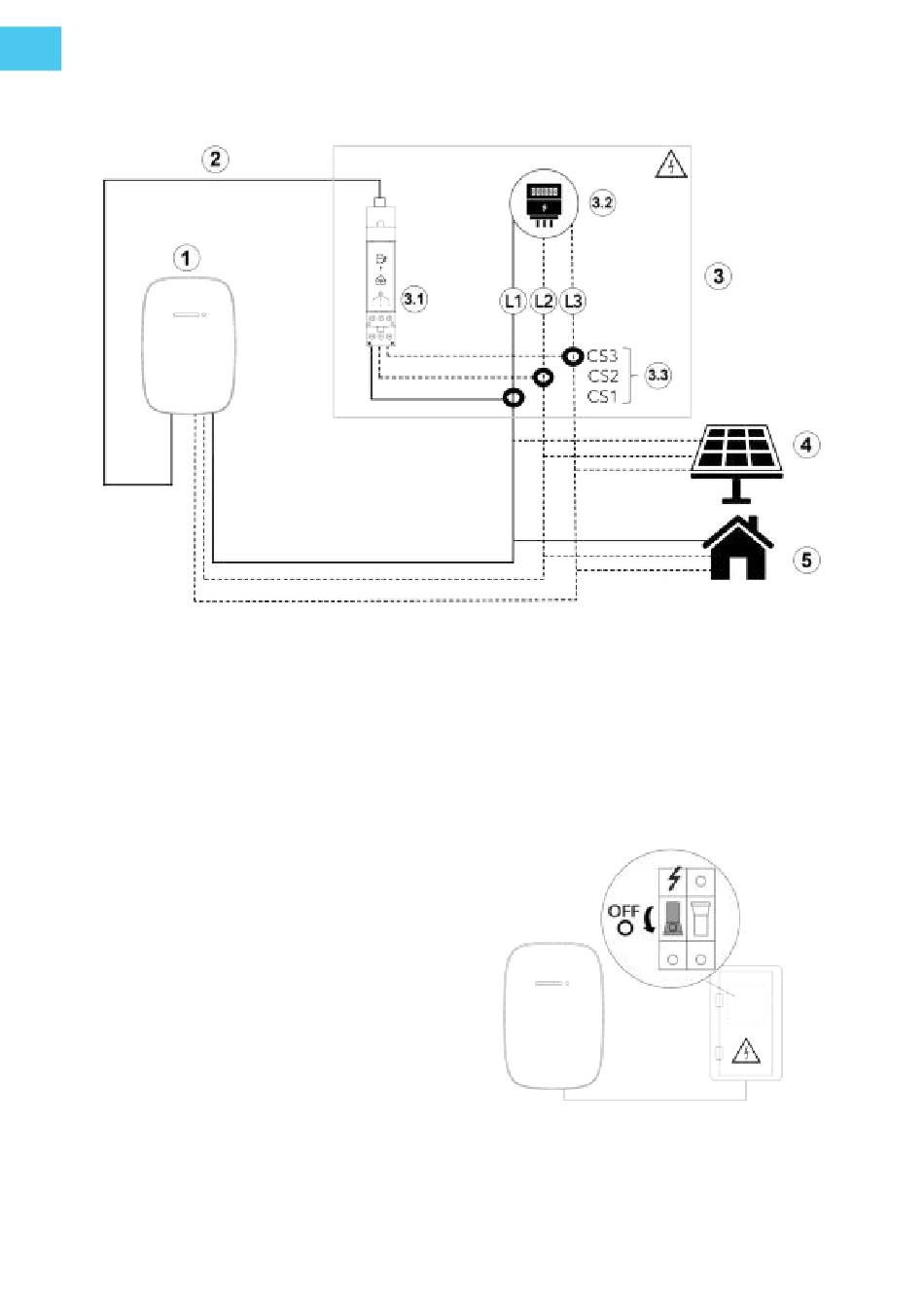

4.1.2. Connection diagram

1. Charging station
2. Network cable
3. Power supply cabinet
3.1 DLB adapter

4.2. Installation

1. In the power supply cabinet, switch
off the power to the charging station.
2. Put up warning signs to prevent accidental connection of power to the
charging station.
14
4. Installation instructions
3.2 Electricity meter
3.3. Current sensors
4. Solar power system
5. Home appliances
