4. Installation instructions

4. Installation instructions

4.1. Prepare for installation

The following recommendations are a guide to help you plan the installation
of the DLB Kit:
Confirm the maximum current capacity per phase of the home or facility.
This value defines the maximum configured capacity for dynamic load
balancing.
Ensure that the electric wires where the current sensors will be mounted
have basic or reinforced insulation.
Ensure that a suitable length of network cable can be routed from the
charging station to the DLB installation.
Note
The network cable must have a maximum length of 30 m (unshielded)
or 150 m (shielded).
Ensure that there is one module space on a DIN rail in the power supply
cabinet.

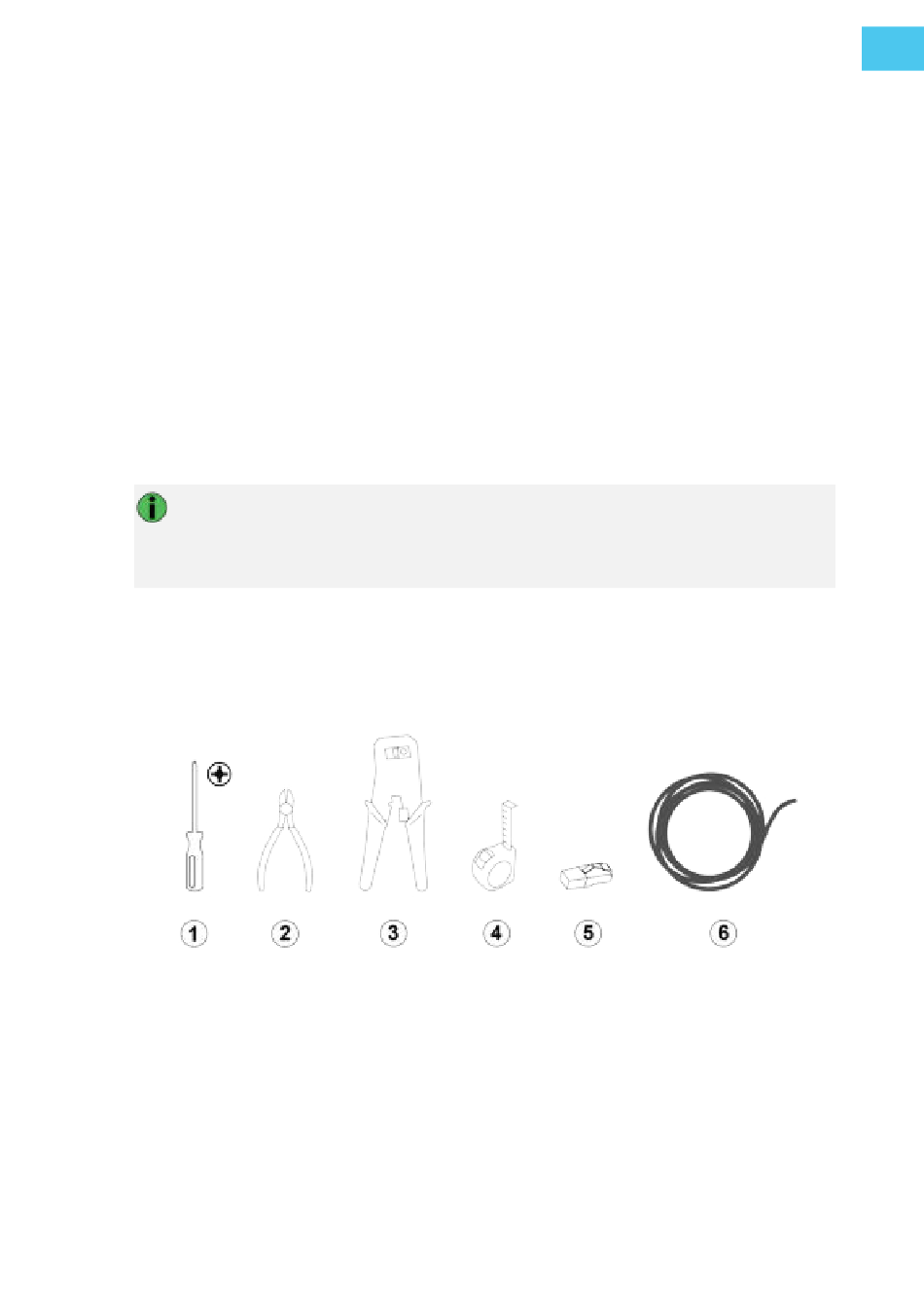

4.1.1. Tools and materials required

1. Torque Screwdriver, PH1
2. Wire cutter
3. RJ45 crimp tool
4. Tape measure
* Network cables can have a pre-installed RJ45 plug, or the RJ45 plug can
be installed before or after routing the network cable into the charging
station.
5. RJ45 plugs 2x (optional) *
6. Network cable (Cat5, Cat5e,
Cat6), with twisted paired wires *
EN
13
