ELECTRICAL CONNECTION

This appliance is conside-
EN
red to be suitable for use
in countries having a warm
damp equable climate as
specified in IEC 60721-2-1.
It may also be used in other
countries.
The SILENT DESIGN is an extractor
designed for a single phase supply,
with voltage and frequency as indi-
cated on the rating plate of the unit.
The units are manufactured with dou-
ble electrical insulation (Class II) and
therefore they do not need an earth
connection.
In addition to the switch shown in the
installation drawing/diagram, there
must be an All Pole switch in the fixed
wiring with a contact opening of min
3 mm.
The electrical cable must enter the
SILENT DESIGN through the cable
entry (4).
Once the cable has been introduced
proceed using the electrical wiring
diagram applicable to the selected
model.
SILENT CHZ DESIGN
Models provided with an electronic
humidistat which can be adjusted
from 60% to 90 % RH (Relative Hu-
midity) and with a timer, adjusta-
ble between 1 and 30 minutes. The
desired humidity level and run on
time are selected by means of 8
dip-switches placed on the printed
circuit board, and easily accessible.
14 14

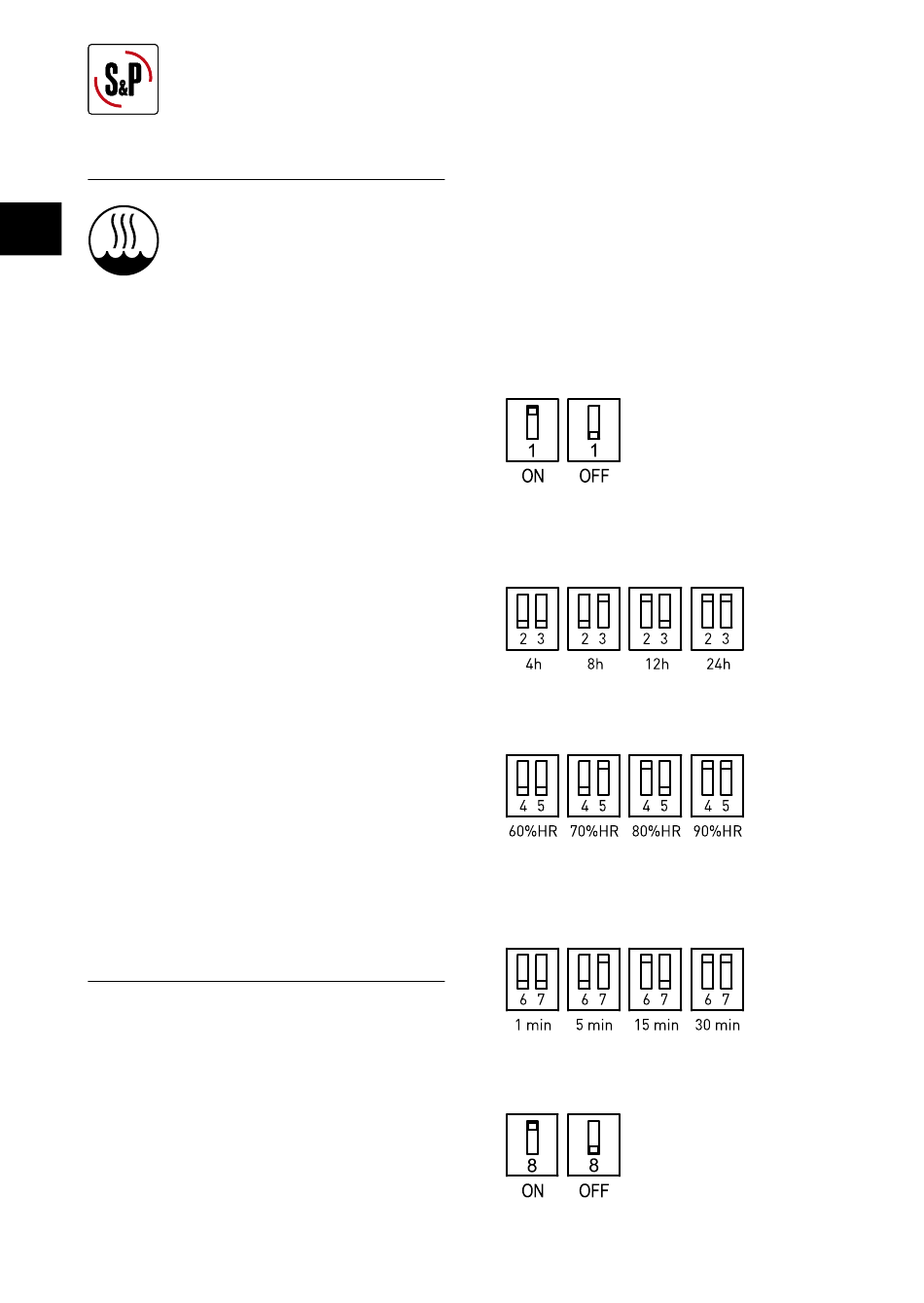

Each dip-switch has two positions
[ON (1) and OFF (0)] which are select-
ed with the small plastic screwdriver
supplied with the fan:
The functions of these dip-switches
are:
– Switch 1: "Interval" function selec-
tion (yes or no)
– Switches 2 and 3: Interval time
settings between 4, 8, 12 and 24
hours
– Switches 4 and 5: Humidistat set-
tings between 60, 70, 80 and 90%
– Switches 6 and 7: Over-run timer
settings between 1, 5, 15 and 30
minutes
– Switch 8: Start-up timer function
(yes or no)
