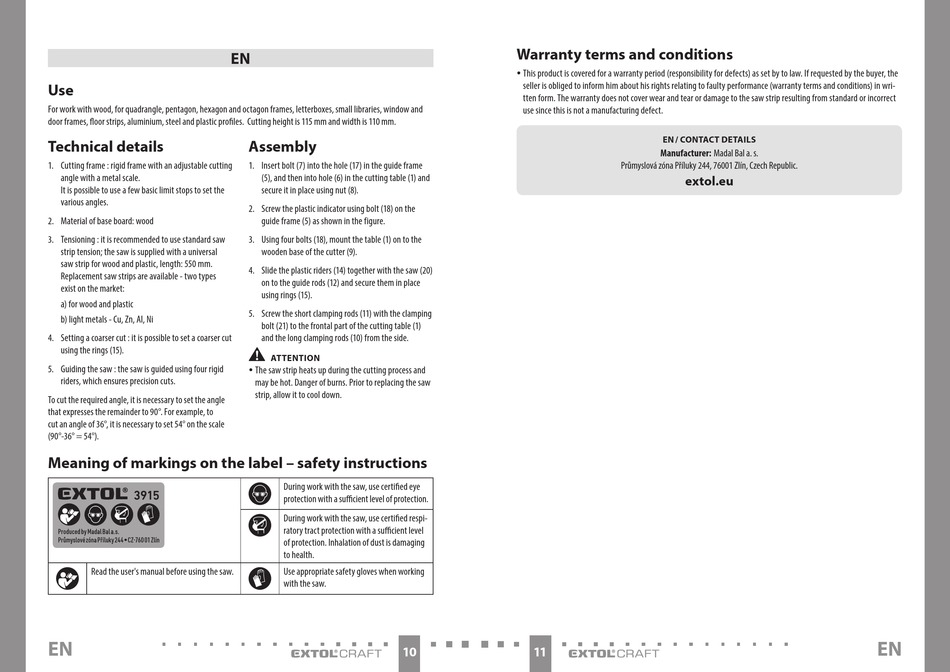

Use

For work with wood, for quadrangle, pentagon, hexagon and octagon frames, letterboxes, small libraries, window and

door frames, floor strips, aluminium, steel and plastic profiles. Cutting height is 115 mm and width is 110 mm.

Technical details

1. Cutting frame : rigid frame with an adjustable cutting

angle with a metal scale.

It is possible to use a few basic limit stops to set the

various angles.

2. Material of base board: wood

3. Tensioning : it is recommended to use standard saw

strip tension; the saw is supplied with a universal

saw strip for wood and plastic, length: 550 mm.

Replacement saw strips are available - two types

exist on the market:

a) for wood and plastic

b) light metals - Cu, Zn, Al, Ni

4. Setting a coarser cut : it is possible to set a coarser cut

using the rings (15).

5. Guiding the saw : the saw is guided using four rigid

riders, which ensures precision cuts.

To cut the required angle, it is necessary to set the angle

that expresses the remainder to 90°. For example, to

cut an angle of 36°, it is necessary to set 54° on the scale

(90°-36° = 54°).

Meaning of markings on the label – safety instructions

Read the user's manual before using the saw.

Assembly

1. Insert bolt (7) into the hole (17) in the guide frame

(5), and then into hole (6) in the cutting table (1) and

secure it in place using nut (8).

2. Screw the plastic indicator using bolt (18) on the

guide frame (5) as shown in the figure.

3. Using four bolts (18), mount the table (1) on to the

wooden base of the cutter (9).

4. Slide the plastic riders (14) together with the saw (20)

on to the guide rods (12) and secure them in place

using rings (15).

5. Screw the short clamping rods (11) with the clamping

bolt (21) to the frontal part of the cutting table (1)

and the long clamping rods (10) from the side.

•

ATTENTION

y The saw strip heats up during the cutting process and

may be hot. Danger of burns. Prior to replacing the saw

strip, allow it to cool down.

During work with the saw, use certified eye

protection with a sufficient level of protection.

During work with the saw, use certified respi-

ratory tract protection with a sufficient level

of protection. Inhalation of dust is damaging

to health.

Use appropriate safety gloves when working

with the saw.
