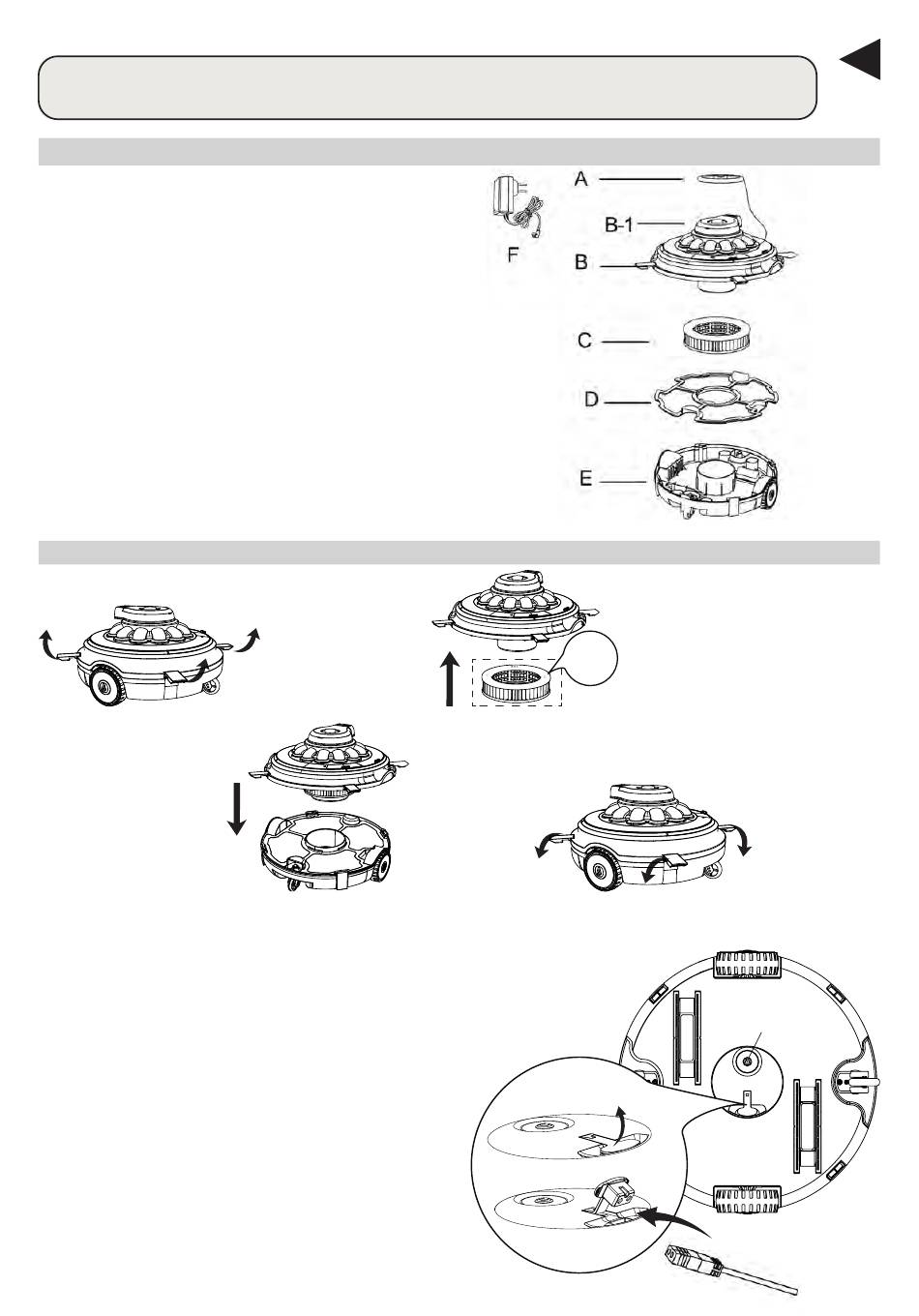

ASSEMBLY
A: Floater
B: Upper cover
B-1: Jet head
C: Cartridge filter
(Assembling and cleaning
for small micro dust ONLY)
D: Filter
E: Bottom base
F: Charger
There is a rotation jet head at the upper cover, the
water is passing from bottom to the jet head to make
the robot moving. While facing obstacle, the jet head
turns around 180 degrees, the robot rounds the
obstacle and moving by another line. The rubbish is
collected and installed by the bottom filter cabine.

ASSEMBLY AND OPERATION

1
Charging warning:
• Only use the external adapter and the charging
cable provided.
• Make sure that the robot and charger ports are
clean and dry before installation.
• Power up the robot before using it for the first
time (about 5 hours)
1. Please turn off the robot before charging
2. Take the pin cover off before charging.
3. Plug the charger into the charging port, then start
to charge.
Note: Once the robot starts charging, the indicator light
on the external adapter will turn red. When the robot is
fully charged, the indicator light will turn green.
4. After charging, put the pin cover back on the
charging port. Make sure that the pin cover is fully
sealed before submerging in the water.
INSTRUCTION MANUAL
3
2
TOP
TOP
4
Pin cover
Charging pot
(ONLY assembling it while
small micro dust cleaning
needed)
Bottom cover body assembly
Switch
Charger
