Dimensions (Mm) - Johnson Controls SDP2500 Installationsanleitung

Differenzdruck-messumformer
Inhaltsverzeichnis

Werbung

Verfügbare Sprachen

Verfügbare Sprachen

Connection
1
UB+
2
GND
3
AOU1
________________________________
UB+
→ Power supply 24V
GND
→ Ground
AOUx
→ Analog output 0..10 V
DIP 1..DIP 3 Measuring ranges
DIP 1
DIP 2
DIP 3
OFF
OFF
OFF
ON
OFF
OFF
OFF
ON
OFF
ON
ON
OFF
OFF
OFF
ON
ON
OFF
ON
OFF
ON
ON
ON
ON
ON
DIP 4 Response time
DIP 4
OFF
ON
DIP 5 Display settings
DIP 5
OFF
ON
Backlight ON (default setting)

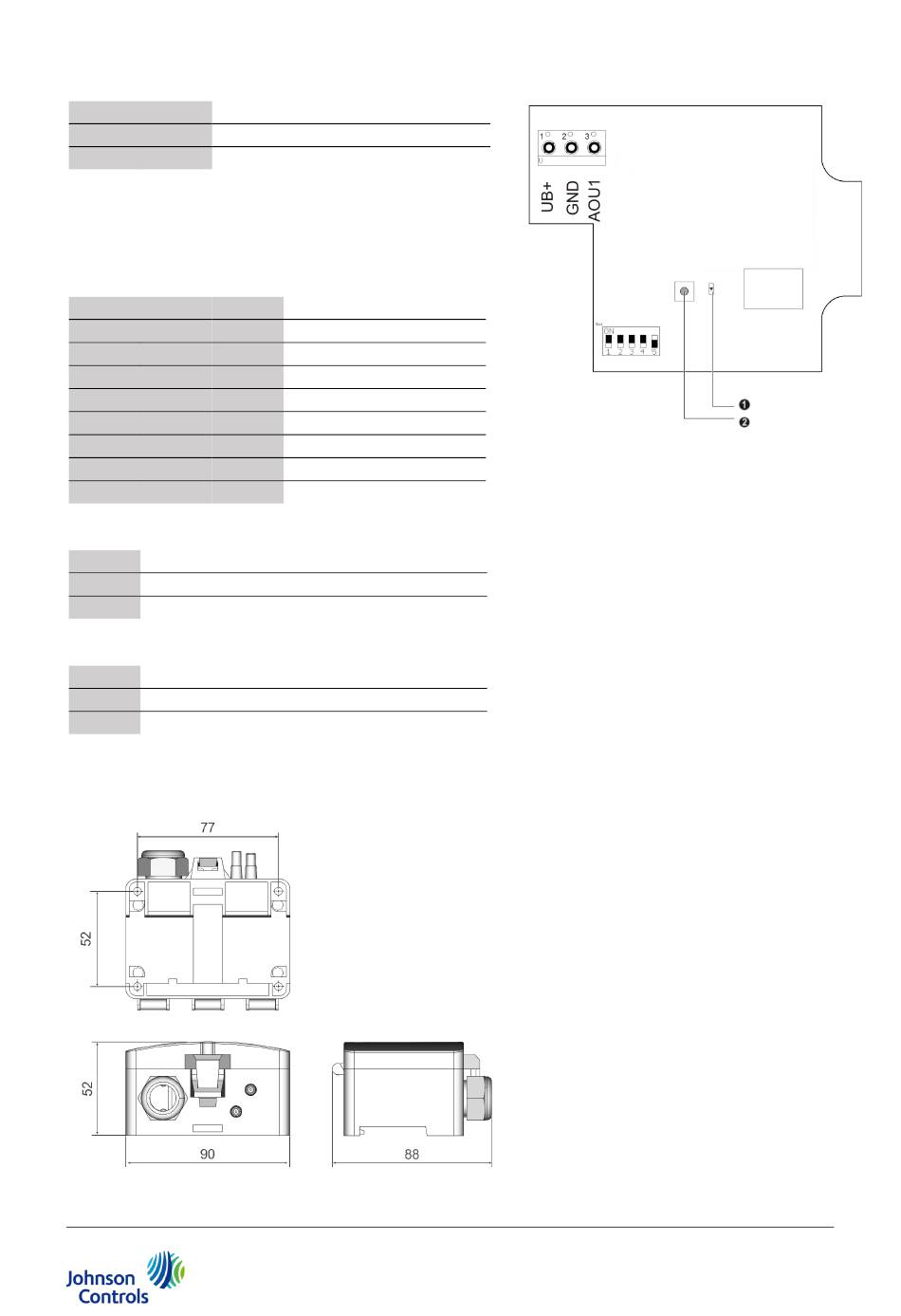

Dimensions (mm)

15..24 V = (±10%) or 24 V ~ (±10%)
GND
0..10 V | differential pressure
Range
0..+2500 Pa (default setting)
0..+2000 Pa
0..+1500 Pa
0..+1000 Pa
0..+500 Pa
0..+250 Pa
0..+100 Pa
-100..+100 Pa
Response time
4 s (default setting)
10 s
LCD Backlight
Backlight OFF
In order to reach IP 65 protection according to EN 60527, the cover has to be bolted
e.g. using a screw 3,5x10 mm according to EN 7981.
SDP2500 Differential pressure transmitter
1 – Status (Power LED)
2 – Button for manual zero point correction
During normal operation, a manual zero point correction
should be performed every 12 months.
Attention! In order to perform the manual zero point
correction properly, the power supply must be
connected at least one hour before.
• Remove both connection tubes from the pressure
terminals + and -
• Press the button until the LED lights up permanently
• Wait until the LED flashes again and reinstall the
connection tubes to the pressure terminals (pay
attention to + and -)
3
