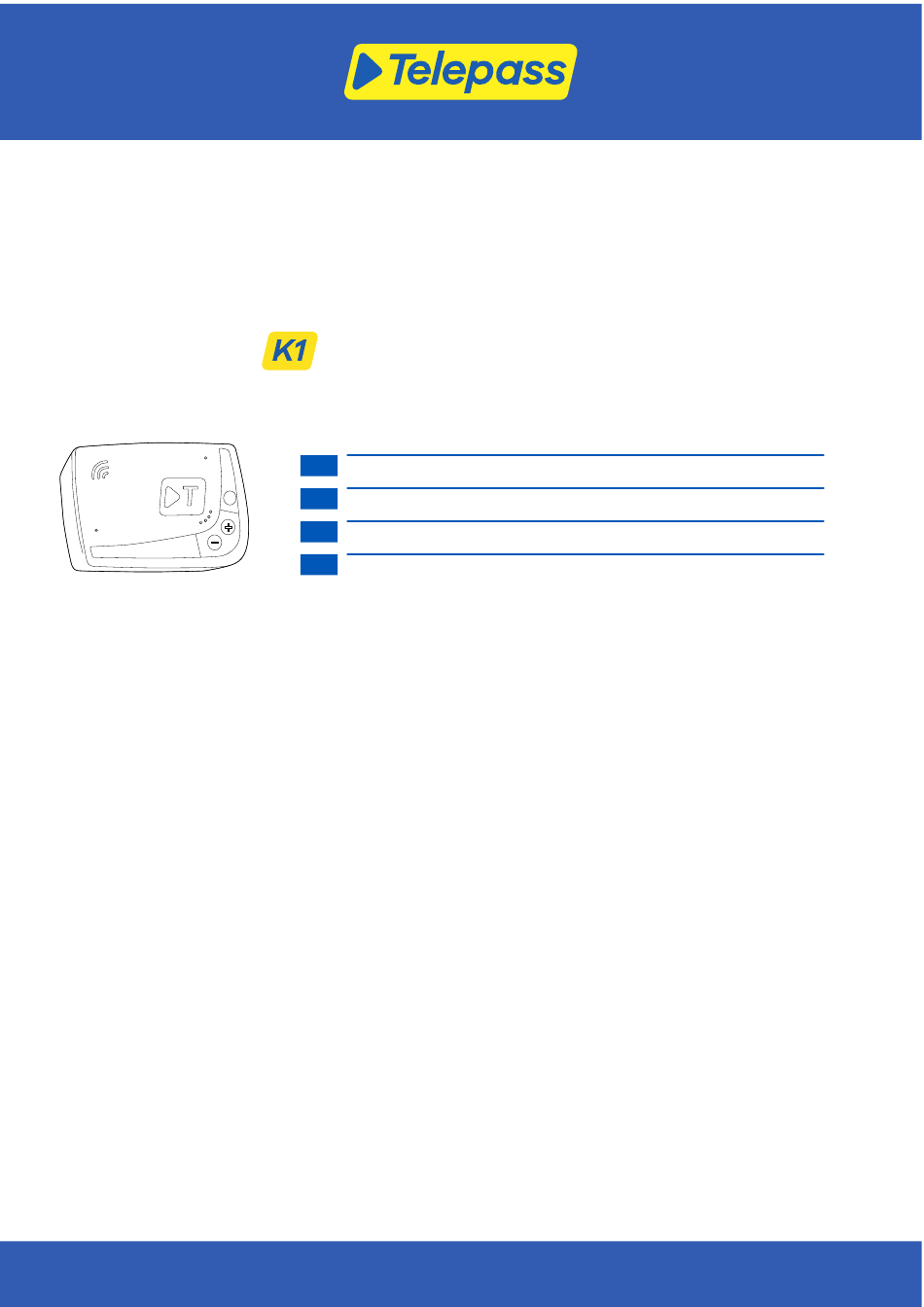

Telepass SAT Technology ETOLLK1TL Manuale installazione Installation manual Installationshandbuch Instrukcja instalacji...
Seite 2: Manuale Di Installazione
Non utilizzare il dispositivo se appare danneggiato. Se dal dispositivo fuoriesce del liquido non maneggiare a mani nude e contattare immediatamente l'assistenza per restituire al fornitore del servizio. Telepass SpA - Via Laurentina, 449 - 00142 Roma (RM) - Italia - www.telepass.com TLP-K1-Inst-1.1_A4_IT-0123 © 2023...
Seite 3: Contenuto Confezione
Il dispositivo comunica con l'utilizzatore per mezzo di messaggi vocali e acustici. Il dispositivo deve essere collegato all'impianto elettrico del veicolo secondo quanto indicato in questo manuale. Telepass SpA - Via Laurentina, 449 - 00142 Roma (RM) - Italia - www.telepass.com TLP-K1-Inst-1.1_A4_IT-0123 © 2023...
Seite 4: Installazione Del Dispositivo
Materiali richiesti Due fusibili da 3 A e relativi portafusibili. Telepass SpA - Via Laurentina, 449 - 00142 Roma (RM) - Italia - www.telepass.com TLP-K1-Inst-1.1_A4_IT-0123 © 2023...
Seite 5
Spegnere il quadro: il LED di stato verde lampeggia tre volte e poi si spegne. Per dettagli sui LED ed eventuali messaggi emessi, fare riferimento al Manuale d'uso a corredo. Telepass SpA - Via Laurentina, 449 - 00142 Roma (RM) - Italia - www.telepass.com TLP-K1-Inst-1.1_A4_IT-0123 © 2023...
Seite 6: Manutenzione E Smaltimento
ATTENZIONE! Rischio di esplosione. NON sottoporre il peso del veicolo. Fare riferimento al Manuale d'uso. dispositivo ad alte temperature. Telepass SpA - Via Laurentina, 449 - 00142 Roma (RM) - Italia - www.telepass.com TLP-K1-Inst-1.1_A4_IT-0123 © 2023...
Seite 7: Dati Tecnici
2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: https://www.telepass.com/it/truck/supporto 0051-RED-0118 NSAI come da regolamento UNECE R10 Omologazione Telepass SpA - Via Laurentina, 449 - 00142 Roma (RM) - Italia - www.telepass.com TLP-K1-Inst-1.1_A4_IT-0123 © 2023...
Seite 8: Safety Information
If liquid leaks from the device, do not handle it with your bare hands. Contact customer service immediately to return it to the service provider. Telepass SpA - Via Laurentina, 449 - 00142 Rome (RM) - Italy - www.telepass.com TLP-K1-Inst-1.1_A4_EN-0123 © 2023...
Seite 9: Intended Use
The device communicates with the user by voice and acoustic messages. The device must be connected to the vehicle's electrical system according to the instructions in this manual. Telepass SpA - Via Laurentina, 449 - 00142 Rome (RM) - Italy - www.telepass.com TLP-K1-Inst-1.1_A4_EN-0123 © 2023...
Seite 10: Device Structure
If the installation and configuration of the device are not G - Speaker correct, it is impossible to travel on any toll roads. H - Power inlet Telepass SpA - Via Laurentina, 449 - 00142 Rome (RM) - Italy - www.telepass.com TLP-K1-Inst-1.1_A4_EN-0123 © 2023...
Seite 11: Device Installation
NOTICE: make sure that the power cable is not subject to mechanical, thermal or chemical stress. Required material Two 3 A fuses and relevant fuse boxes. Telepass SpA - Via Laurentina, 449 - 00142 Rome (RM) - Italy - www.telepass.com TLP-K1-Inst-1.1_A4_EN-0123 © 2023...
Seite 12
Switch off the panel: the green LED status light flashes three times and then switches off. For further information on the LEDs and any messages, see the enclosed User manual. Telepass SpA - Via Laurentina, 449 - 00142 Rome (RM) - Italy - www.telepass.com TLP-K1-Inst-1.1_A4_EN-0123 © 2023...
Seite 13: Maintenance And Disposal
2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://www.telepass.com/en/truck/support 0051-RED-0118 NSAI as per UNECE R10 regulation Approval Telepass SpA - Via Laurentina, 449 - 00142 Rome (RM) - Italy - www.telepass.com TLP-K1-Inst-1.1_A4_EN-0123 © 2023...
Seite 14: Sicherheitsinformationen
Wenn Flüssigkeit aus dem Gerät austritt, fassen Sie das Gerät nicht mit bloßen Händen an und kontaktieren Sie unverzüglich den Kundendienst, um das Gerät an den Dienstanbieter zurückzugeben. Telepass SpA - Via Laurentina, 449 - 00142 Rom (RM) - Italien - www.telepass.com TLP-K1-Inst-1.1_A4_DE-0123 © 2023...
Seite 15: Beschreibung Des Produkts
Assistent für die Installation und Prüfung Um dieses Tool nutzen zu können, müssen Sie sich mit Ihrer Mobiltelefonnummer und E-Mail-Adresse registrieren. Der Installationsassistent umfasst die folgenden Tätigkeiten: Telepass SpA - Via Laurentina, 449 - 00142 Rom (RM) - Italien - www.telepass.com TLP-K1-Inst-1.1_A4_DE-0123 © 2023...
Seite 16: Installation Des Geräts
Beanspruchungen ausgesetzt ist und dass es den Fahrer nicht beim Fahren behindert. Erforderliches Material Zwei Sicherungen (3 A) und dazugehörige Sicherungshalter. Telepass SpA - Via Laurentina, 449 - 00142 Rom (RM) - Italien - www.telepass.com TLP-K1-Inst-1.1_A4_DE-0123 © 2023...
Seite 17: Positionieren Des Geräts An Der Windschutzscheibe
Beanspruchungen ausgesetzt ist. LED blinkt dreimal und erlischt anschließend. Für weitere Informationen über die LEDs und eventuell ausgegebene Meldungen siehe die mitgelieferte Bedienungsanleitung. Telepass SpA - Via Laurentina, 449 - 00142 Rom (RM) - Italien - www.telepass.com TLP-K1-Inst-1.1_A4_DE-0123 © 2023...
Seite 18: Wartung Und Entsorgung
Temperaturen aus. Vor der Verwendung des Geräts für die elektronische Mauterhebung müssen ggf. die Achsanzahl und das Fahrzeuggewicht eingegeben werden. Siehe dazu die Bedienungsanleitung. Telepass SpA - Via Laurentina, 449 - 00142 Rom (RM) - Italien - www.telepass.com TLP-K1-Inst-1.1_A4_DE-0123 © 2023...
Seite 19: Technische Daten
(26 dBm ±3 dB), Klasse 4 (33 dBm ±2 dB), Klasse E2 (27 dBm ±3 dB) 3G (WDCSMA): Klasse 3 (24 dBm +1/-3 dB) LTE (FDD): Klasse 3 (23 dBm ±2 dB) DSRC: -14 dBm GNSS-Standards GPS, Galileo, GLONASS Telepass SpA - Via Laurentina, 449 - 00142 Rom (RM) - Italien - www.telepass.com TLP-K1-Inst-1.1_A4_DE-0123 © 2023...
Seite 20: Informacje Na Temat Bezpieczeństwa
Jeżeli z urządzenia wydobywa się płyn, nie dotykać go gołymi rękoma i niezwłocznie skontaktować się z pomocą techniczną, aby zwrócić je do dostawcy usługi. Telepass SpA - Via Laurentina, 449 - 00142 Rzym (RM) - Włochy - www.telepass.com TLP-K1-Inst-1.1_A4_PL-0123 © 2023...
Seite 21
Urządzenie przekazuje informacje użytkownikowi za pomocą komunikatów głosowych i sygnałów dźwiękowych. Urządzenie należy podłączyć do instalacji elektrycznej pojazdu zgodnie z zaleceniami niniejszej instrukcji. Telepass SpA - Via Laurentina, 449 - 00142 Rzym (RM) - Włochy - www.telepass.com TLP-K1-Inst-1.1_A4_PL-0123 © 2023...
Seite 22: Instalacja Urządzenia
F - Przycisk konfiguracji (nieużywany) stanowi przeszkody dla kierowcy w czasie jazdy. G - Głośnik H - Gniazdo zasilające Potrzebne materiały Dwa bezpieczniki 3A z oprawkami. Telepass SpA - Via Laurentina, 449 - 00142 Rzym (RM) - Włochy - www.telepass.com TLP-K1-Inst-1.1_A4_PL-0123 © 2023...
Seite 23
Wyłączyć tablicę wskaźników: zielona kontrolka LED stanu miga trzy razy, a następnie gaśnie. Szczegółowe informacje na temat kontrolek LED i wysyłanych komunikatów można znaleźć w załączonej Instrukcja obsługi. Telepass SpA - Via Laurentina, 449 - 00142 Rzym (RM) - Włochy - www.telepass.com TLP-K1-Inst-1.1_A4_PL-0123 © 2023...
Seite 24: Konserwacja I Utylizacja
Przed użyciem urządzenia do elektronicznego poboru opłat działanie wysokich temperatur. należy je skonfigurować i ewentualnie ustawić liczbę osi i masę pojazdu. Zapoznać się z Instrukcja obsługi. Telepass SpA - Via Laurentina, 449 - 00142 Rzym (RM) - Włochy - www.telepass.com TLP-K1-Inst-1.1_A4_PL-0123 © 2023...
Seite 25: Dane Techniczne
3G (WDCSMA): Klasa 3 (24 dBm +1/-3 dB) LTE (FDD): Klasa 3 (23 dBm ±2 dB) DSRC: -14 dBm Standard GNSS GPS, Galileo, GLONASS Telepass SpA - Via Laurentina, 449 - 00142 Rzym (RM) - Włochy - www.telepass.com TLP-K1-Inst-1.1_A4_PL-0123 © 2023...
