The Self Test Tool
The Self Test Tool (self-test-tool.telepass.com) is an online
resource that Telepass offers installers and allows the following
activities to be performed:
Download this manual.
l
Watch a video that shows how to install and monitor the
l
device.
Follow an installation and check wizard.
l
To use this tool, you must register with your cell phone number
and email address.
The installation wizard includes the following operations:
entering the ID code for the device (OBU ID) and the plate
l
number for the vehicle on which it is installed
execution of the electric connections to the vehicle and
l
positioning of the device in the passenger cabin
automatic configuration of the device
l
check the correct configuration or possible error notification
l
It is mandatory to follow the wizard on the Self Test Tool
before departing. If not successful, you will not be able to
use the device.
If the installation and configuration of the device are not
correct, it is impossible to travel on any toll roads.
Telepass SpA - Via Laurentina, 449 - 00142 Rome (RM) - Italy - www.telepass.com
TLP-K1-Inst-1.1_A4_EN-0123 © 2023

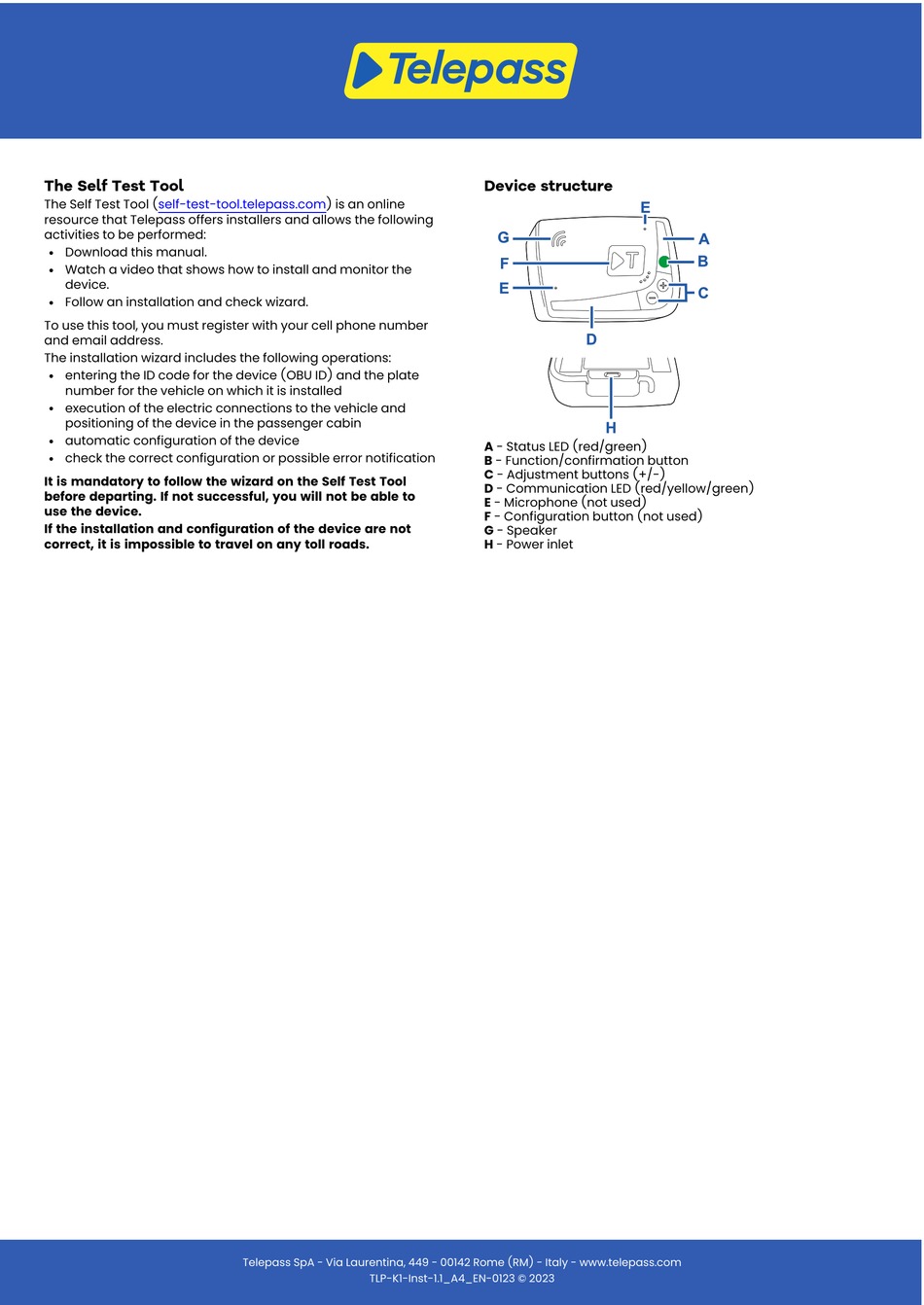

Device structure

A - Status LED (red/green)
B - Function/confirmation button
C - Adjustment buttons (+/-)
D - Communication LED (red/yellow/green)
E - Microphone (not used)
F - Configuration button (not used)
G - Speaker
H - Power inlet
