Attaching a Monitor Arm to M/Connect
M2.1/M8.1/m10 Monitor Arm
Insert Arm into M/Connect Base
1
Refer to monitor arm instructions to setup smart stop
ring
2

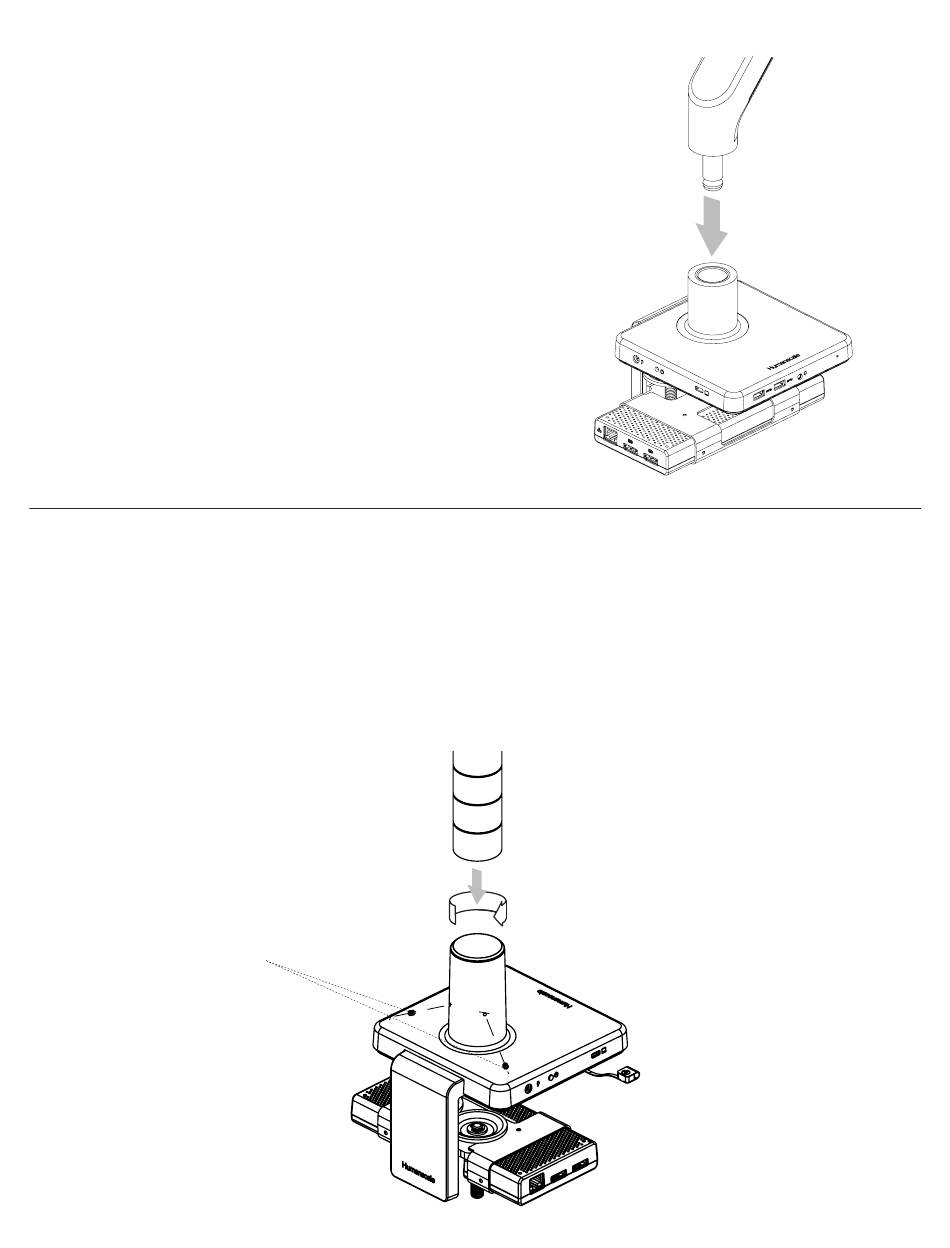

Insert Monitor Arm into the Base stem (fig. K) until it
clicks into place
3
Refer to monitor arm instructions to continue installation
M/Flex Monitor Arm
Insert M/Flex Post into M/Connect Base
1
Back out the two set screws installed in stem (fig. L)
2
Insert M/Flex post (fig. M) into Base and twist onto internal bolt until fully seated
3
Tighten both set screws evenly (fig. L) to secure post using hex key
