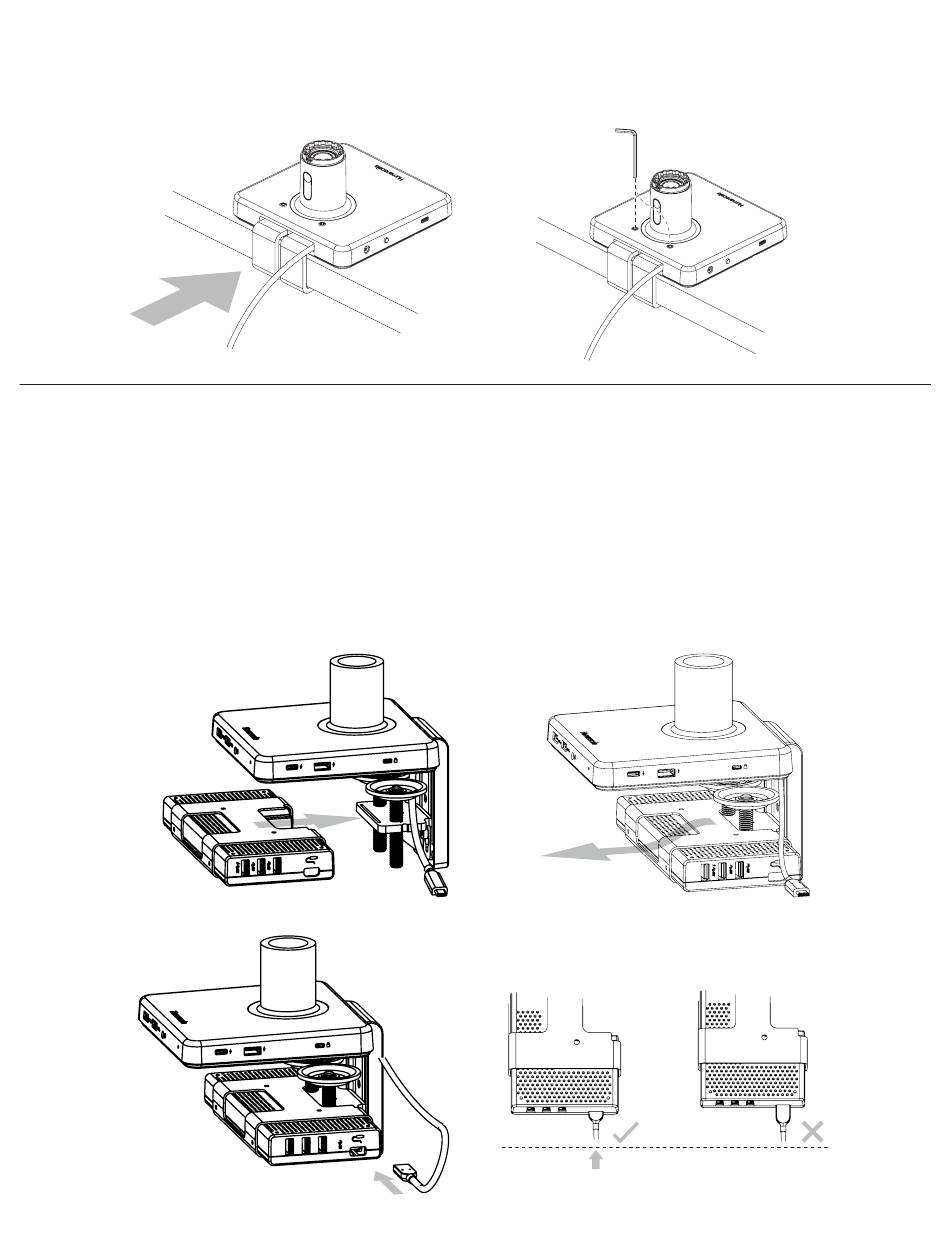

Attach M/Connect onto table edge
1
Slide unit with loosely mounted bracket against work surface edge
2
Tighten both set screws evenly into bracket to a snug fit (fig. E)
Attaching and Removing Dock
1
To attach dock, slide onto the clamp bracket (fig. F) until it snaps in place
2
To remove dock, pull away from clamp while applying a downward force near front (Fig. G)
3
nsert USB-C cable head from hub into dock, ensuring the plug orientation matches the socket (fig. H)
I
4
The cable must be fully inserted for the unit to function (Fig. I)
③
F
⑤
①
H
②
G
⑥
I
E
④
⑦
