Vertical Alignment - humanscale M/Connect 2 Bedienungsanleitung

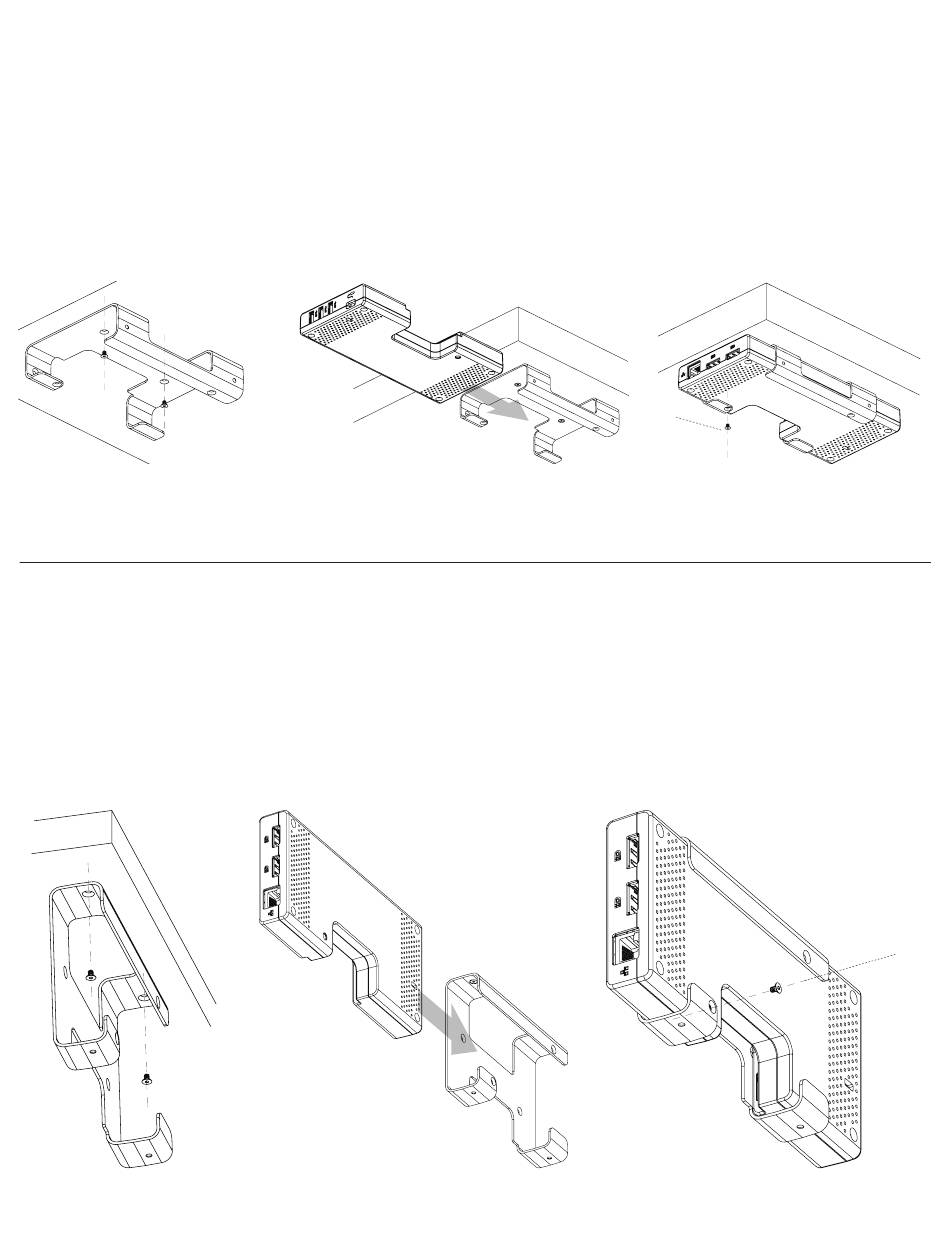

Mounting The M/Connect Dock
Horizontal Alignment
1
Screw bracket (fig. R) into desk underside and slide dock in
2
Attach screw (fig. S) through bracket into dock to fully secure
①
R

Vertical Alignment

1
Screw bracket (fig. T) into desk underside and slide dock in
2
Attach screw (fig. U) through bracket into dock
④
T
②
⑤
③
S
⑥
U
