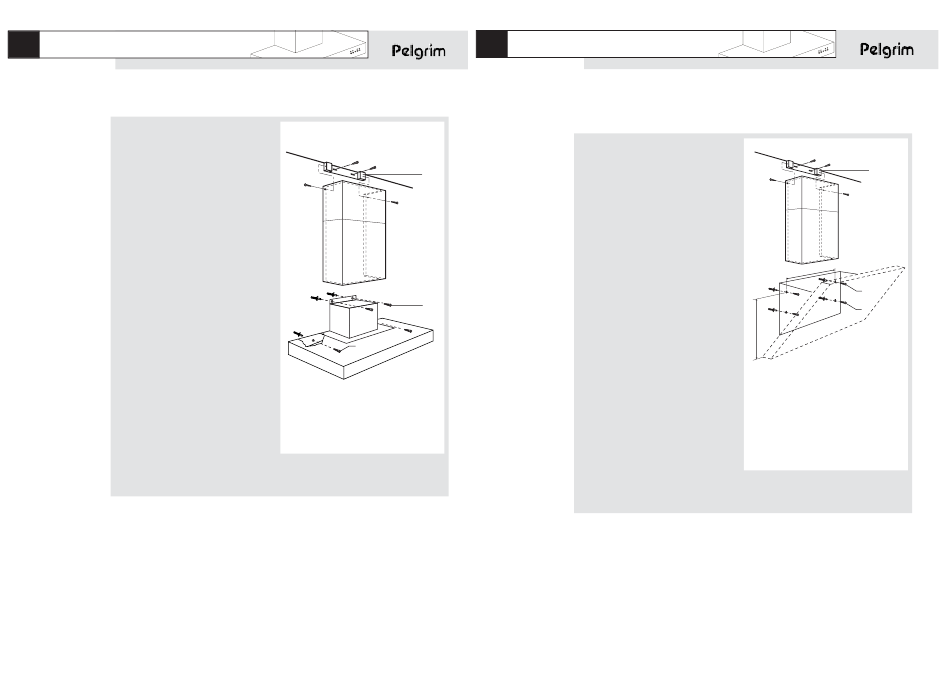

Mounting the canopy hood (RSK986/RSK975)
■ First determine the position and
distance with regard to the
mounting brackets. Mark the holes
that must be drilled and drill the
holes.
■ Fix brackets (A) to the wall with the
plugs and screws provided.
■ Screw the hood to the wall with the
plugs and screws (B) provided.
■ On the back of the canopy hood are
2 holes with a diameter of 8 mm for
the 2 plugs/ screws (C) to fix the
hood.
■ Connect the duct.
■ Fit the short cylinder to the
mounting bracket (A) and pull the
long cylinder to the top of the
canopy hood.
Screw the chimney in place from the inside of the canopy hood (remove
■
filters).
Installation of the extractor hood can be simplified by removing the black filter
frame. To do so, unscrew the fastening screws. Once installation is complete,
the filter frame should be replaced.
All manuals and user guides at all-guides.com
27
A
B
C

Mounting the canopy hood

(RSK981/RSK990/RSK995/RSK999)
First determine the position and
■
distance with regard to the
mounting brackets. Mark the holes
that must be drilled and drill the
holes.
■ Fix brackets (A) to the wall with the
plugs and screws provided.
■ Screw the hood to the wall with the
plugs and screws (B) provided.
■ On the back of the canopy hood are
2 holes with a diameter of 8 mm for
401
the 2 plugs/ screws (C) to fix the
hood.
Connect the duct.
■
The minimum free space beside
Fit the short cylinder to the a cooking ring is 550 mm
■
mounting bracket (A) and pull the (applies to these models only).
long cylinder to the top of the
canopy hood.
■ Screw the chimney in place from the
inside of the canopy hood (remove filters).
A
450
B
C
