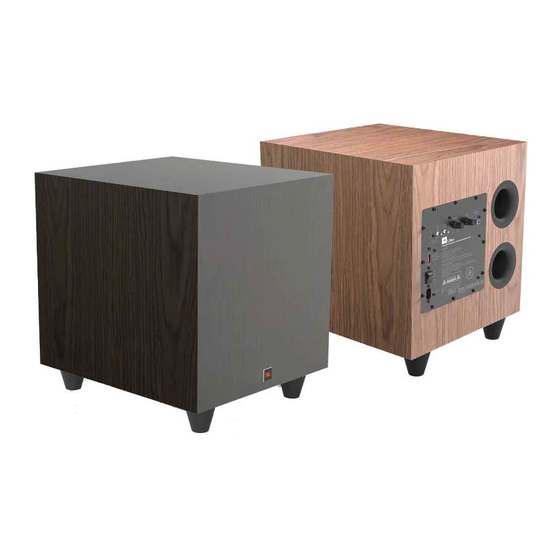

JBL L10CS Kurzanleitung

L10CS 10-inch (250mm) 250W RMS Powered
Subwoofer
Quick Start Guide
Overview
For more information on the set-up and operation of this product refer to the
product page on the jbl.com/specialty-audio/
be required feel free to contact customer support at the numbers below.
Inside the US and Canada:
Outside the US and Canada:
Placement and Positioning
The goal of proper placement is to achieve a smooth, extended bass
response. We strongly recommend that you experiment with placement
before choosing a final location for your subwoofer.
● Place next to a wall to increase the amount of deep bass.
● Placing in a corner (1) delivers more deep bass.
Note: Placing in a corner (1) also activates room modes which can make the
bass response less smooth.
● Placing the subwoofer along the same plane as the left and right
speakers (2) produces the best acoustic integration with the main
speakers.
● Placing the subwoofer close to the listening position (3) helps remove
poor bass response caused by room variations.
The best way to determine the location for the subwoofer is by temporarily
placing it in the listening position and playing music with strong bass and
midbass content. Then listen while moving around to the various available
positions for the subwoofer in the room. Putting your ears where the
subwoofer would be placed is best. The best subwoofer location is the one
where you perceive the best bass performance and midbass blend, due to
acoustic reciprocity. Place the subwoofer in that location.
After finding the location that works best, adjust the Crossover, Volume, and
Polarity to fine tune the output of the subwoofer even further.
Wiring and Connections
Single Sub/LFE Out L10cs
POLARI TY POLARI TY
L10cs L10cs
Harman International Industries, Incorporated. Harman International Industries, Incorporated.
8500 Balboa Blvd, Northridge CA 91329 United States. 8500 Balboa Blvd, Northridge CA 91329 United States.
Harman International Industries, Incorporated. Harman International Industries, Incorporated.
European Representative: European Representative:
EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands. EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.
UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire,
HP3 9TD, United Kingdom. HP3 9TD, United Kingdom.
Designed and Engineered in Northridge CA USA Designed and Engineered in Northridge CA USA
Made in China Made in China
L10CS 10-inch (250mm) 250W RMS Powered Subwoofer Quick Start Guide | Rev 1.0 20221129 | Part No. 950-0632-001
©2022 Harman International | Features, Specifications, and Appearance subject to change without notice.
website. Should further assistance
+1 888.691.4171
+44 1707 668 012
POLARI TY
L10cs
Harman International Industries, Incorporated.
8500 Balboa Blvd, Northridge CA 91329 United States.
European Representative: Harman International Industries, Incorporated.
EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.
UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire,
HP3 9TD, United Kingdom.
Designed and Engineered in Northridge CA USA
Made in China
CAUTION AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
定格電圧:
定格消費電力:
定格周波数:
Box Contents
1x L10cs Classic Powered Subwoofer
1x Region Specific Power Cord
1x Safety Sheet
1x Quick Start Guide (This Document)
1
Left
Left
Listening Position
3
Stereo Pre Amp Out L10cs
Pre Amp
POLARI TY POLARI TY OUTPUTS
L R
L10cs L10cs
Harman International Industries, Incorporated. Harman International Industries, Incorporated.
8500 Balboa Blvd, Northridge CA 91329 United States. 8500 Balboa Blvd, Northridge CA 91329 United States.
Harman International Industries, Incorporated. Harman International Industries, Incorporated.
European Representative: European Representative:
EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands. EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.
UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire, UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire,
HP3 9TD, United Kingdom. HP3 9TD, United Kingdom.
Designed and Engineered in Northridge CA USA Designed and Engineered in Northridge CA USA
Made in China Made in China
jbl.com/specialty-audio/
All in One Music
Right
System
POLARI TY
L10cs
Harman International Industries, Incorporated.
8500 Balboa Blvd, Northridge CA 91329 United States.
European Representative: Harman International Industries, Incorporated.
EMEA Liaison Office, Danzigerkade 16G, 1013 AP Amsterdam, The Netherlands.
UK Business Address: Ground Floor, Westside 2, London Road, Apsley, Hemel Hempstead, Hertfordshire,
HP3 9TD, United Kingdom.
Designed and Engineered in Northridge CA USA
Made in China
CAUTION AVIS
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR
定格電圧:
定格消費電力:
定格周波数:
EN
2
Pg 1 of 2
