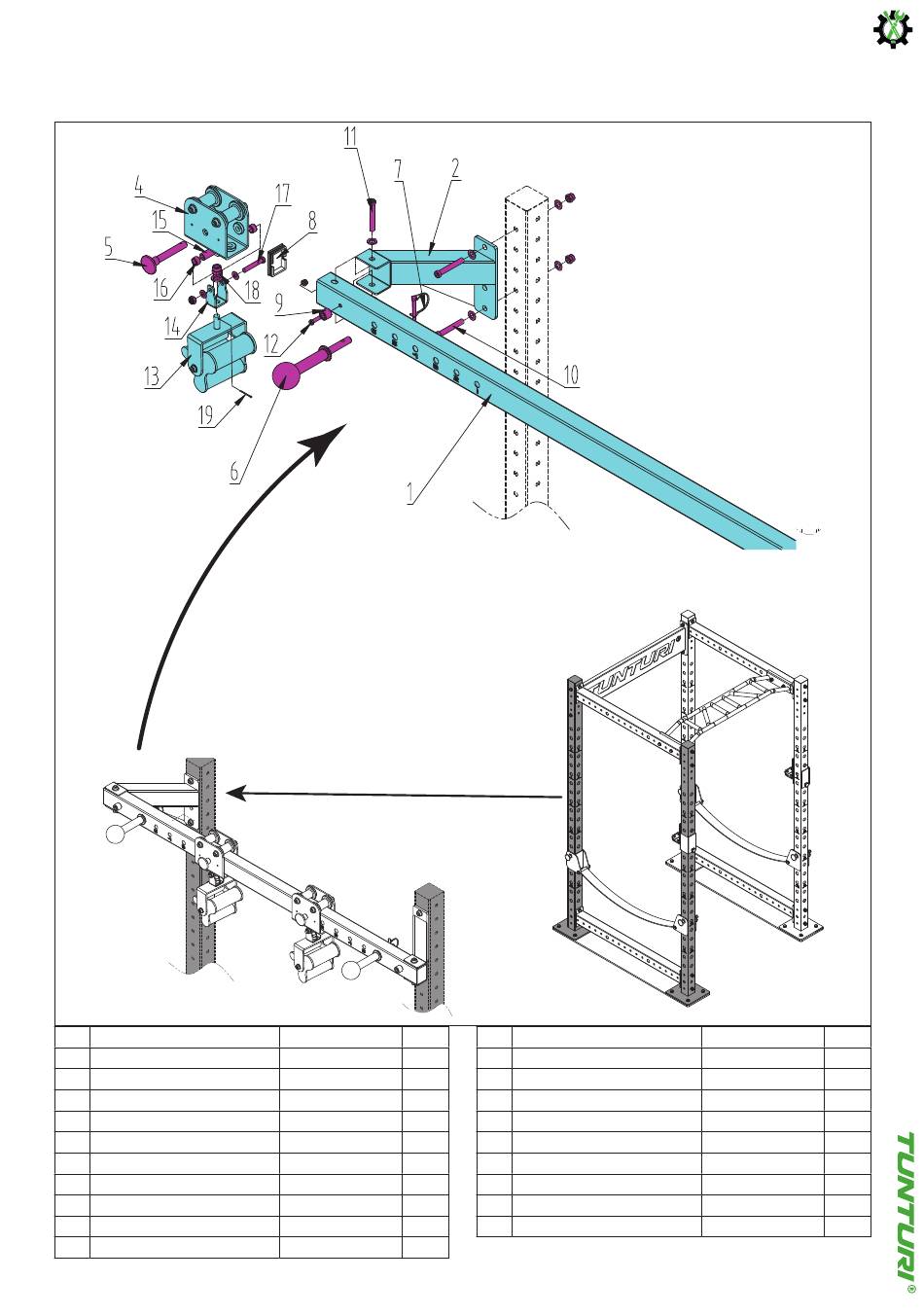

A-01
NO. Description
1 Rectangle tube
2 Left support
3 Right support
4 Pulley component
5 Insert pin
6 Ball heag gripper
7 Lock pin
8 Rectangle plug
9 Buffer
10 Hex. socket bolt/ washer/ Lock nut
Specs Qty
1
1
1
2
2
2
2
2
2
M12x110/ Ø12/ M12 4_8_4
3
RC20 - Multigr Pull Sliders
NO. Description
11 Hex. socket bolt/ washer/ Lock nut
12 Hex. socket bolt/ Lock nut
13 Handle component
14 Connection part
15 Round tube
16 Bushing
17 Hex. socket bolt/ washer/ Lock nut
18 Locknut/ washer
19 Cotter pin
Specs Qty
M12x95/ Ø12/ M12 2_4_2
M8x25/ M8 2_2
2
2
2
4
M10x60/ Ø10/ M10 2_4_2
M14/ Ø14 2
2
