First Steps - LD Systems XECI Bedienungsanleitung

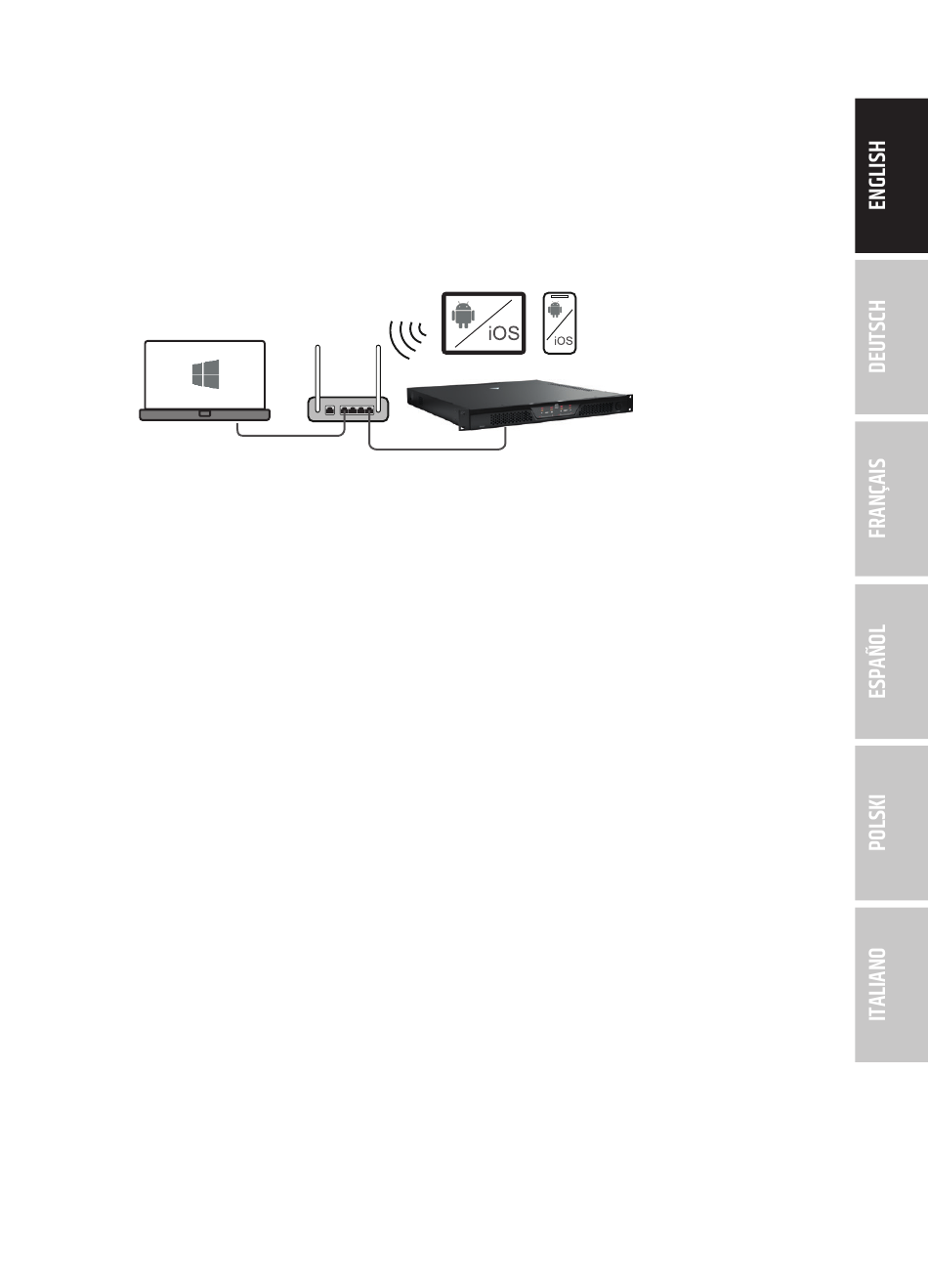

PREREQUISITES FOR OPERATION
• Computer with QUESTRA software installed
• Network interface (router, switch) with activated multicast traffic
(activate IGMP protocol).
• Ethernet cable. Use a standard RJ45 Ethernet cable (Cat 5e or better)
for all wired connections.

FIRST STEPS

The XECI modules are delivered with a pre-configured static IP address
(192.168.0.192) as standard. To be able to recognise the unit with the Questra
software, please make sure that the IP settings of the computer on which the
Questra software is installed are configured in the same network range as the
XECI modules. See notes below.
• IP range : 192.168.0.X/24 (where X can be any value between 1 and 254,
except 192 which is already used by default by the XECI modules)
• Network mask : 255.255.255.0
7
