SCOPE OF DELIVERY

Remove the product from the packaging and remove all packaging material.
Please check that the delivery is complete and intact and please notify your
distributor immediately after purchase if the delivery is not complete or
damaged. The scope of delivery of the product includes:
• 1x XECI extension module
• Assembly instructions

ASSEMBLY

1. Disconnect the power amplifier completely from the mains
(pull out the mains plug)!

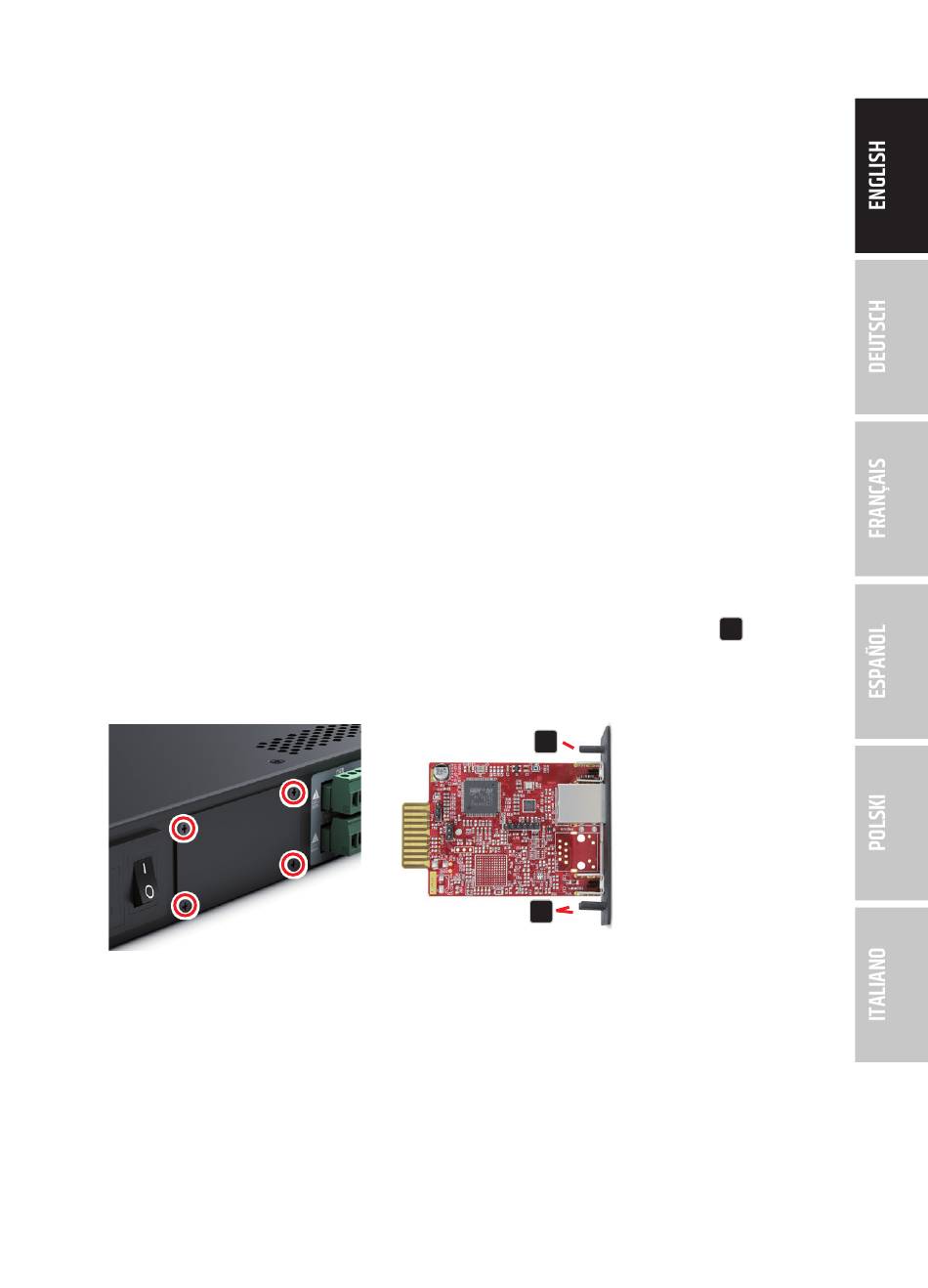

2. Loosen and remove the four screws from the cover of the expansion slot
using a suitable tool (see markings in the illustration). Keep the cover for
later conversion.
3. Slide the expansion module into the expansion slot, making sure that the
contact strip of the module slides correctly into the connection strip of the
power amplifier. Asymmetrically mounted guide pins on the module's plate
ensure that the module cannot be installed the wrong way round
4. Now screw the module to the power amplifier housing using the screws
previously loosened from the expansion slot cover.
