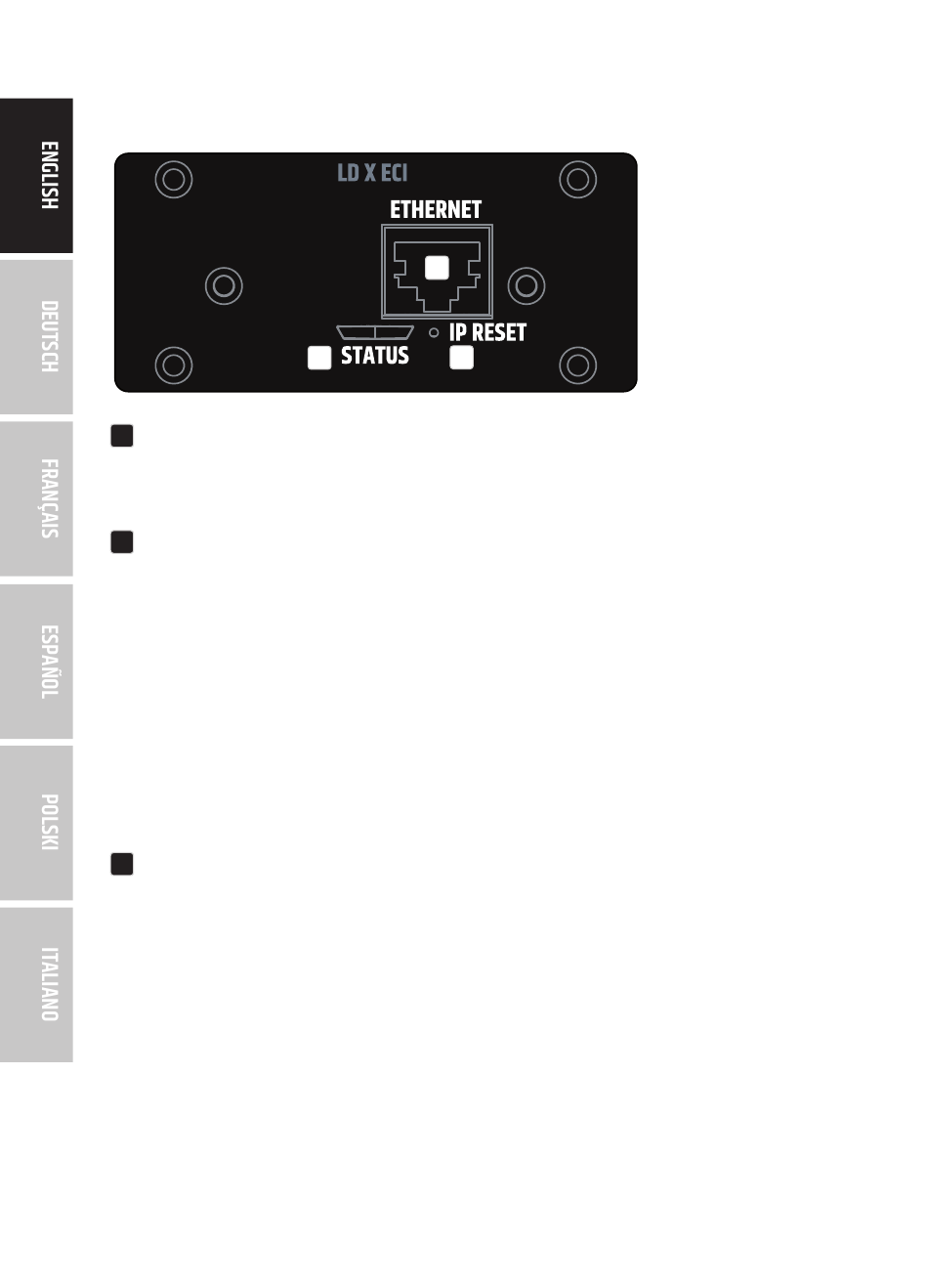

CONNECTIONS, CONTROLS AND INDICATORS

ETHERNET
1
Ethernet interface for controlling the installation amplifier via the free
QUESTRA software.
2 STATUS
The status LED provides information about the internal integration between
the card and the main board in the IPA power amplifier (firmware compatibility,
internal communication problems):
• White flashing during start-up. The unit is loading the data for IPA.
• Permanently white: The network stack in the card is ready – The IP settings
have been configured properly.
• Permanent red – Firmware is not compatible with motherboard, problems with
network stack.
• White flashing (slow/fast) during IP reset procedure.
IP RESET
3
Long press activates the IP reset procedure. Initially, the status LED flashes
slowly in white and when the button is pressed for 5 seconds, the status LED
flashes quickly to indicate that the IP reset procedure will be carried out after
the button is released.

NETWORK CONNECTION

LD Systems' XECI module enables remote control of compatible devices, such
as IPA series amplifiers, over the network. Once the XECI module is built into
a device, it can be connected to a network infrastructure and controlled via
a computer running LD Systems QUESTRA software.
