Installation Steps with CPL Filter

1
CPL filter
3

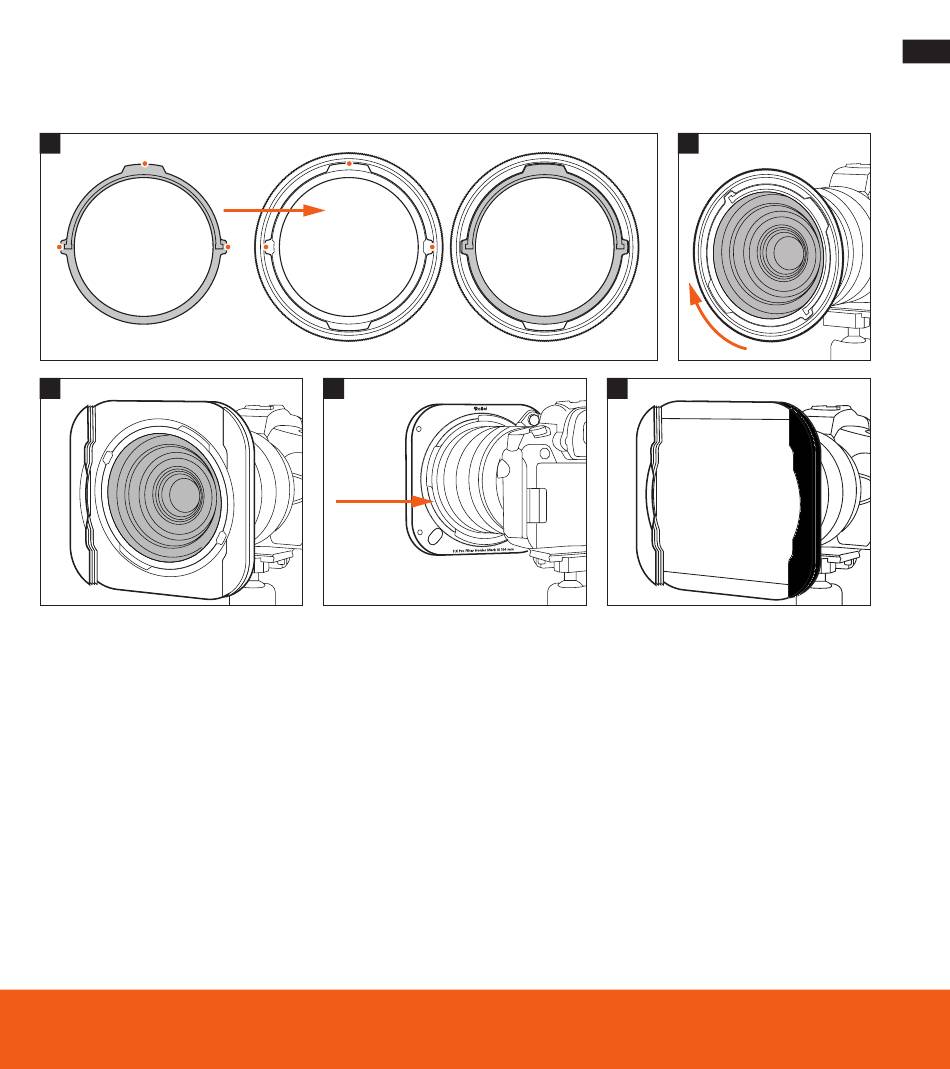

1. Place the CPL filter in the base ring of the filter
holder. Make sure that it is inserted according to
the recesses (see orange marks in illustration of
installation step 1) and fits well. Due to the built-in
magnets, the CPL filter is held securely.
2. Screw the base ring with the CPL filter onto the
camera lens. Use an adapter ring if necessary.
Camera and ND filter not included.
Base ring
4
Rotary
wheel
3. Place the filter holder on the base ring. Hook it on
one side and press the orange easy lock button on
the other side. The filter holder locks onto the base
ring.
4. Use the rotary wheel to set the required alignment
for the CPL filter.
5. Align the CPL filter first. Only then push the rectan-
gular filter(s) into the filter holder.
