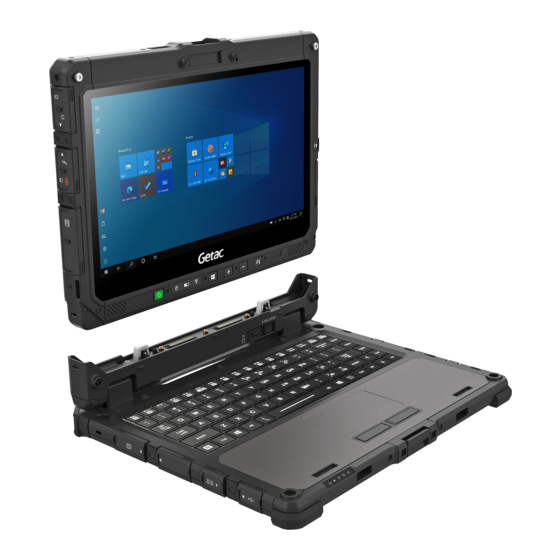

K120 Keyboard Dock Quick Guide Kurzanleitung Guía rápida Guide rapide Краткое руководство Guida rapida 快速指南 快速指南 Rugged Mobile Computing Solutions...
Seite 2
English ......... 1 Deutsch ........4 Español ........7 Français ........10 Italiano ........13 Pусский ........16 简体中文 ........19 繁體中文 ........24 NOTE: The information in this manual is subject to change without notice. HINWEIS: Änderungen der Informationen in diesem Handbuch sind vorbehalten. NOTA: La información de este manual está...
Seite 3
Make sure the cover of the power connector on K120 Tablet is closed and locked. Depending on the desired usage mode, have K120 Tablet face inwards or outwards. Align and put K120 Tablet down on the holder. The release latch should click into place. Notebook Mode...
To open: Pry open the cover latch ( Lift up the display (i.e. K120 Tablet) ( CAUTION: There is a limit to the tilting angle. Do not go beyond the limit (120 degrees). While using the touchscreen function in Notebook Mode, extend the handle to stabilize the Keyboard Dock.
Seite 5
USB 3.2 port USB 3.2 port RJ45 connector Power connector Kensington lock DisplayPort connector RS-232 serial connector Tri antenna passthrough (optional) Docking connectors For more information, refer to User Manual (in PDF format) on K120 Windows desktop or Driver Disc.
Achten Sie darauf, dass die Abdeckung des Netzanschlusses am K120-Tablet geschlossen und verriegelt ist. Wenden Sie das K120-Tablet je nach gewünschtem Nutzungsmodus nach innen oder außen. Richten Sie das K120-Tablet aus und setzen Sie es in den Halter. Der Freigaberiegel sollte einrasten. Notebook-Modus Umwandlungs-/Präsentations-Modus...
K120-Tablet aus dem Halter ( Anzeige öffnen und schließen Öffnen: Öffnen Sie den Abdeckungsriegel ( Heben Sie die Anzeige (d. h. das K120- Tablet) an ( ACHTUNG: Der Neigungswinkel ist begrenzt. Überschreiten Sie diese Grenze (120 Grad) nicht.
Hardwarekomponenten identifizieren Griff Sicherheitsverriegelung Tablet-Freigaberiegel Tastatur Touchpad Geräteanzeige Riegel für die obere Abdeckung USB-3.2-Anschluss USB-3.2-Anschluss Kensington- RJ45-Anschluss Netzanschluss Schloss DisplayPort-Anschluss RS-232 Serieller Anschluss Tri-Antennen-Durchleitung (Option) Dockinganschlüsse Weitere Informationen finden Sie in der Bedienungsanleitung (im PDF-Format) auf dem K120-Windows-Desktop oder der Treiber-Disc.
Seite 9
Introducción Esta base de acoplamiento para teclado proporciona funciones de teclado y de panel táctil a la K120. Con la base de acoplamiento para teclado, puede utilizar la K120 en varios modos de uso. Modo Tableta Modo Convertible* Modo Equipo portátil Modo Presentación*...
Seite 10
Deslice el seguro del pestillo de liberación hacia abajo hasta la posición de desbloqueo. 2. Empuje el pestillo de liberación hacia la derecha y, mientras sujeta dicho pestillo ), levante la tableta K120 para sacarla del soporte ( Abrir y cerrar la pantalla Para abrir: Abra el pestillo de la tapa.
Seite 11
Paso a través con antena triple (opción) Conectores de base de acoplamiento Para obtener más información, consulte el manual del usuario (en formato PDF) que se encuentra en el escritorio de Windows o en el disco de controladores de la K120.
Présentation Cette station d’accueil clavier procure les fonctions de clavier et de pavé tactile pour le K120. Avec la station d’accueil clavier, vous pouvez vous servir du K120 selon différents modes d’utilisation. Mode tablette Mode convertible * Mode ordinateur portable Mode présentation *...
2. Poussez le loquet de dégagement vers la droite et, tout en tenant le loquet ( soulevez la tablette K120 pour la sortir du support ( Ouverture et fermeture de l’écran Pour ouvrir : Forcez pour ouvrir le loquet du couvercle ...
Seite 14
Connecteur Connecteur Kensington RJ45 d’alimentation Connecteur de RS-232 série Connecteur DisplayPort Intercommunication des trois antennes (optionnel) Connecteurs d’accueil Pour plus d’informations, consultez le manuel d’utilisation (au format PDF) sur le bureau Windows du K120 ou sur le disque des pilotes.
Seite 15
Introduzione Questo dock per tastiera fornisce funzioni per tastiera e touchpad al K120. Con il dock per tastiera, è possibile utilizzare il K120 in diverse modalità di utilizzo. Modalità tablet Modalità convertibile* Modalità notebook Modalità presentazione* * Non supportato se sono installate batterie ad alta capacità.
2. Premere il gancio di rilascio verso destra e, mentre si tiene il gancio ( ), estrarre il tablet K120 dal supporto ( Apertura e chiusura del display Per aprire: Far leva per aprire il gancio del coperchio ...
Seite 17
Porta USB 3.2 Porta USB 3.2 Connettore Connettore Kensington Lock alimentazione RJ45 Connettore Connettore seriale RS-232 DisplayPort Passthrough a tre antenne (opzionale) Connettori docking Per ulteriori informazioni, fare riferimento al Manuale dell’utente (in formato PDF) sul desktop Windows K120 o disco driver.
Seite 18
Удостоверьтесь, что крышка разъема питания на планшете K120 закрыта и заблокирована. В зависимости от требуемого режима использования разверните планшет K120 экраном внутрь или наружу. Совместите планшет K120 с держателем и установите в док-станцию. Фиксатор должен защелкнуться на месте. Режим ноутбук Режим трансформера/презентации...
Seite 19
положение. Отсоединение док-станции с клавиатурой Сдвиньте замок фиксатора вниз в разблокированное положение. 2. Сдвиньте фиксатор вправо и, удерживая фиксатор ( ), извлеките планшет K120 из держателя ( Открытие и закрытие дисплея Открытие дисплея: Оттяните фиксатор крышки ( ...
Порт USB 3.2 Замок Kensington Разъем RJ45 Разъем питания Разъем DisplayPort Последовательный порт Сквозной порт для трех антенн (опция) Док-разъемы Дополнительные сведения см. в Руководстве пользователя (в формате PDF) на Рабочем столе Windows на планшете K120 или на диске с драйверами.
Seite 28
認識硬體元件 提手 安全鎖 平板電腦釋放閂 鍵盤 觸控板 指示燈 上蓋門閂 USB 3.2 埠 USB 3.2 埠 RJ45 接頭 電源接頭 防盜鎖孔 DisplayPort 接頭 RS-232 序列埠 三合⼀天線直通式接頭(選配) 底座接頭 繁 體 中 文 更多資訊請參閱放置於 K120 電腦 Windows 桌面或 Driver (驅動程式)光碟的使用手冊(PDF 格式)。...
Seite 29
限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱:擴充鍵盤,型號(型式):K120 擴充鍵盤 Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 鉛 汞 鎘 六價鉻 多溴聯苯 多溴二苯醚 Unit Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb)
Seite 31
