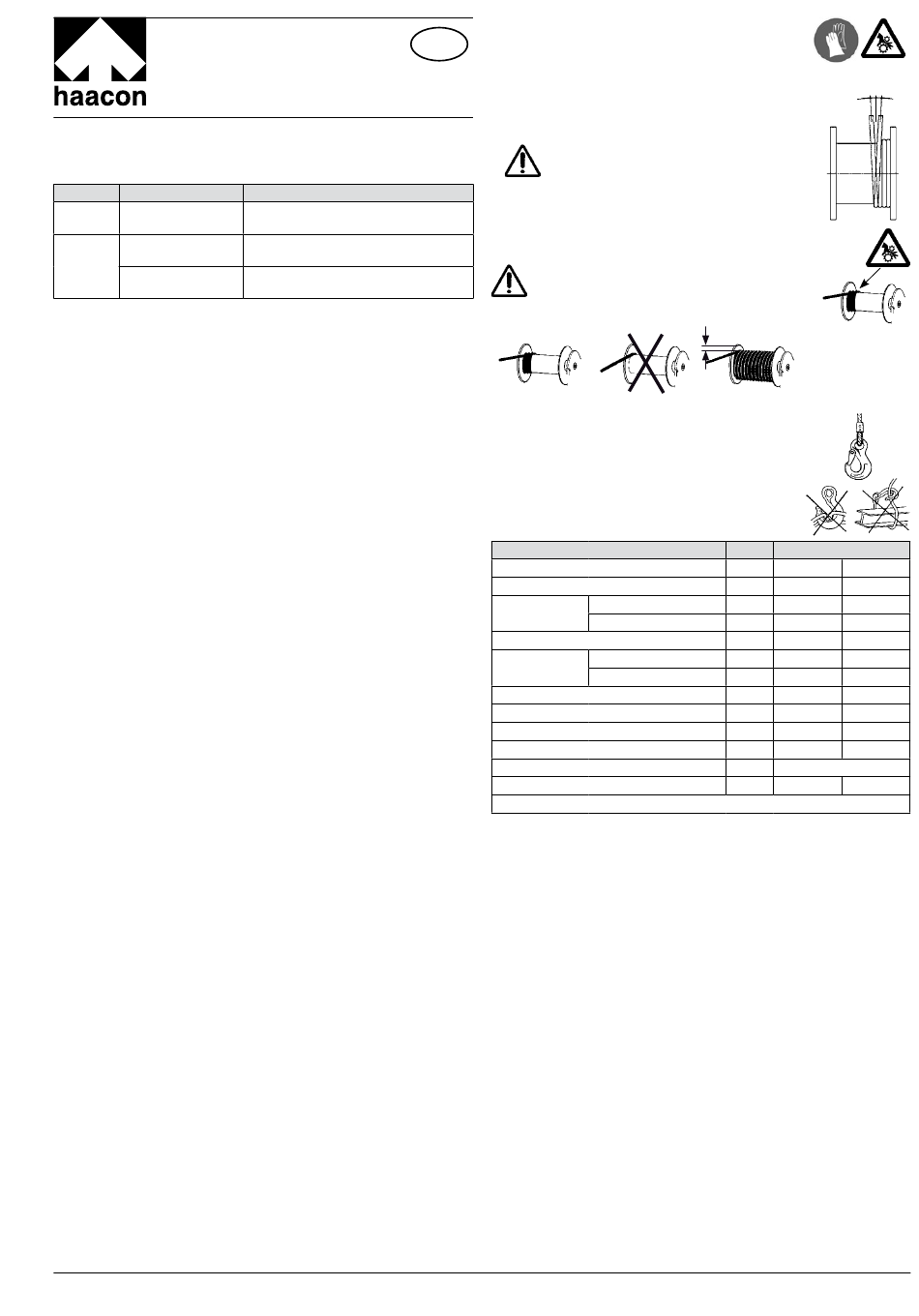

OPERATING INSTRUCTIONS
(Translation)
TANGO rope winch
Type
WV 300/500
WE 300/500
1. User groUps
Duties
Operator Operation,
visual inspection
Special-
Assembly, disassembly,
ist per-
repair, maintenance
sonnel
Tests
2. safety instrUctions
appropriate use
Operate the equipment in accordance with the information in these
operating instructions.
– Only use to lift, lower and pull freely-movable loads.
– Only use when in perfect working order.
– Only allow to be operated by personnel instructed on how to do so.
safety-conscious work
– First read the operating instructions.
– Always be conscious of safety and hazards when working.
– Observe lifting device and load during all movements.
– Immediately report any damage or defects to the person in charge.
Repair equipment first before continuing work!
– Do not leave the load suspended without supervision.
– Transport device protected against impacts and shocks, falling over
or toppling.
the following are not allowed:
– Overload (–> technical data, type plate, payload plate)
– Mechanical propulsion.
– Impacts, blows.
– carriage persons.
– People are not allowed to stand neither in, nor on, nor under the
raised load without additional support.
– Long lowering operations.
– Using rope made of other material than steel, as well as plastic
casing.
Use exclusions
– Not suitable for permanent operation and vibration stress.
– Not approved for use as builders' hoist (DGUV-R 100-500-2.30).
– Not approved for use on stages or in studios (DGUV-V 17).
– Not approved for use as a retractable transportation device for per-
sonnel (DGUV-R 101-005).
– Not approved for use in explosive areas/environments.
– Not suitable for aggressive environments.
– Not suitable for lifting hazardous loads.
organisational measures
– Ensure that these operating instructions are always at hand.
– Ensure that only trained personnel work with the equipment.
– Check at regular intervals whether it is being used in a safety and
hazard conscious manner.
installation, service and repair
Only by specialist personnel!
Only use original spare parts for repairs.
Do not modify or alter safety-relevant parts!
Additional attachments must not impact safety.
further regulations to be observed are
– German Industrial Health and Safety Ordinance (BetrSichV).
– Country-specific regulations.
– German Accident prevention regulations (DGUV-V 54).
Load
– Do not leave suspended without supervision.
– Do not allow to swing.
– Do not allow to fall in the rope.
094148_v_gb_hseilw_s
haacon hebetechnik gmbh – Telephone +49 (0) 9375 - 84-0 – Fax +49 (0) 9375 - 8466
gB
KV 300/500
KE 300/500
Qualifications
Instruction by means of the operating
instructions; Authorised person
Mechanic
Authorised person per TRBS-1203
(Technical expert)
rope
– Compliant with EN 12385-1 and EN 12385-4 and the
technical data
– Maintain rope deviation angle
non-rotating rope ≤ 3° (standard)
rotation-resistant rope ≤ 1.5°
– Use a rotation-resistant rope for unguided loads.
This can reduce the resting period of the rope (drive
mechanism group).
–
Wind up the wire rope under pretension, e.g.
fully wind up the rope and adjust the rope
length to the lift.
prohibited:
Touching the drum and rope intake during
operation!
The length of the rope is correct if:
> 3
Lifting equipment
– Ensure sufficient load-bearing capacity.
– Only use load hooks with a safety flap.
– Use the approved load hooks with rope thimbles and
rope clip.
– Attach the load properly.
– Do not use the winch rope to secure the load.
3. technicaL Data
type
Nominal load
Minimum load
Rope pulling force
First layer
Rope take-up
Max. number of layers
Rope pulling force
Final layer
Rope take-up
Rope diameter
Drive mechanism group1)
Minimum breaking force
Crank force
Working temperature
Weight without rope
1) Drive mechanism group acc. to DIN 15020 and FEM 9.511
Modifications of the design and execution reserved.
Special design! Pay attention to the serial number plate and the drawing.
4. configUration
Drum winch with direct drive or via a single-stage gearbox. The load is
held fast in each position by a load pressure brake.
5. instaLLation
– Attachment structures should be designed for the max. force
– Ensure that the mounting surfaces are flat
– Secure wall winches with three M12 screws (strength class at least
8.8), and bracket winches with four screws, each with a washer
– Tighten and secure the screws evenly
– Provide adequate space for the crank.
≤3°
≤3°
≤1,5°
≤1,5°
> 1.5 x rope Ø
WV/We/KV/Ke
kg
300
500
kg
30
50
kg
300
500
m
4,0
3,2
6
4
kg
185
340
m
29,6
15,9
mm
4
5
1Em
1Em
kN
9
15
N
160
200
° C
-20 ... +50
kg
5,0
5,0
1
