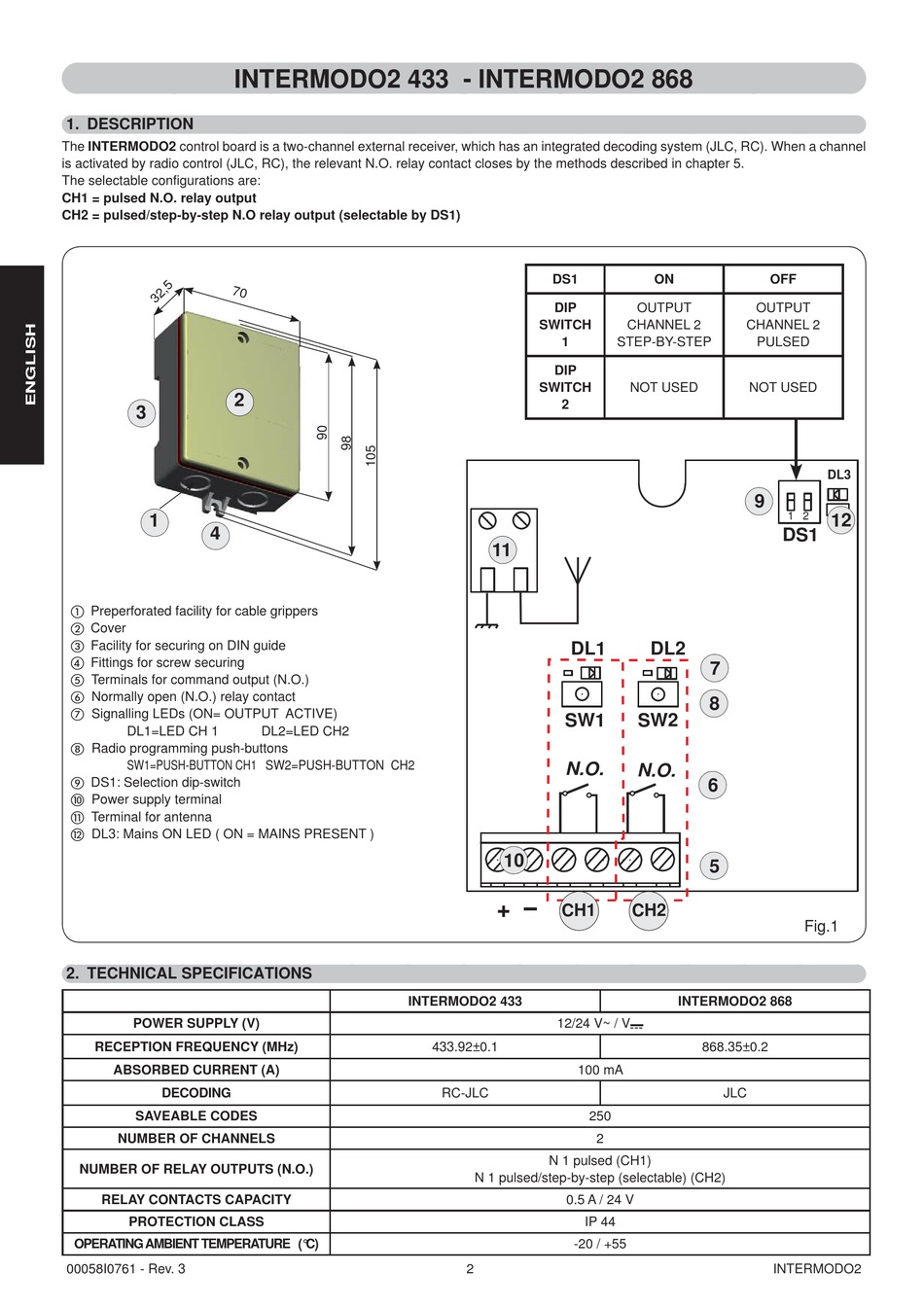

1. DESCRIPTION
The INTERMODO2 control board is a two-channel external receiver, which has an integrated decoding system (JLC, RC). When a channel
is activated by radio control (JLC, RC), the relevant N.O. relay contact closes by the methods described in chapter 5.
The selectable configurations are:
CH1 = pulsed N.O. relay output
CH2 = pulsed/step-by-step N.O relay output (selectable by DS1)
2
3
1
4
Preperforated facility for cable grippers
Cover
Facility for securing on DIN guide
Fittings for screw securing
Terminals for command output (N.O.)
Normally open (N.O.) relay contact
Signalling LEDs (ON= OUTPUT ACTIVE)
DL1=LED CH 1
Radio programming push-buttons
SW1=PUSH-BUTTON CH1 SW2=PUSH-BUTTON CH2
DS1: Selection dip-switch
Power supply terminal
Terminal for antenna
DL3: Mains ON LED ( ON = MAINS PRESENT )

2. TECHNICAL SPECIFICATIONS

POWER SUPPLY (V)
RECEPTION FREQUENCY (MHz)
ABSORBED CURRENT (A)
DECODING
SAVEABLE CODES
NUMBER OF CHANNELS
NUMBER OF RELAY OUTPUTS (N.O.)
RELAY CONTACTS CAPACITY
PROTECTION CLASS
OPERATING AMBIENT TEMPERATURE (°C)
00058I0761 - Rev. 3
DL2=LED CH2
INTERMODO2 433
433.92±0.1
DS1
DIP
SWITCH
1 STEP-BY-STEP
DIP
SWITCH
2
11
DL1
SW1
N.O.
10
+
CH1
12/24 V~ / V "
100 mA
RC-JLC
250
2
N 1 pulsed (CH1)
N 1 pulsed/step-by-step (selectable) (CH2)
0.5 A / 24 V
IP 44
-20 / +55
2
ON OFF
OUTPUT OUTPUT
CHANNEL 2 CHANNEL 2
PULSED
NOT USED NOT USED
9
1 2
DS1
DL2
7
8
SW2
N.O.
6
5
CH2
INTERMODO2 868
868.35±0.2
JLC
INTERMODO2
DL3
12
Fig.1
