Using the Quick Release Plate

13

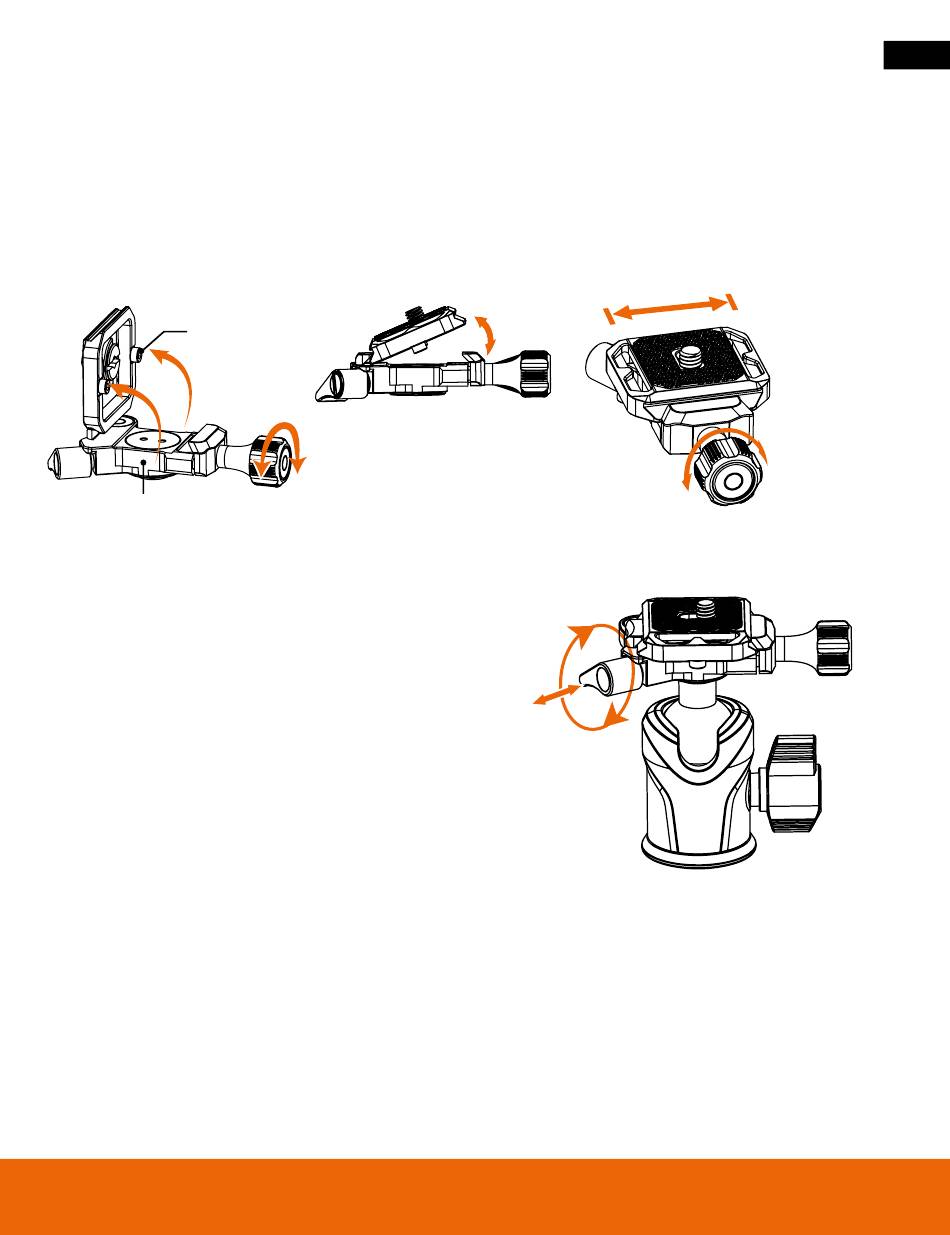

1 . Loosen the knob .
2 . Insert the interchangeable plate as shown in the pictures .
3 . Tilt the plate to insert one side first, then the other .
4 . Tighten the plate with the knob .
Stop
Stop
Anti-slip screw
Lock Lock
Tighten
Anti-slip groove Tighten

Adjusting the Panorama Knob

If the panorama lock knob [1] is locked but
crooked, simply pull it forward and adjust it
to the desired position .
