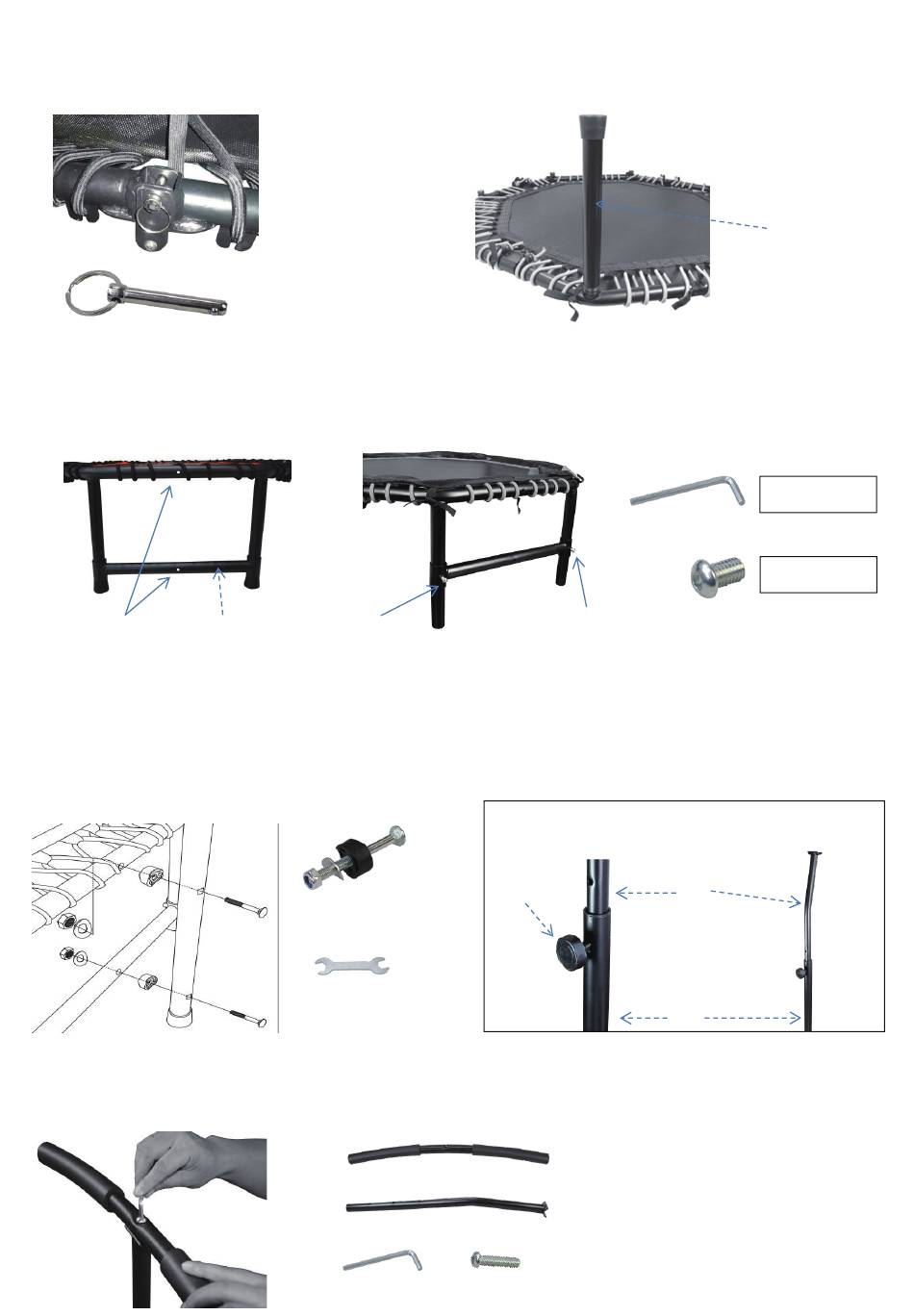

Step 3
Install the safety screws on the hinge (image4),
so the trampoline does not fold while in use .
Step 5
Attention: There is a hole at center of the frame tube, before installing the bottom connect bar, please find the hole first (as shown
A).
A
Please find out bottom bar(TR06), To install on two legs, first remove rubber "feet" from these 2 legs, as shown B and C, Fix the
bottom BarTR06 with Two TR12 screws with help of Allen Key TR08, then recap rubber feet.
Step 6
Now connect the trampoline frame (TR01) and Bottom Bar (TR06) with the handle bar OUTER (TR05) by two long screws (TR09)
Step 7
Then install the Top bar (TR03) and inner bar (TR04) by screws, connect all parts as the picture shows.
(image 4)
TR06
B
TR9 x 2pcs
TR7 x 1pcs
TR8
Step 4
With the trampoline now open and still upside
down, install all 8 legs
C
Insert TR04 into TR05, fix with TR10 Screw, 3 positions
for your choice
TR10
TR3
TR4
TR11
TR02
TR8 x 1pcs
TR12 x 2pcs
TR4
TR5
