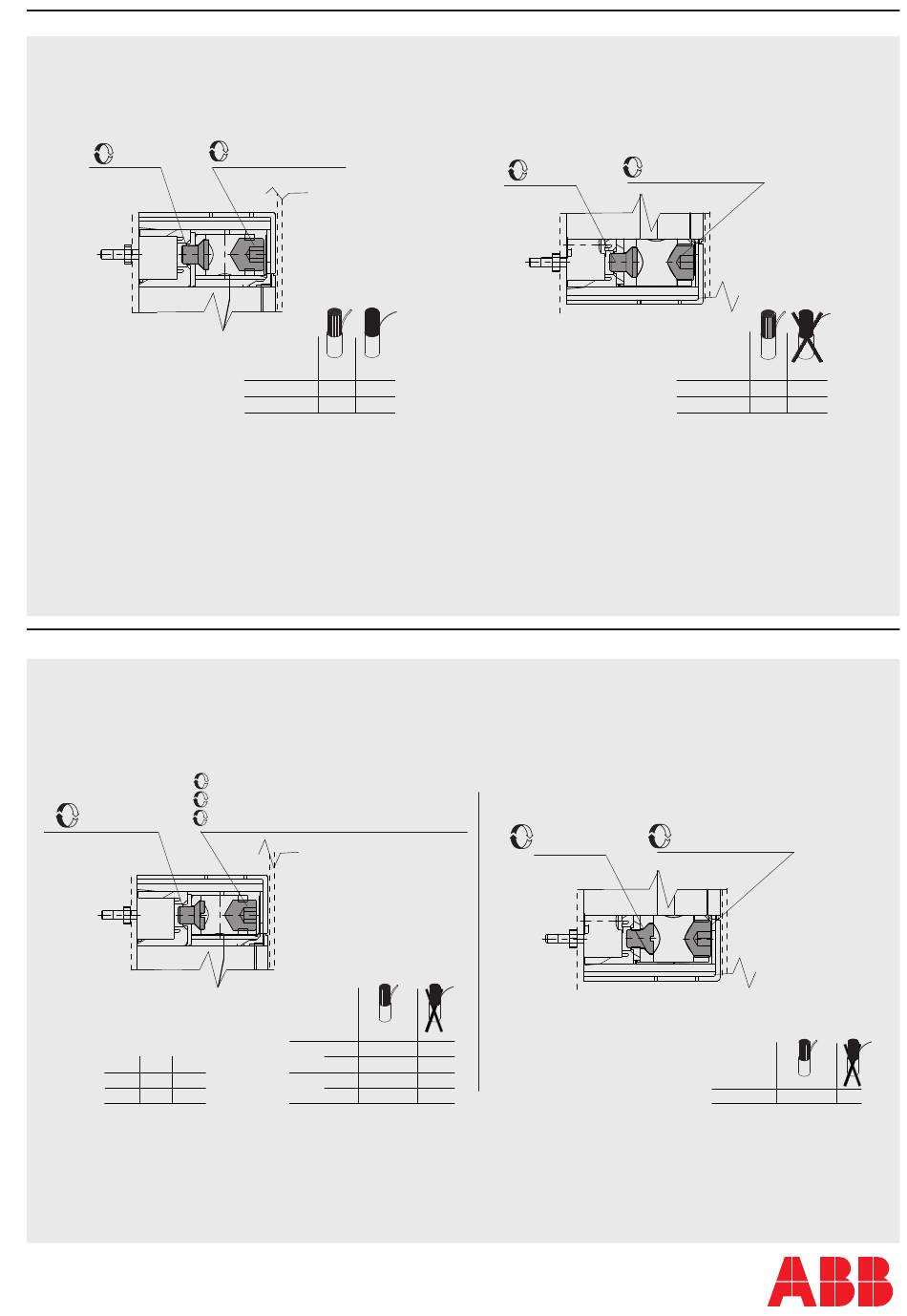

ABB SACE FORMULA A2 Installationsanleitung Seite 6

N
Fc CuAl 150 mm
8 Nm
70.8 lb in
O
Fc CuAl 1 AWG...300 Kcmil
71 lb·in
Cu Al
OK OK
225A
250A -
OK
©
