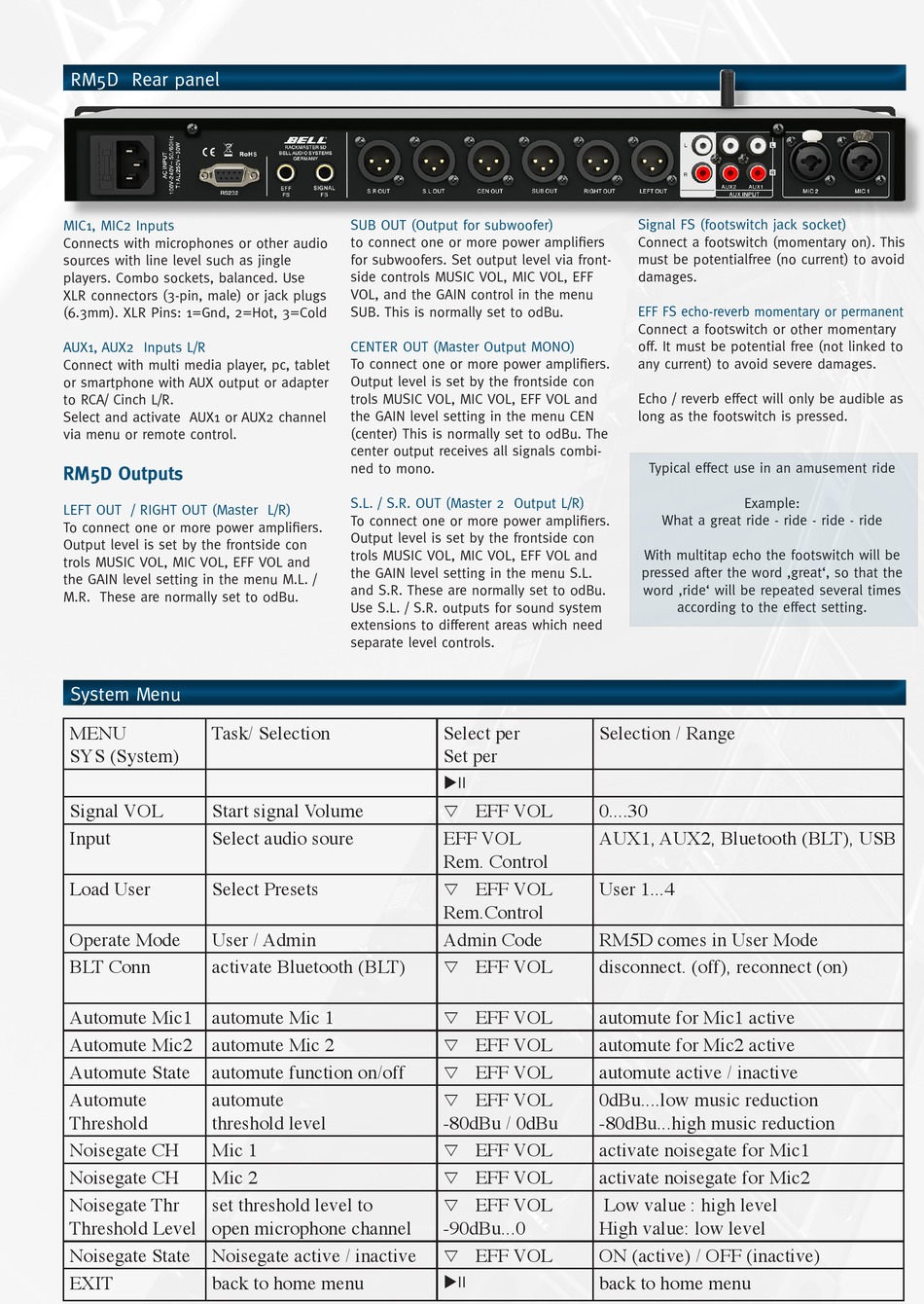

RM5D Rear panel
MIC1, MIC2 Inputs
Connects with microphones or other audio
sources with line level such as jingle
players. Combo sockets, balanced. Use
XLR connectors (3-pin, male) or jack plugs
(6.3mm). XLR Pins: 1=Gnd, 2=Hot, 3=Cold
AUX1, AUX2 Inputs L/R
Connect with multi media player, pc, tablet
or smartphone with AUX output or adapter
to RCA/ Cinch L/R.
Select and activate AUX1 or AUX2 channel
via menu or remote control.
RM5D Outputs
LEFT OUT / RIGHT OUT (Master L/R)
To connect one or more power amplifiers.
Output level is set by the frontside con
trols MUSIC VOL, MIC VOL, EFF VOL and
the GAIN level setting in the menu M.L. /
M.R. These are normally set to 0dBu.
System Menu
MENU
Task/ Selection
SYS (System)
Signal VOL
Start signal Volume
Input
Select audio soure
Load User
Select Presets
Operate Mode
User / Admin
BLT Conn
activate Bluetooth (BLT)
Automute Mic1 automute Mic 1
Automute Mic2 automute Mic 2
Automute State
automute function on/off
Automute
automute
Threshold
threshold level
Noisegate CH
Mic 1
Noisegate CH
Mic 2
Noisegate Thr
set threshold level to
Threshold Level
open microphone channel
Noisegate State
Noisegate active / inactive
EXIT
back to home menu
SUB OUT (Output for subwoofer)
to connect one or more power amplifiers
for subwoofers. Set output level via front-
side controls MUSIC VOL, MIC VOL, EFF
VOL, and the GAIN control in the menu
SUB. This is normally set to 0dBu.
CENTER OUT (Master Output MONO)
To connect one or more power amplifiers.
Output level is set by the frontside con
trols MUSIC VOL, MIC VOL, EFF VOL and
the GAIN level setting in the menu CEN
(center) This is normally set to 0dBu. The
center output receives all signals combi-
ned to mono.
S.L. / S.R. OUT (Master 2 Output L/R)
To connect one or more power amplifiers.
Output level is set by the frontside con
trols MUSIC VOL, MIC VOL, EFF VOL and
the GAIN level setting in the menu S.L.
and S.R. These are normally set to 0dBu.
Use S.L. / S.R. outputs for sound system
extensions to different areas which need
separate level controls.
Select per
Set per
uII
EFF VOL
s
EFF VOL
Rem. Control
EFF VOL
s
Rem.Control
Admin Code
EFF VOL
s
EFF VOL
s
EFF VOL
s
EFF VOL
s
EFF VOL
s
-80dBu / 0dBu
EFF VOL
s
EFF VOL
s
EFF VOL
s
-90dBu...0
EFF VOL
s
uII
Signal FS (footswitch jack socket)
Connect a footswitch (momentary on). This
must be potentialfree (no current) to avoid
damages.
EFF FS echo-reverb momentary or permanent
Connect a footswitch or other momentary
off. It must be potential free (not linked to
any current) to avoid severe damages.
Echo / reverb effect will only be audible as
long as the footswitch is pressed.
Typical effect use in an amusement ride
Example:
What a great ride - ride - ride - ride
With multitap echo the footswitch will be
pressed after the word ‚great', so that the
word ‚ride' will be repeated several times
according to the effect setting.
Selection / Range
0....30
AUX1, AUX2, Bluetooth (BLT), USB
User 1...4
RM5D comes in User Mode
disconnect. (off), reconnect (on)
automute for Mic1 active
automute for Mic2 active
automute active / inactive
0dBu....low music reduction
-80dBu...high music reduction
activate noisegate for Mic1
activate noisegate for Mic2
Low value : high level
High value: low level
ON (active) / OFF (inactive)
back to home menu
