Sea-Bird Scientific SBE 19plus V2 SeaCAT Bedienungsanleitung Seite 5

1 Common
2 Voltage 2 signal
3 Voltage 2 common
Contact Function
1 Common
2 RS232 data RX
3 RS232 data TX
Contact Function
1 Common
2 Voltage 4 signal
3 Voltage 4 common
Contact
1 Common
2 RS232 data transmit to RS232 sensor
3 RS232 data receive from RS232 sensor
4 Power to RS232 sensor

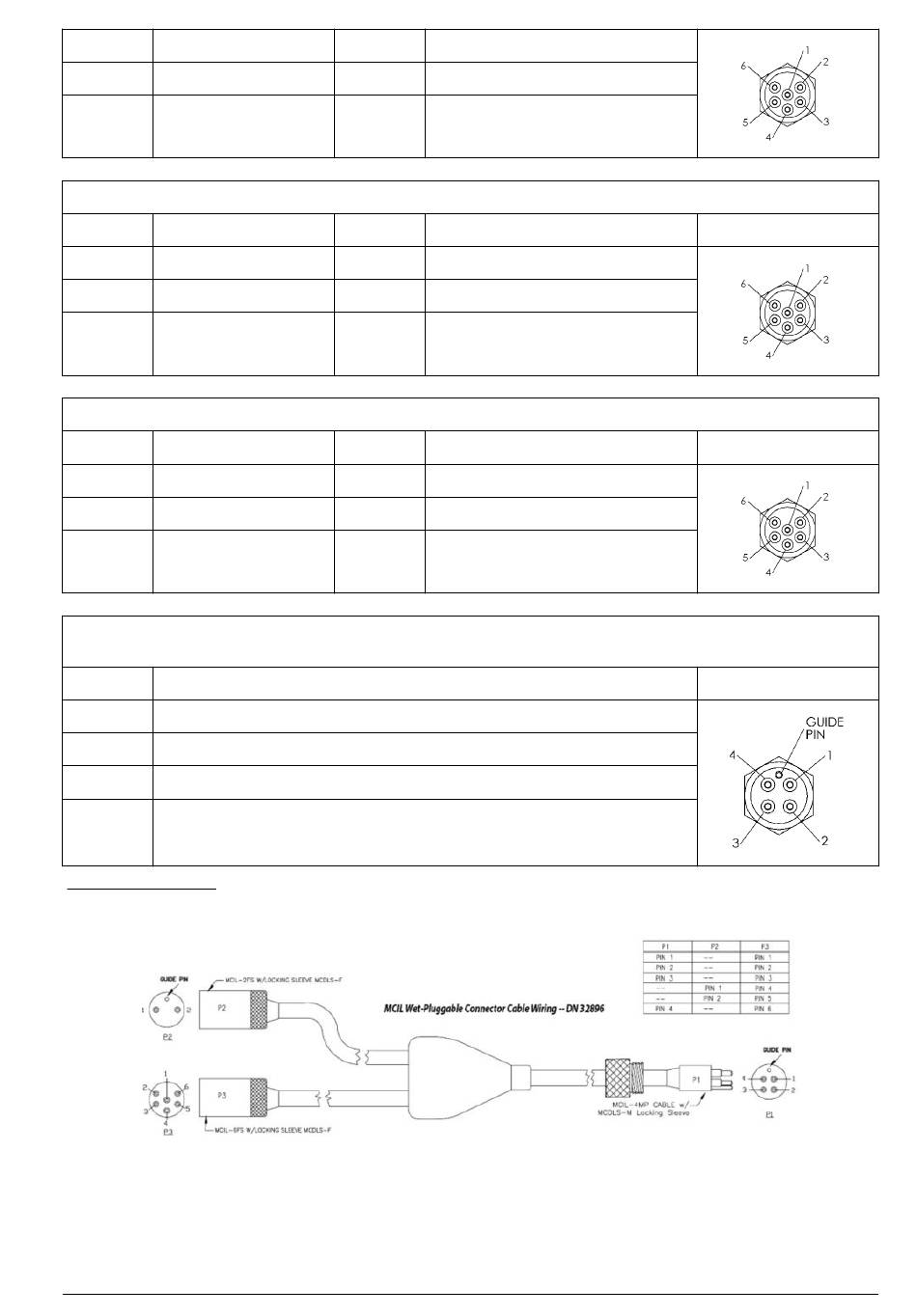

Figure 1 Y cable
4 Voltage 3 signal
5 Voltage 3 common
6 Auxiliary power out
J3 data I/O, pump, external power
Contact
4 Pump power common
5 Pump power
6 Auxiliary power in, 9–28 VDC
J4 auxiliary differential input 4, 5
Contact
4 Voltage 5 signal
5 Voltage 5 common
6 Auxiliary power out
J5 auxiliary serial input
sensor and 19plus must be set to the same baud rate
Function
Function
Function
MCBH6MP
MCBH6MP
MCBH4MP
English 5
