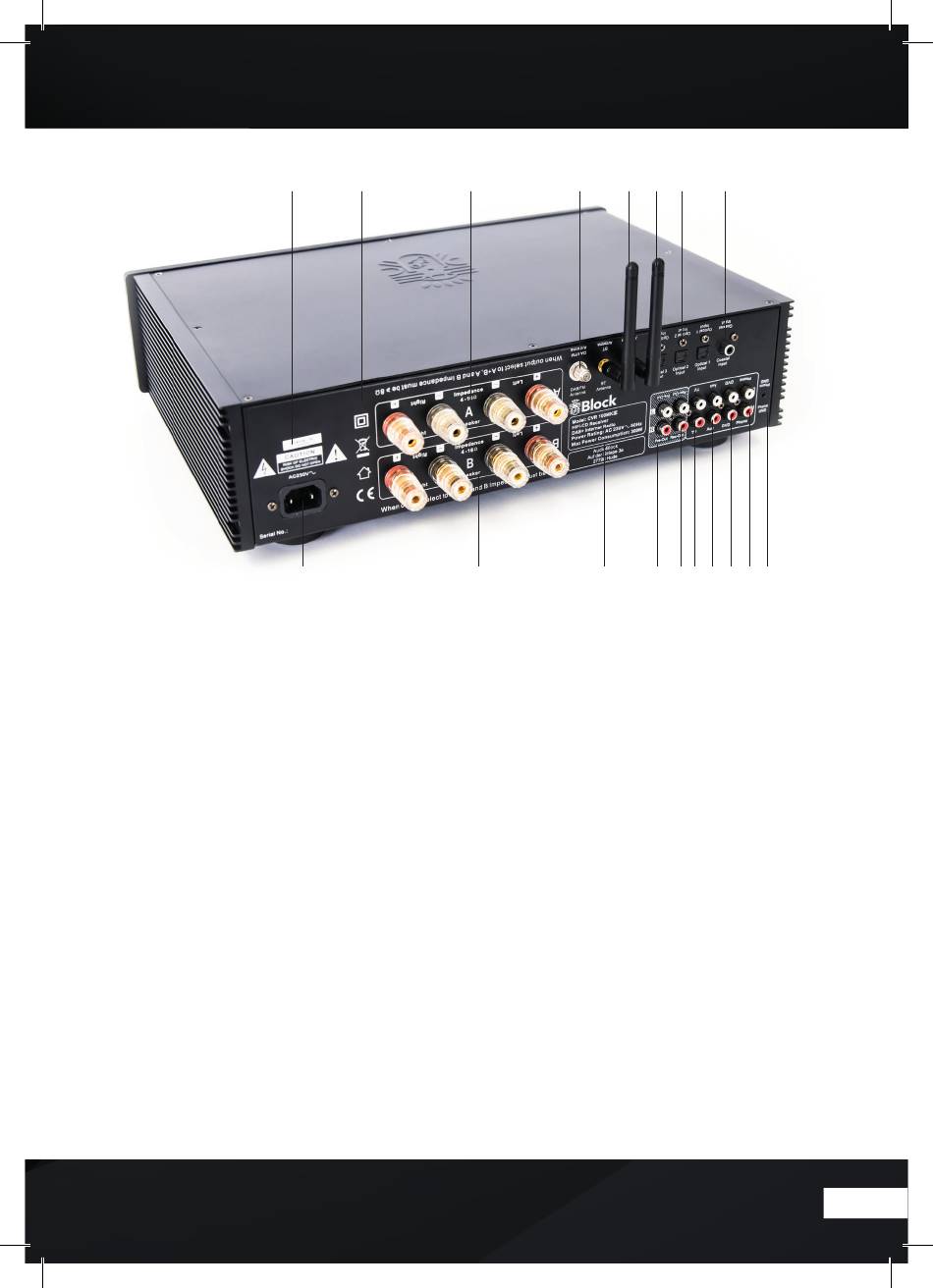

Connections on the device
1.
Mains connection: the mains connection cable-
may show no damages or defects.
2.
warnings
3.
Loudspeaker connections A: please en sure the
correct connection of plus and minus!
4.
Loudspeaker connections B: please en sure the
correct connection of plus and minus!
5.
Type designation and electric current specifica-
tions.
6.
Optical Inputs 1-3: connect here an optical
digital cable.
7.
Coaxial input: connect here a coaxial cable.
8.
Pre-Out Output jack: to connect another
amplifier or a subwoofer.
9.
Rec-Out jack: to connect a recording device.
10.
TV input jack: to connect a TV set.
2 18
1
3 15 16
4 5
11.
AUX input jack: to connect an additional device.
12.
DVD input jack: to connect a DVD player.
13.
Phonon input jack: to connect a record playe
with MM system.
14.
Ground screw connection: to connect a ground
cable for record player
15.
DAB + / FM aerial connection
16.
Bluetooth-aerial connection
(picture of put up aerial)
17.
WLAN aerial connection (picture of put up aerial)
18.
Inspection marks and disposal instructions.
17 6 7
8 9 10 11 12 13 14
