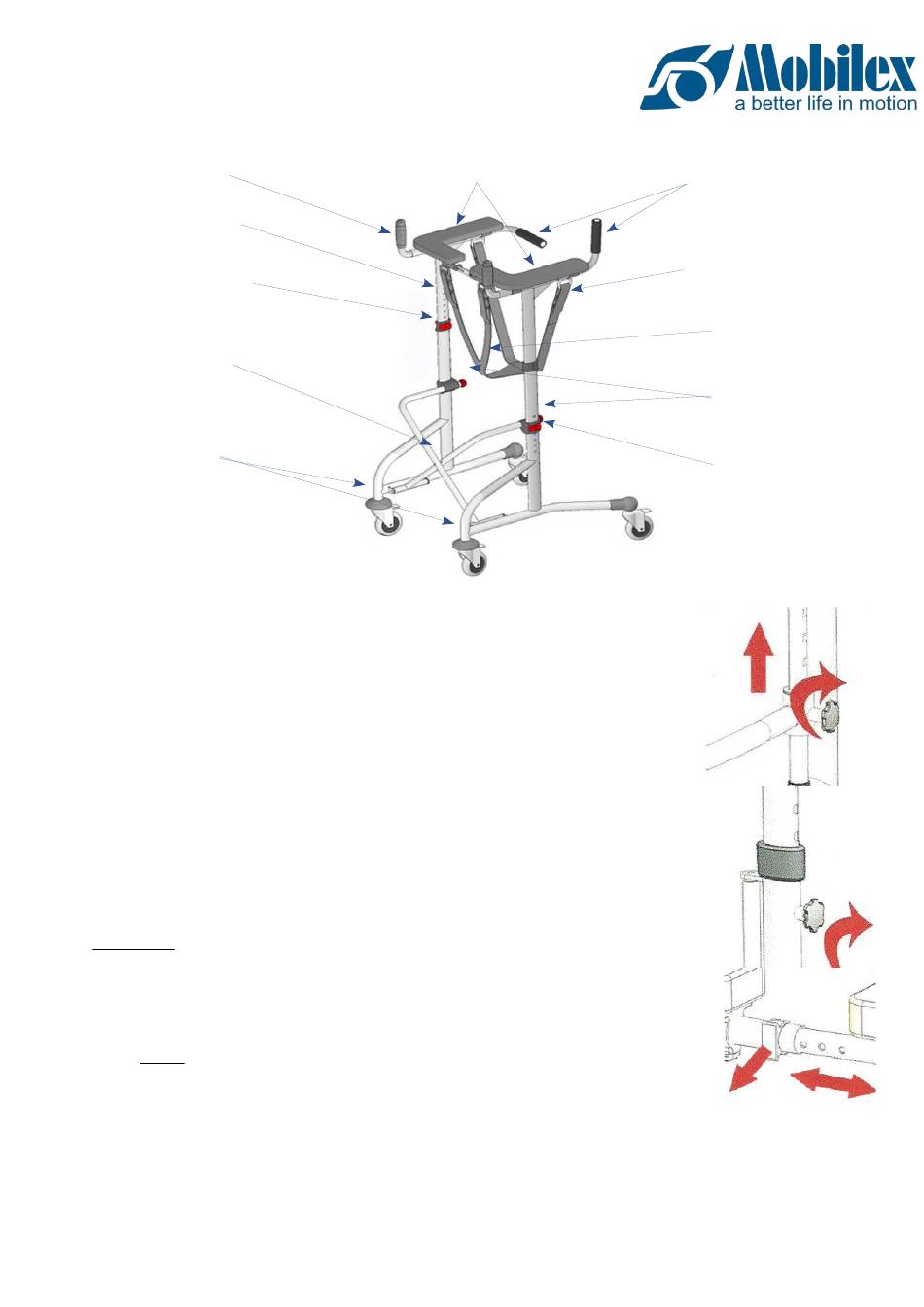

Angle ajust-
able handle
Frame lock
Height adjust-
ment knob
Frame cross
Castor wheel
with pedal brake
Assembly description & Function description
●
Initial check. Check with the list from above if nothing is missing. If you'd
discover at that stage that some part is missing or damaged, do not continue
assembly process. Contact your supplier of the product right away.
●
Frame opening/closing and width adjustment. Press the front parts of
both crossbars downwards until the width adjustment knob will reach the level
of one of the width setting holes. Then turn the both knobs clockwise to fix the
desired frame width. The lower hole you'll choose, the wider frame width will
be set. To close the frame you have to loosen two width adjustment knobs and
pull the both crossbars up.
●
Attaching the side&arm supports and height adjustment. Slide the side
and arm supports pole in to the dedicated oval hole on the top of main frame.
Choose the desired height of the support and tie the height adjustment knob,
so the support is fixed and stable. Repeat above steps to fix the support on the
second side of the device. If you want to change adjusted height of side
supports, simply loosen the knobs set the needed level and tie the knobs back.
WARNING ! Both side&arm supports must be always adjusted to the same height!
●
Locking the arm&side supports. Pull the locking pin out of it's spot. Insert
the tube end with smaller diameter, located on one of side&arm supports in to
the tube end with larger diameter on the other side&arm support. Align the
holes located on both tubes. Then reinsert the locking pin in to it's place.
NOTE! To readjust the frame width or to fold the frame, you must unlock the
frame lock in the first place!
Rev. 29.09.21
Side&Arm
supports
15 - 24
Elevable safety
back bars
Seat belt length
adjustment
Supportive
seat belt
Width adjust
ment knob
Width setting holes
