A-14
Connecting the SCSI interface cable
Scorpion 40 drives can be used with three different types of
SCSI interfaces: Ultra2 SCSI (LVD), "Wide" (16-bit) single-
ended SCSI, and "Narrow" (8-bit) single-ended SCSI. The
drive can automatically detect whether it is connected to an
LVD or single-ended wide SCSI bus.
Note: The Scorpion 40 will not work in a SCSI-1
Connecting to a 68-pin Wide SCSI or LVD bus
To connect the drive to an LVD or SCSI wide bus, first turn off
all power to the drive and computer. Then attach the interface
cable to the SCSI interface connector on the back of the drive
(see Figure 5 below).

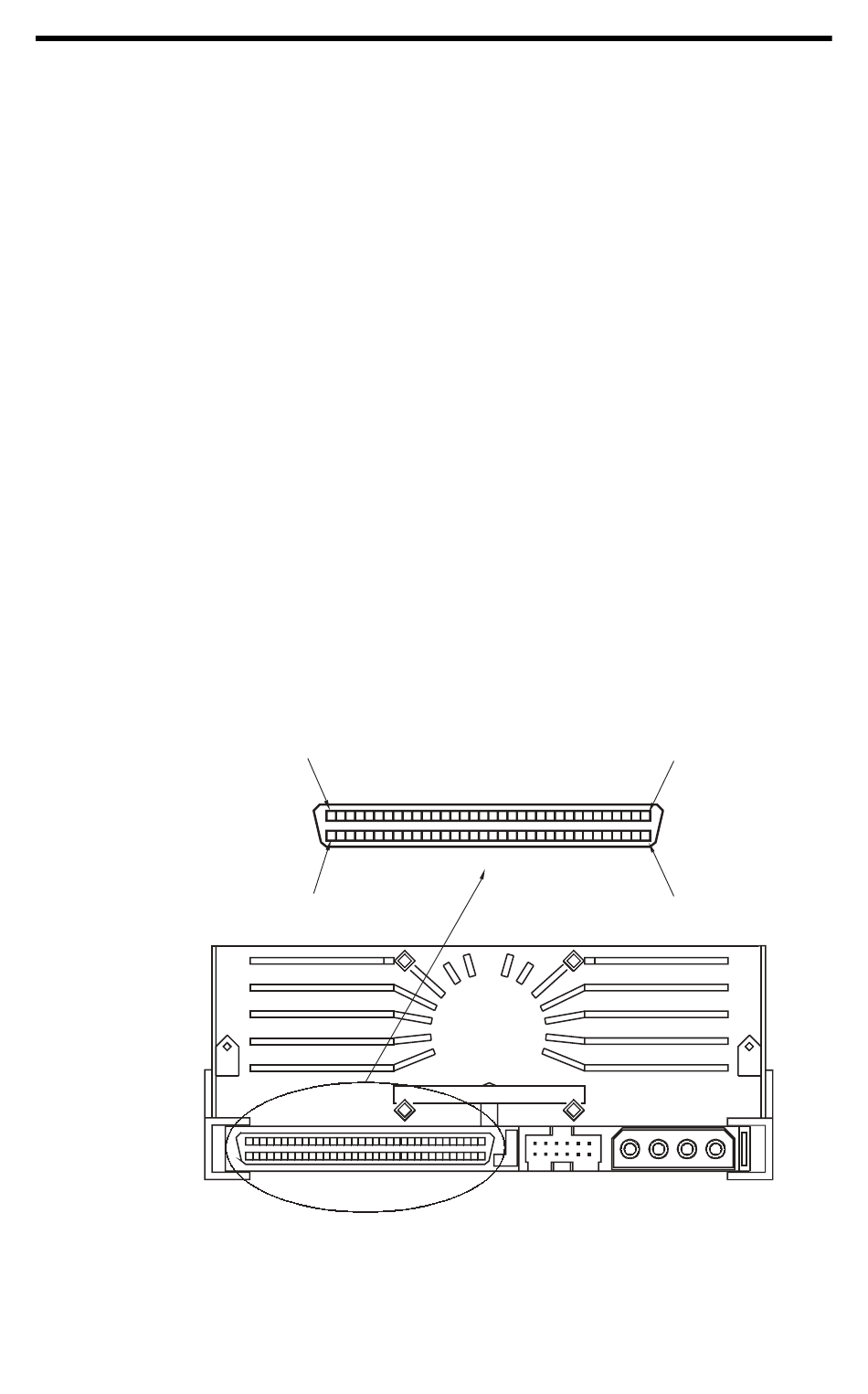

Figure 5
Interface connectors on internal Scorpion 40
Ultra2 SCSI 68-pin high-density connector
Scorpion 40 Installation Manual: English
environment.
pin 34
pin 68
pin 1
pin 35
