Tab. 52 - ABB Power2 650-M Bedienungsanleitung

Operation Manual / Power2 650-M / High-pressure stage

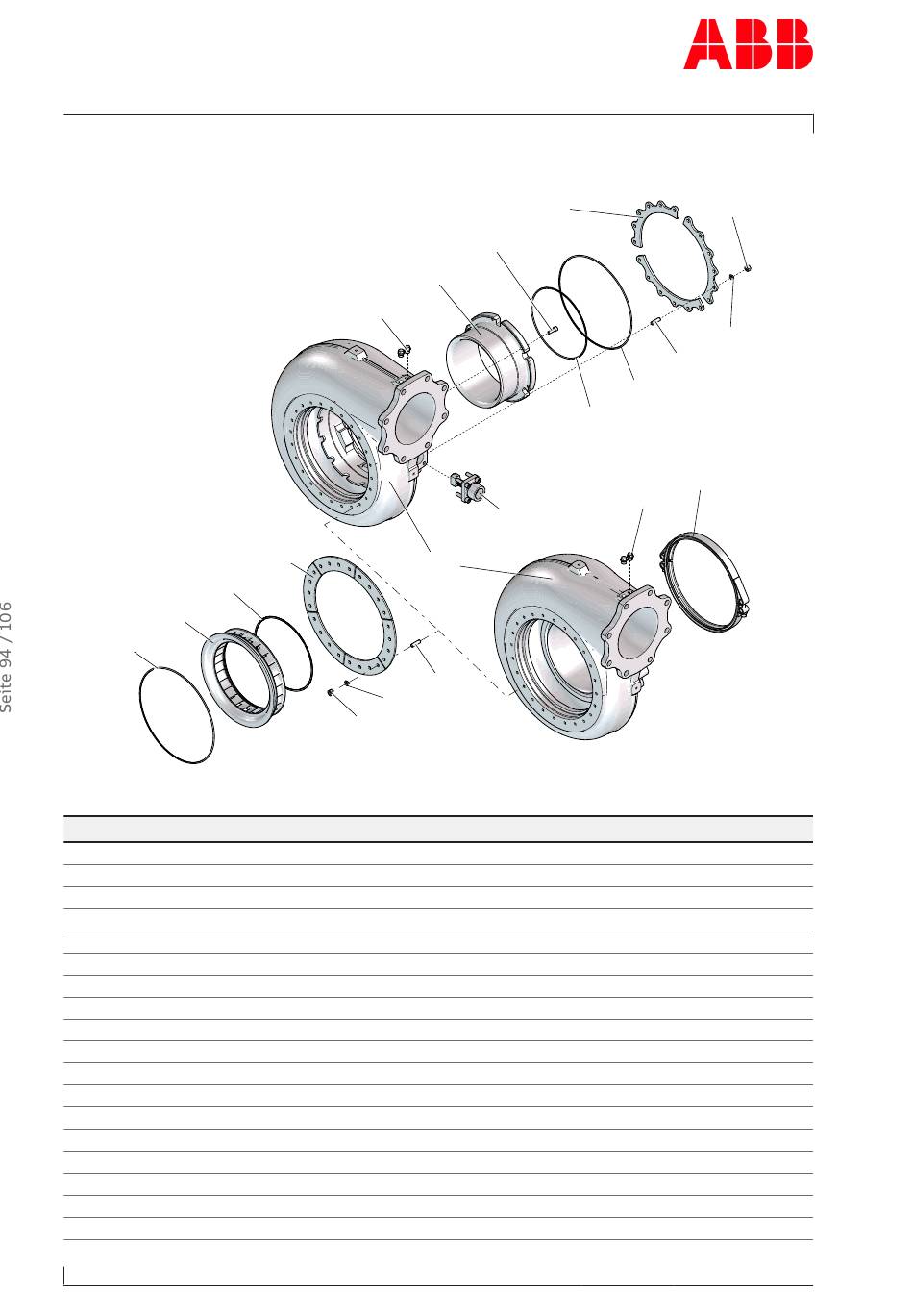

13 Ersatzteile / 13.2 Spare part – Illustrations
Turbine casing
56005*
56001
51105*
** = if provided
* = Available within the spare part set
Part no.
51000
51002
51003
51004
51005*
51006
51007
51008
51009
51015
51026*
51028
51105*
56001
56005*
57002
57004*
61072
Tab. 52
© Copyright 2022 ABB. All rights reserved.
57002
51028
THV03
51002
51003
51007
Designation
Turbine casing
Fastening strip
Verbusripp washer
Verbusripp washer
Socket screw
Stud
Hexagon nut
Stud
Hexagon nut
Fastening strip
Metal C-ring
Screw plug
Metal C-ring
Nozzle ring
Lamellar sealing ring
Gas-outlet flange
Metal C-ring
V-clamp
51015
51005*
57004*
Turbine cleaning**
51000
51006
HZTL4066_DE
51009
51004
51008
51026*
61072
51028
THV05
HZTL443282 Mod. A
Rev.C March 2022
