Safety instructions
Disconnect the cables from the power supply before installing, checking or replacing a thermostat. Work on electrical connections and the mains connection of
the appliance may only be carried out by qualified electricians. Failure to do so will invalidate the warranty. Only plastic flush-mounted boxes may be used for
thermostat installation. During installation of the corrugated pipe and again before laying the screed, make sure that the sensor can be placed in the
corrugated pipe and removed again.
Attention!
The floor sensor functions as a temperature limiter. The max. temperature must be set in the "Advanced settings" (see page 13). Recommended settings:
•
Max. Temperature tile floor: + 45 ° C
•
Max. Temperature wood, laminate floor: + 27 ° C
•
Max. Temperature vinyl, PVC flooring: the maximum temperature specified by the flooring manufacturer must be set.
Factory settings
Technical data
Voltage
Max. Switching capacity
Power consumption
Weight
Dimensions
IP protection
Ambient temperature range
Temperature setting range
Color
Floor Sensor R25°C
Set day and time (adjust day and time)
230 VAC, 50-60 Hz
16A
2 W
150g
86x90x43mm
IP20
+5 bis +50°C
+5 bis +90°C
Weiß
10kOhm

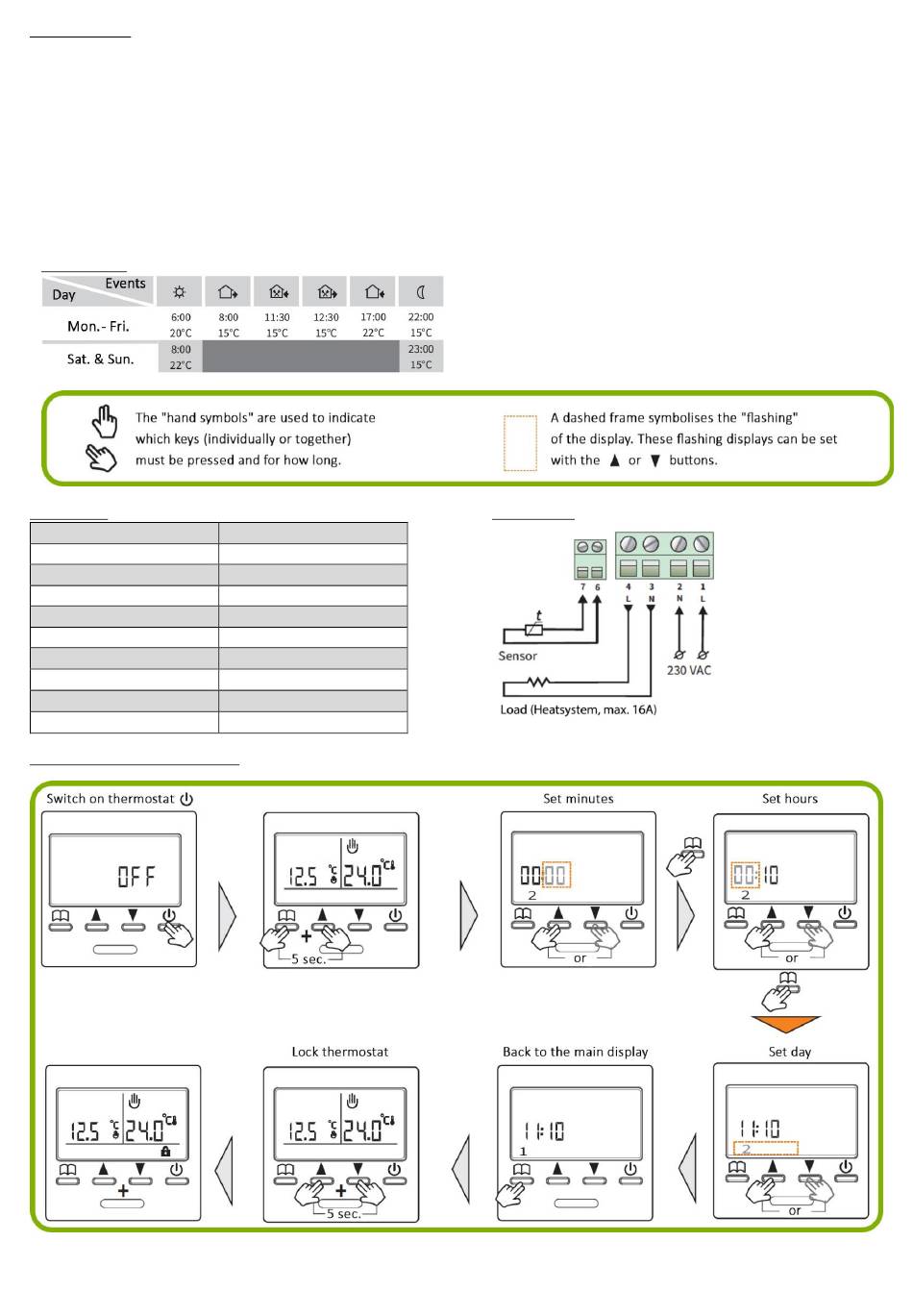

Circuit diagram
9
