Wireless-G Notebook Adapter
If your network has the wireless security WPA Personal (Wi-Fi Protected Access) enabled, this screen will
appear.
Encryption - Select the type of algorithm you want to use, TKIP or AES, from the Encryption drop-down
menu.
Passphrase - Enter a Passphrase, also called a pre-shared key, of 8-63 characters in the Passphrase field.
The longer and more complex your Passphrase is, the more secure your network will be.
Then click Connect.
3. After the software has been successfully installed, the Congratulations screen will appear. Click Connect to
Network to connect to your network.
Congratulations! The setup is complete.
Chapter 5: Using the Wireless Network Monitor
Creating a New Profile

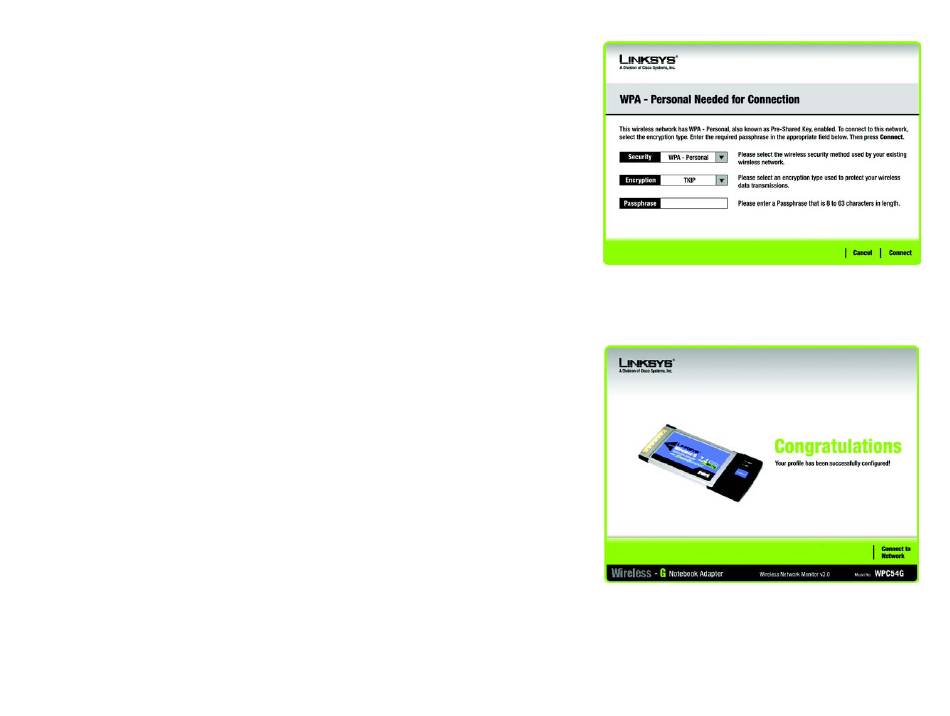

Figure 5-19: WPA Personal Needed for Connection

Figure 5-20: Congratulations

29
