Installation / Preparation for commissioning

6.6 Shield and Ground

The LLB contains two electrically isolated grounds, the general ground (GND) and the
Analog ground (AGND). GND and AGND are connected to the housing by a RC
element, see Figure 5.

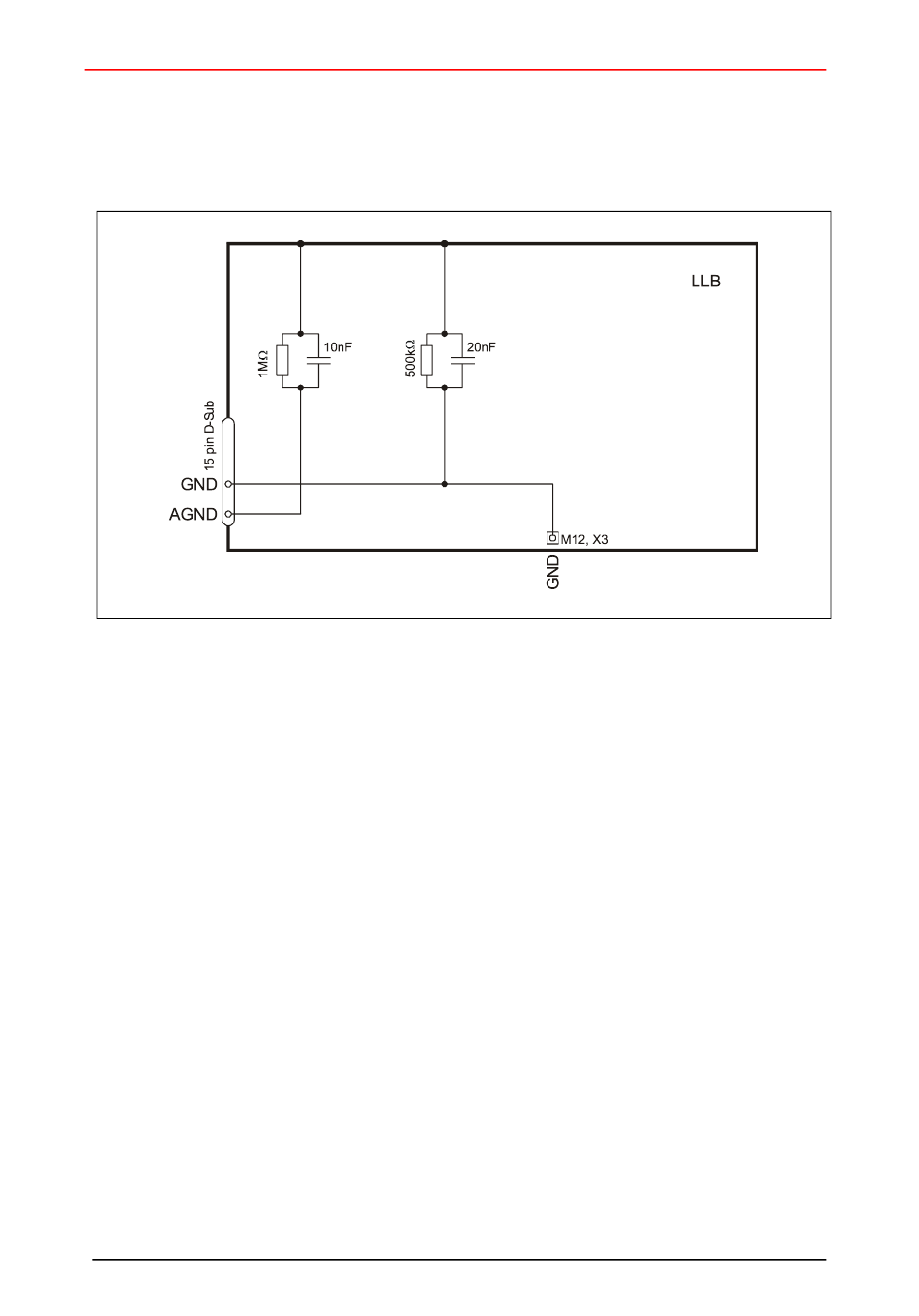

Figure 5: Connection between shield, Ground (GND) and Analog Ground (AGND)
