NOTE: Specific measurement equipment is required to properly adjust the Equalization controls. Your authorized JBL SYNTHESIS
make the appropriate measurements, using suitable equipment to ensure optimal results.
4. eQ Frequency Control
This adjustment allows you to select the center frequency of the particular problem area. The range is from 32Hz to 100Hz.
5. eQ Bandwidth Control
Sets the range of frequencies over which the equalizer will have an effect. The range is from 0.1 octaves to 0.6 octaves.
6. eQ Level Control
Allows you to adjust how much boost or cut is applied to the selected frequency by the EQ Frequency Control. This control adjusts from -12dB to a
maximum of +3dB.
7. Phase switch
Adjusts the phase of the subwoofer's output to the front speakers. Proper phase adjustment can also depend on variables such as the in-wall
subwoofer placement and listener position. Set this switch for maximum mid-bass output at the primary listening position.
8. eQ On/Off switch
Enables/Disables the parametric EQ controls (Frequency, Bandwidth, and EQ Level, but not Phase).
9. "1 2", or subwoofer type switch
Selects the factory pre-programmed subwoofer type settings:
• Select the Type 1 setting for use with with the JBL SYNTHESIS
• Select the Type 2 setting for use with the JBL C82W
10. AC Mains Power switch
Connects and disconnects power from the AC input cord. During periods of intermittent use, the power switch can be left On. It is recommended to
turn off the power switch for extended periods of non-use.
11. Power Cord Connector
Plug the supplied power cord into this connector and into a wallmounted AC outlet. Due to the current draw of the SDA-1700, accessory outlets on
the back of any audio/video components should NEVER be used to power this product.
The power cord connector includes the fuse tray, located at the lower side of the receptacle. If you need to gain access to the fuse, always
disconnect the unit from the AC source/outlet. Replace the fuse with the same type, voltage and current rating specified.
100-120VAC Model: 10AH,250V
230-240VAC Model: 5AH,250V

InstALLAtIOn

CAUtIOn: Before you begin, make sure your amplifier is disconnected from the power source and all level controls turned completely down
(counterclockwise).
Make sure the power source is adequate to supply the correct AC mains voltage and current for the JBL SYNTHESIS
that your amplifier operating voltage matches your available AC mains voltage.
To install the SDA-1700 in your cabinet/rack system, follow the steps below:
• If applicable and or required by the installation, attach the rack mount brackets to each side of the front of the amplifier using the screws
provided. Refer to Figure 4.
• Install the assembly into the cabinet using the mounting screws for your rack through the rack mount brackets. For details of installation into the
cabinet, refer to the user guide of your cabinet.

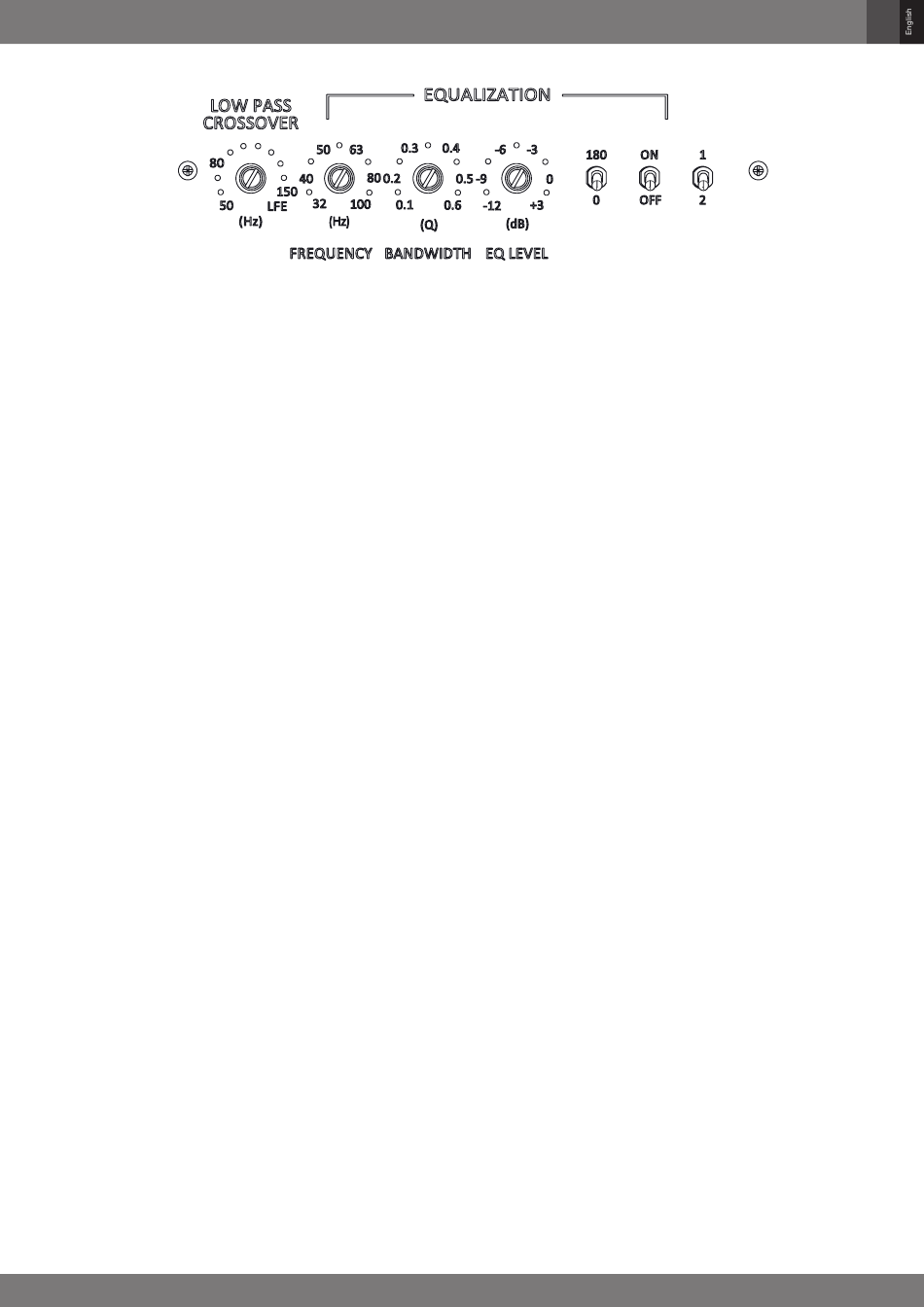

Figure 3: Rear-panel equalization controls
®
SSW-4
5
®
dealer can
® SDA-1700 amplifier. Be sure
