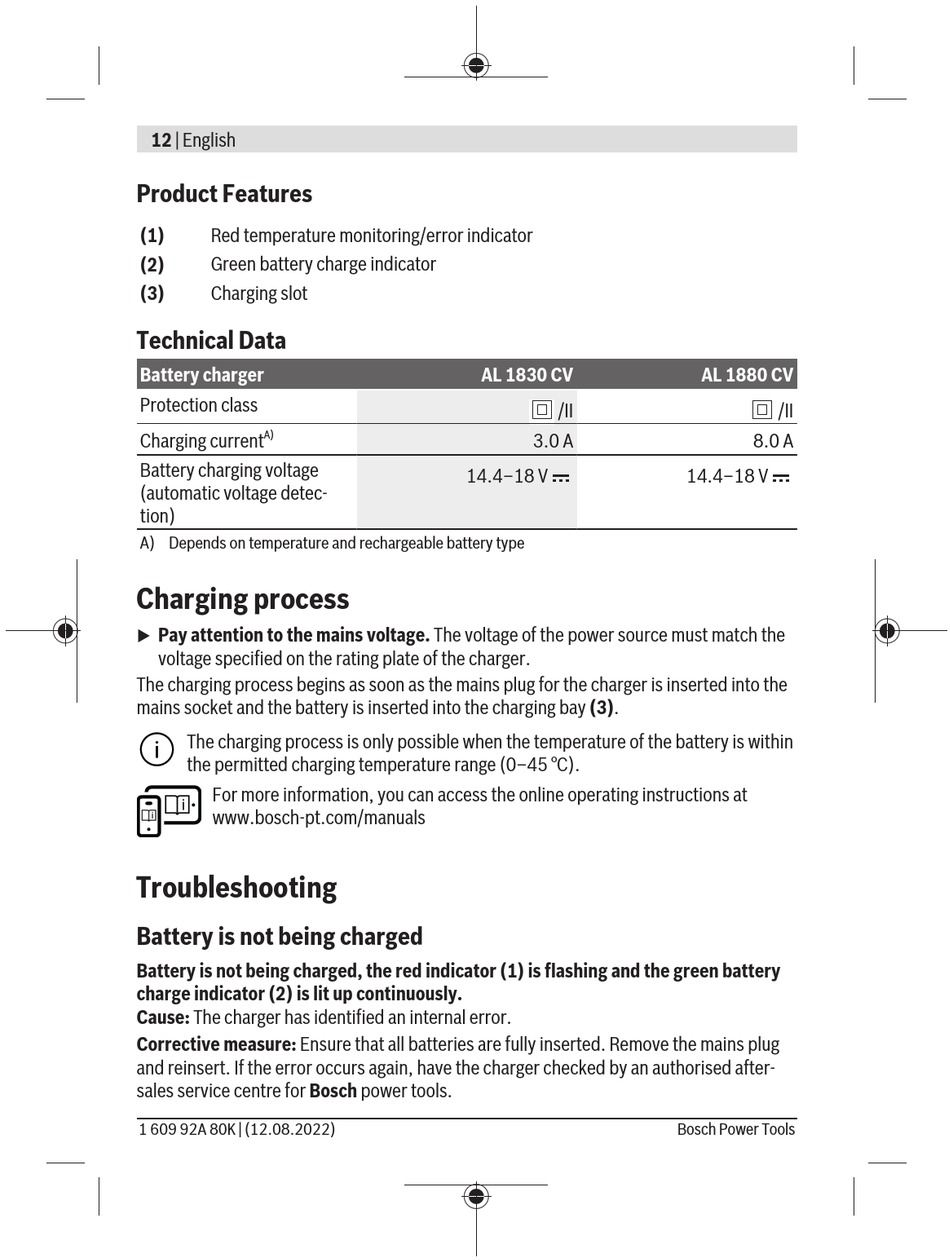

Charging Process - Bosch POWER FOR ALL System AL 1830 CV Originalbetriebsanleitung

12 | English
Product Features
(1) Red temperature monitoring/error indicator
(2) Green battery charge indicator
(3) Charging slot
Technical Data
Battery charger
Protection class
A)
Charging current
Battery charging voltage
(automatic voltage detec-
tion)
A) Depends on temperature and rechargeable battery type

Charging process

Pay attention to the mains voltage. The voltage of the power source must match the
u
voltage specified on the rating plate of the charger.
The charging process begins as soon as the mains plug for the charger is inserted into the
mains socket and the battery is inserted into the charging bay (3).
The charging process is only possible when the temperature of the battery is within
the permitted charging temperature range (0–45 °C).
For more information, you can access the online operating instructions at
www.bosch-pt.com/manuals
Troubleshooting
Battery is not being charged
Battery is not being charged, the red indicator (1) is flashing and the green battery
charge indicator (2) is lit up continuously.
Cause: The charger has identified an internal error.
Corrective measure: Ensure that all batteries are fully inserted. Remove the mains plug
and reinsert. If the error occurs again, have the charger checked by an authorised after-
sales service centre for Bosch power tools.
1 609 92A 80K | (12.08.2022)
AL 1830 CV
/II
3.0 A
14.4–18 V
AL 1880 CV
/II
8.0 A
14.4–18 V
Bosch Power Tools
