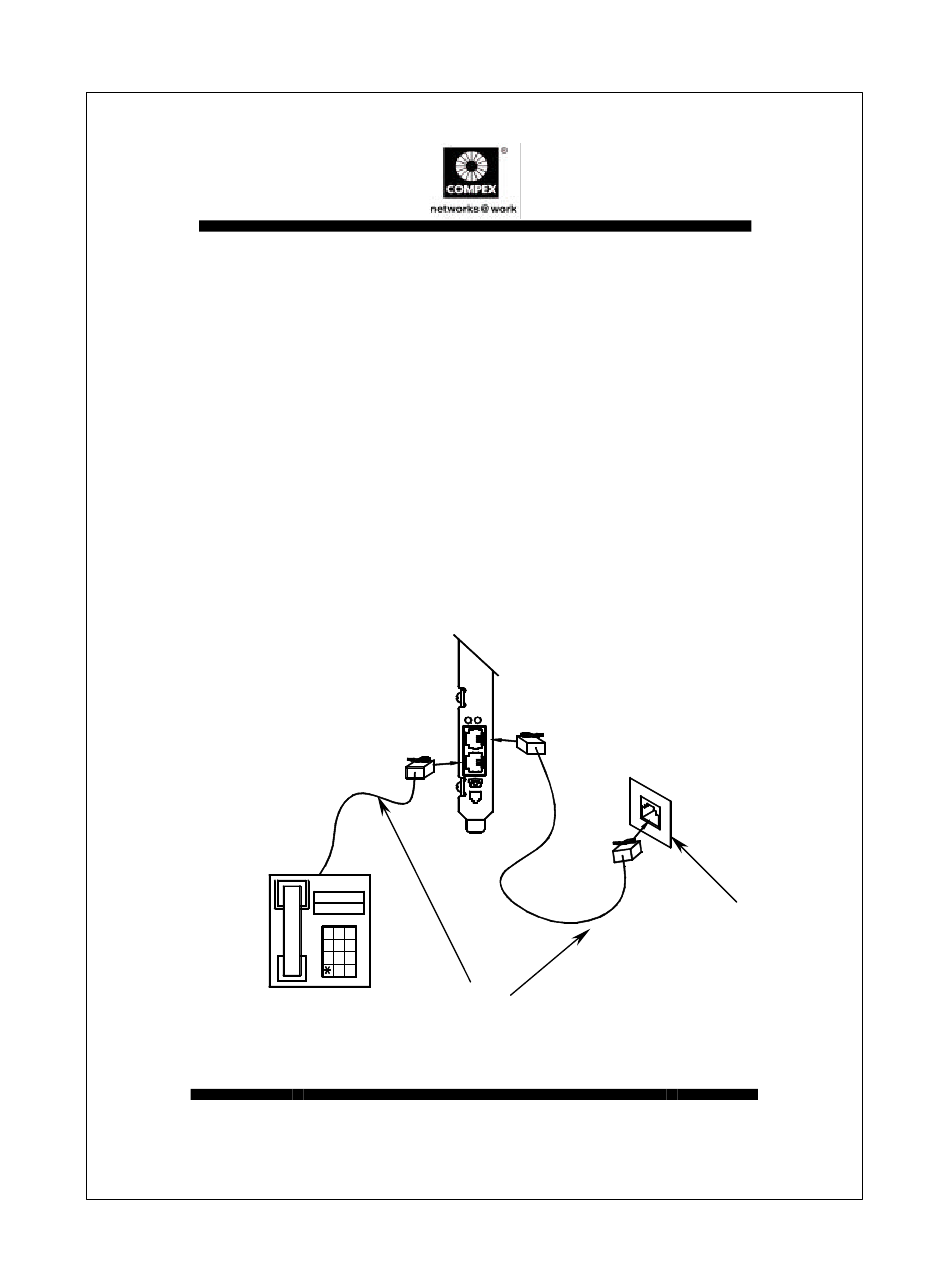

How to setup and connect Compex HP10 to your home phone cabling
system.
A) If your home has several phone extension points.
1. Normally your telephone is connected to the wall socket. Unplug the
phone line from the wall socket and plugs to the bottom socket of the
Compex HP10 network card. Using another phone cable and plugs to
the top socket of Compex HP10 network card and the other end to
the wall socket.
2. Do the same as in step (1) for the next PC in the next room and so
on.
3. Your PCs are now ready to install the network card software to
complete the installation. Refer to the respective section of the
Windows version that you have installed in your PC.
1 2 3
4 5 6
7 8 9
0 #
English Compex HP10 Network Adapter
LINK ACT
Phone cable
Wall socket
