Pool Systems XPS-25 Benutzer- Und Servicehandbuch Seite 14

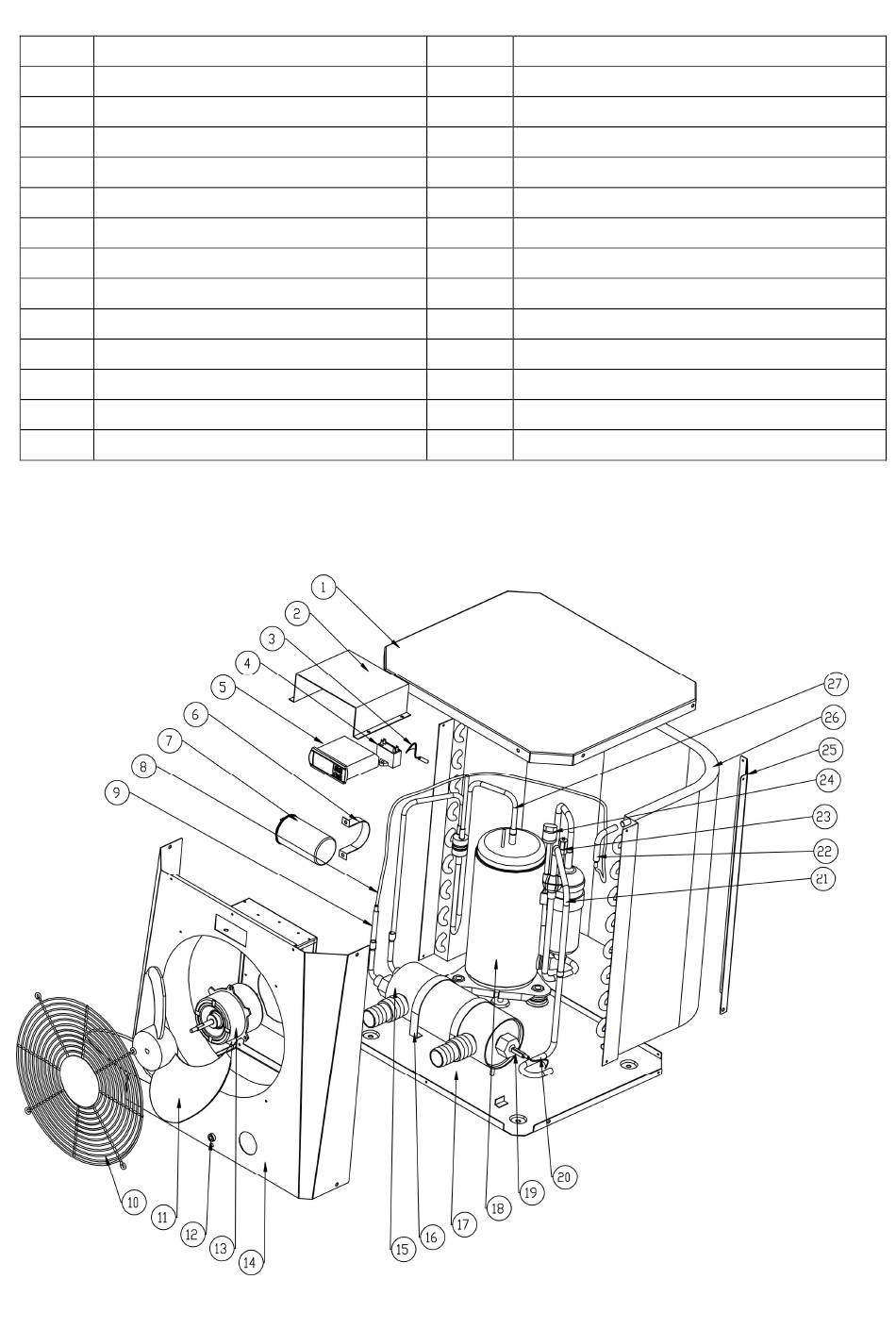

NO Spare parts
1 Top cover
2 Pillar
3
Ambient temperature sensor
4
Gas filter pipe
5
Clip
6
Fan motor top plate
7
Compressor capacitance
8 Controller
9 Ventilation Grid
10 Fan motor
11 Power supply wire buckle
12
Front panel
13
Controller box
XPS-42
NO Spare parts
14 Gas filter pipe
15 Capillaries
16
Titanium exchanger
17
Water inlet temperature sensor
18
Base
19
Compressor
20
Gas collecting pipe
21 Gas return pipe
22 Suction valve
23 Evaporator
24 Low pressure switch
25
Gas exhaust pipe
