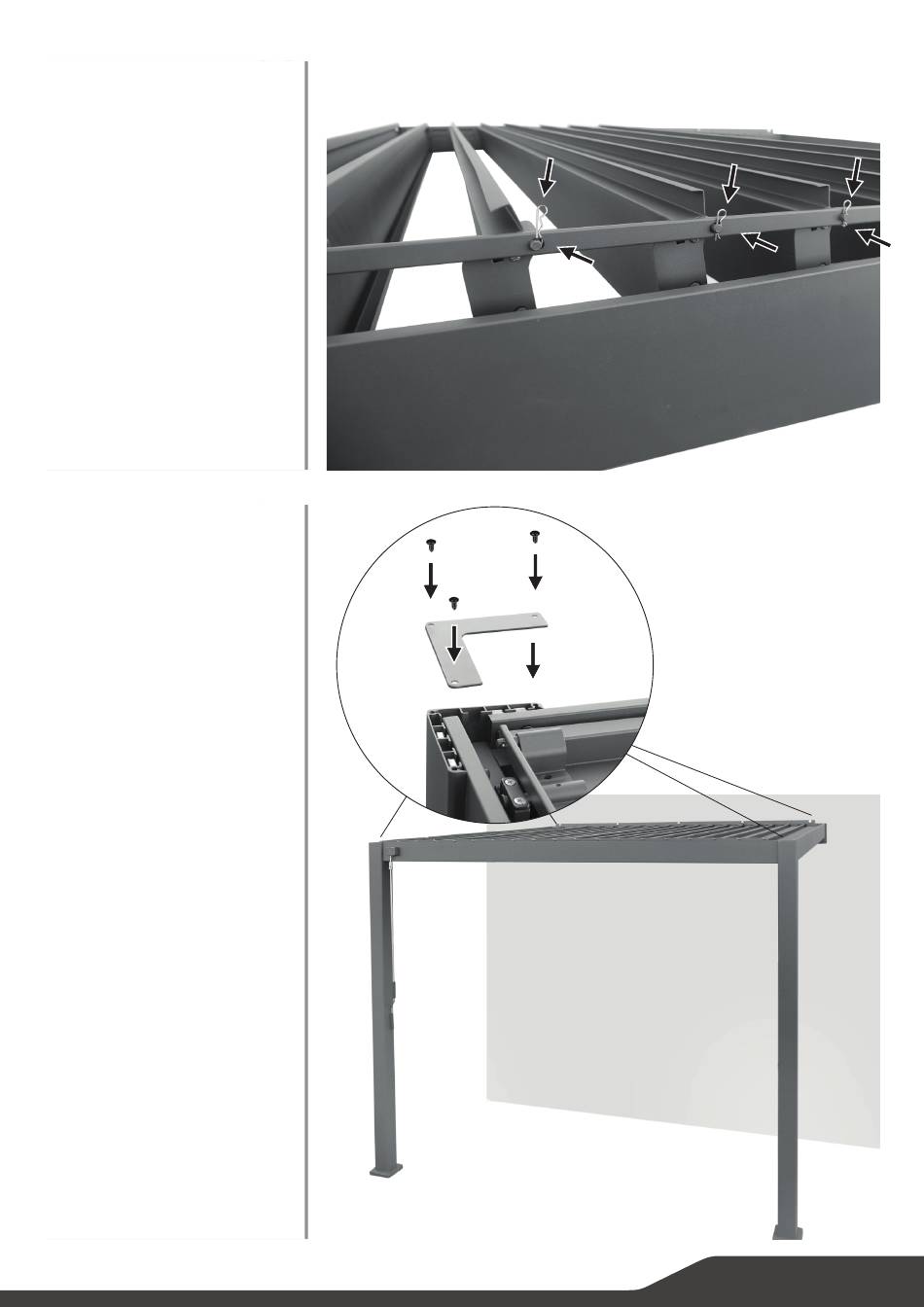

Mount connecting rod on to the
front side
Attach the second connecting
rod (G) on the front side by
fitting its holes on to the bolts
of the fins (D). Secure it with the
locking clips (S).
4x mount cover angles
Fix a cover angle (N) to each
corner with three screws (R)
23
24
each.
