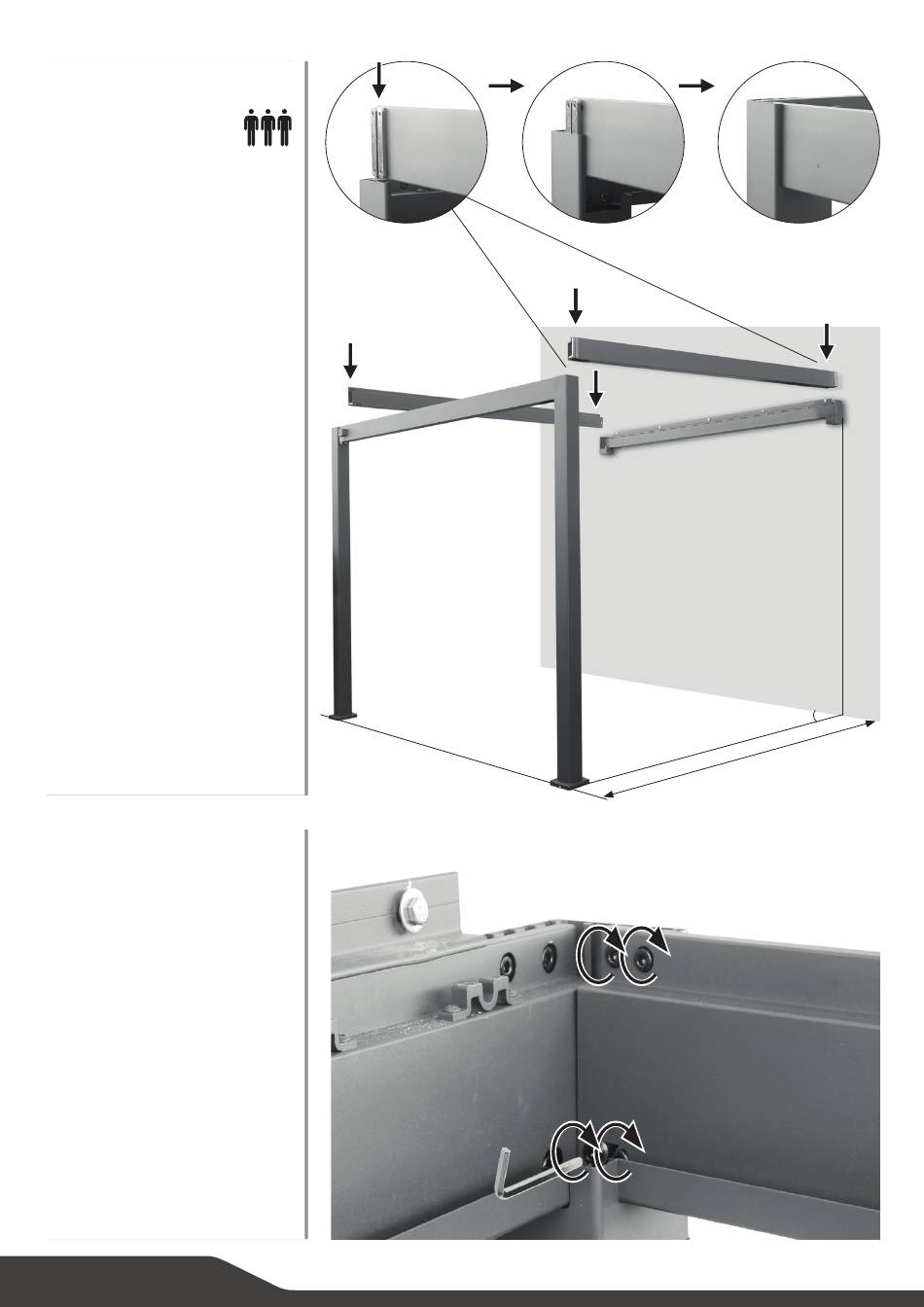

Hook in the side beams
Put up the front beam (B1) with
the columns (A) in front of the
wall in a distance of 3012.5 mm.
Hook in the side beams (C) to
the columns (A) and the corner
connectors (A2).
4x fix the side beams to the
columns and corner connectors
Fix the side beam (C) on both
ends to both column (A) and
corner connector (A2) with the
pre-installed hexagon socket
screws. Use the hexagon socket
spanner (Y).
206 | ENGLISH
10
(C) (C)
(A) (A)
11
(B1) (B1)
(Y) (Y)
(C) (C)
(A2) (A2)
90°
3012.5 mm
(C) (C)
