INSTALLATION

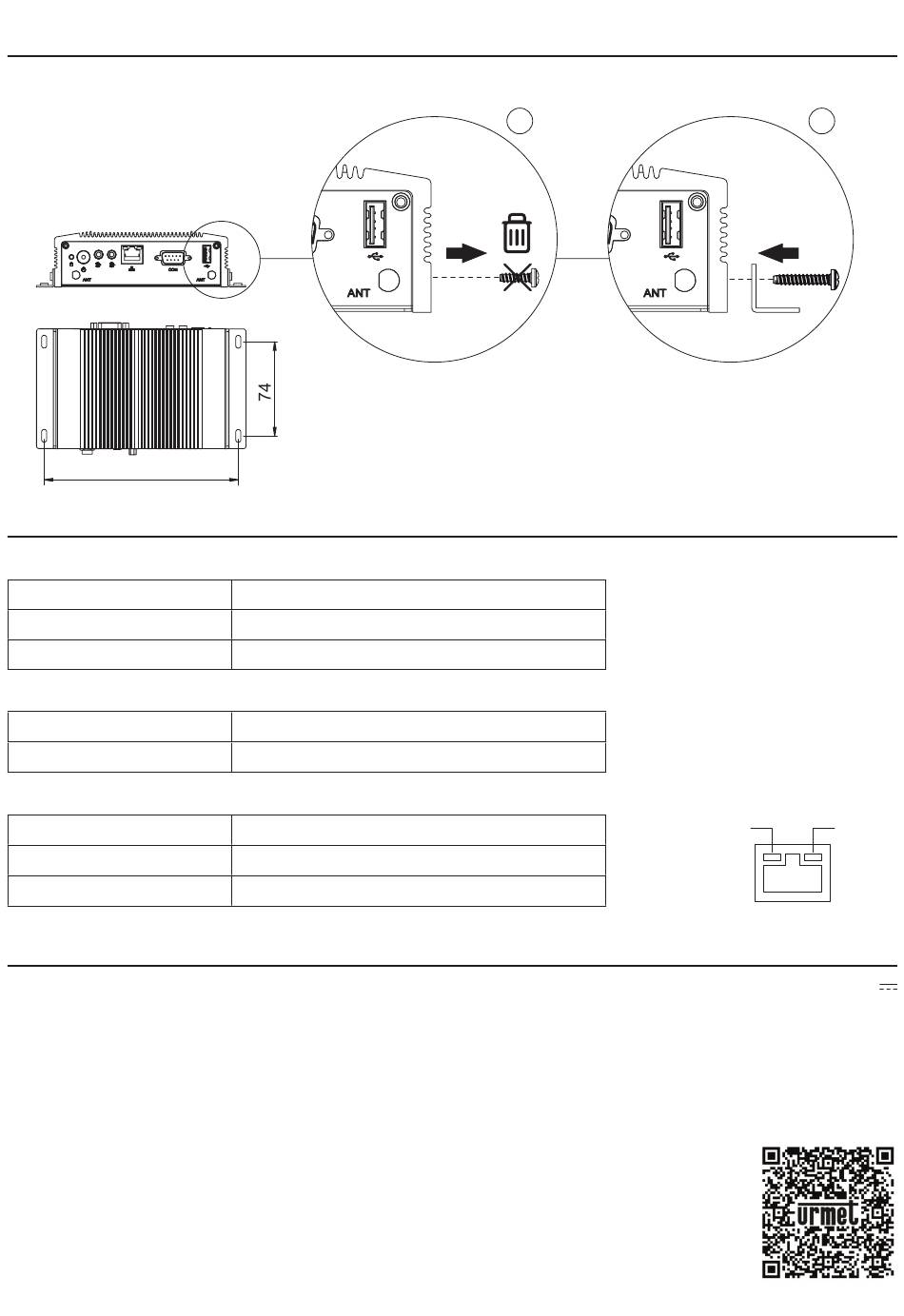

The Ipercom server 1060/1 can be installed on a table top or wall-mounted using the included screws and
anchor bolts.
152
LED OPERATING STATE
POWER LED (ON-OFF BUTTON)
On Green
On Orange
Off
LAN PORT LED INDICATIONS
Green blinking
Off
CONNECTION SPEED
On Green
On Amber
Off
SPECIFICATIONS
Consumption: ......................................................................................................................3 A max @ 12 V
Power: .............................................................................................................................................. max. 9 W
Temperature: ..........................................................................................................................from 0 ÷ +55 °C
Dimensions (L x H x D): ....................................................................................................... 134 x 44 x 95 mm
Weight: ........................................................................................................................... approximately 850 g
For more information about the Ipercom system, frame the QR Code with
the camera of your smartphone or tablet and then press Communication/
Ipercom System.
DS1060-150
Server powered and running
Server powered but not running
Server not powered
Data traffi c present
Data traffi c absent
1 Gbit/s
100 Mbit/s
No connection
1
Amber / Green
(supplied by the included power unit)
2
Green
