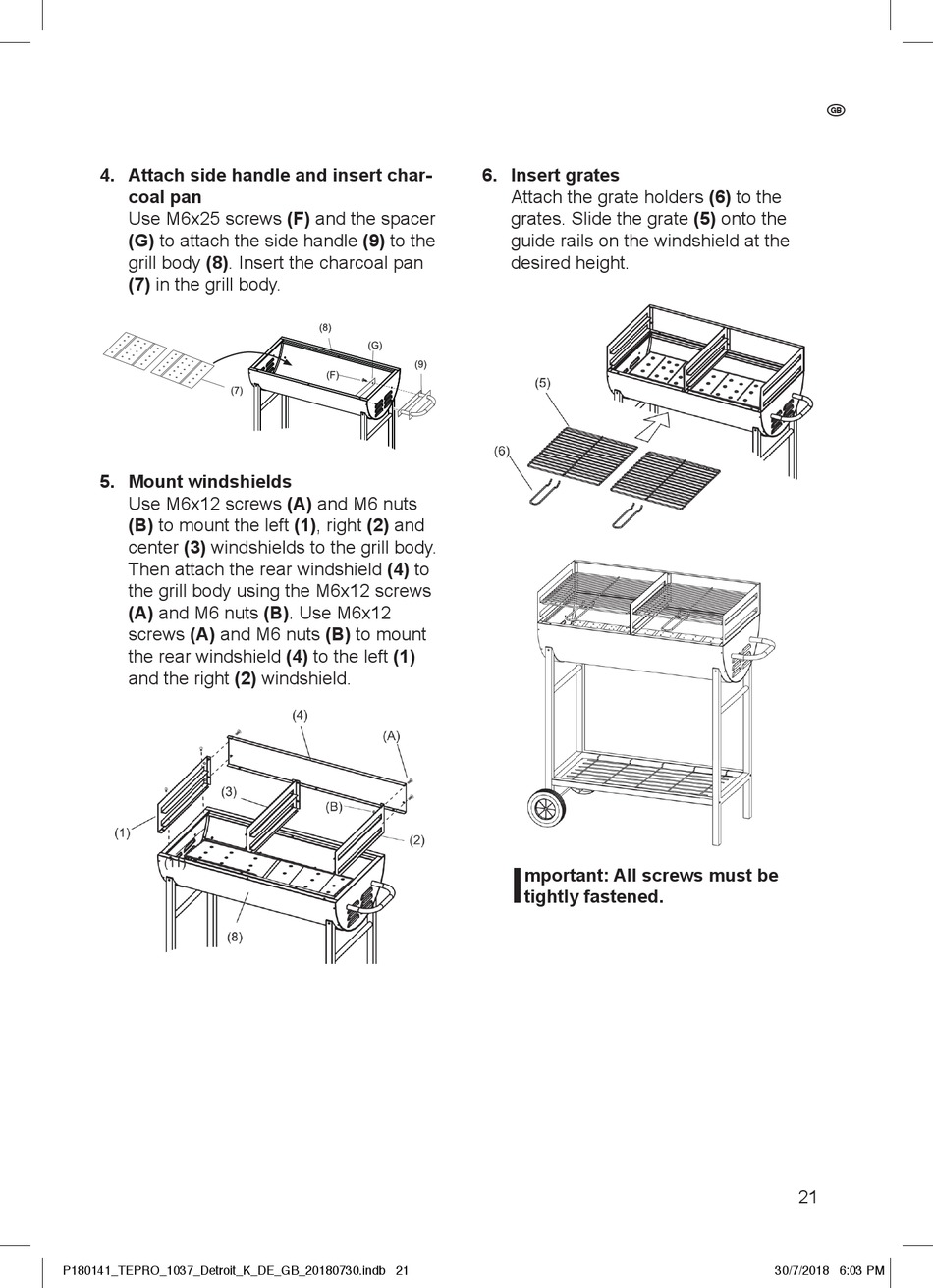

4. Attach side handle and insert char-
coal pan
Use M6x25 screws (F) and the spacer
(G) to attach the side handle (9) to the
grill body (8). Insert the charcoal pan
(7) in the grill body.
5. Mount windshields
Use M6x12 screws (A) and M6 nuts
(B) to mount the left (1), right (2) and
center (3) windshields to the grill body.
Then attach the rear windshield (4) to
the grill body using the M6x12 screws
(A) and M6 nuts (B). Use M6x12
screws (A) and M6 nuts (B) to mount
the rear windshield (4) to the left (1)
and the right (2) windshield.
P180141_TEPRO_1037_Detroit_K_DE_GB_20180730.indb 21
6. Insert grates
Attach the grate holders (6) to the
grates. Slide the grate (5) onto the
guide rails on the windshield at the
desired height.
I
mportant: All screws must be
tightly fastened.
t
