3. Installation

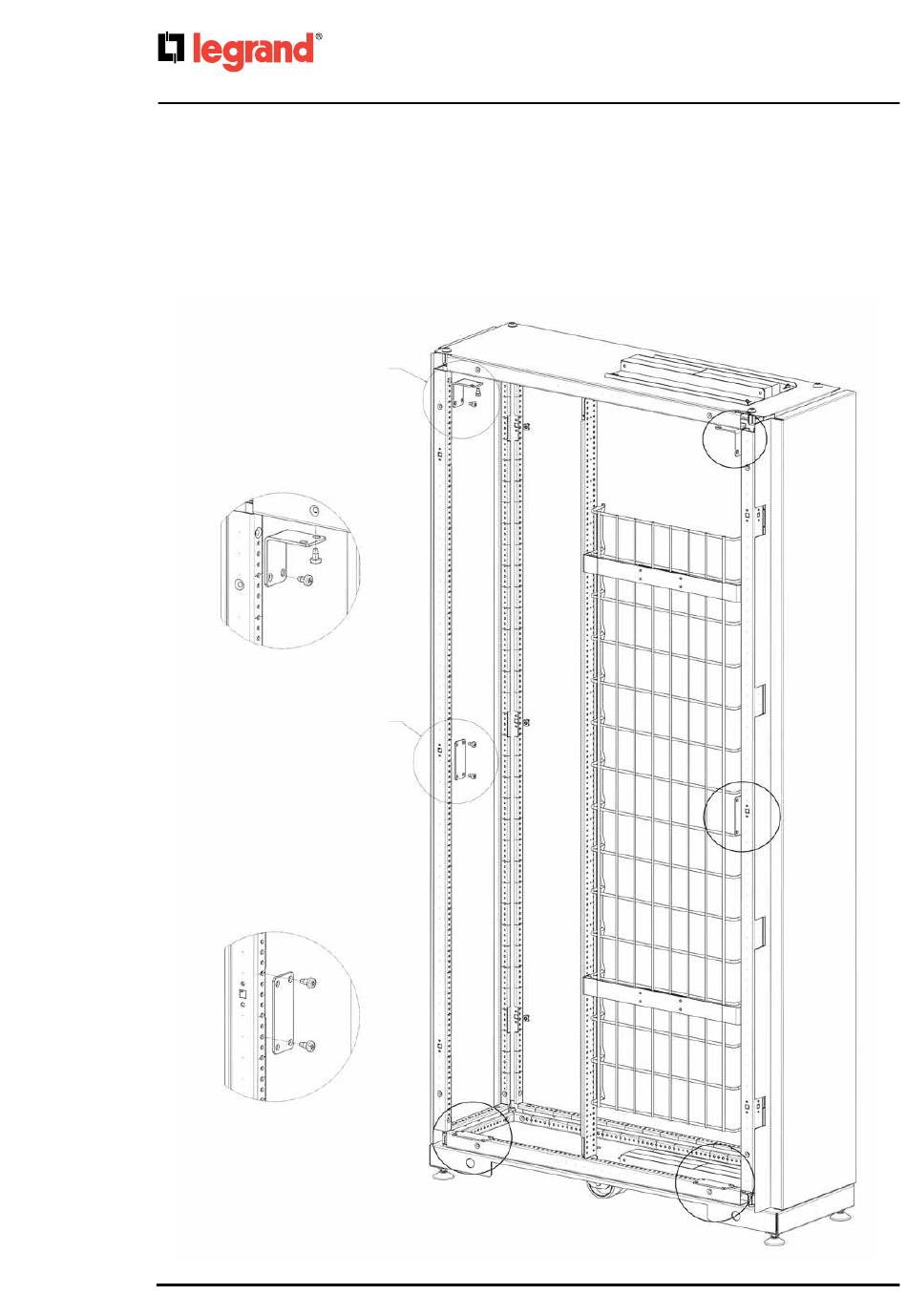

3) Take 2 L-shaped fixing plates and fix them on the top left of the equipment with 2 M6x12 torx screw for each plate as
shown in the picture.
Take 4 plate brackets and fix them at the left front, at the left rear sides and at the left bottom of the equipment with 2
M6x12 torx screw for each plate as shown in the picture.
22
B
B
A
A
