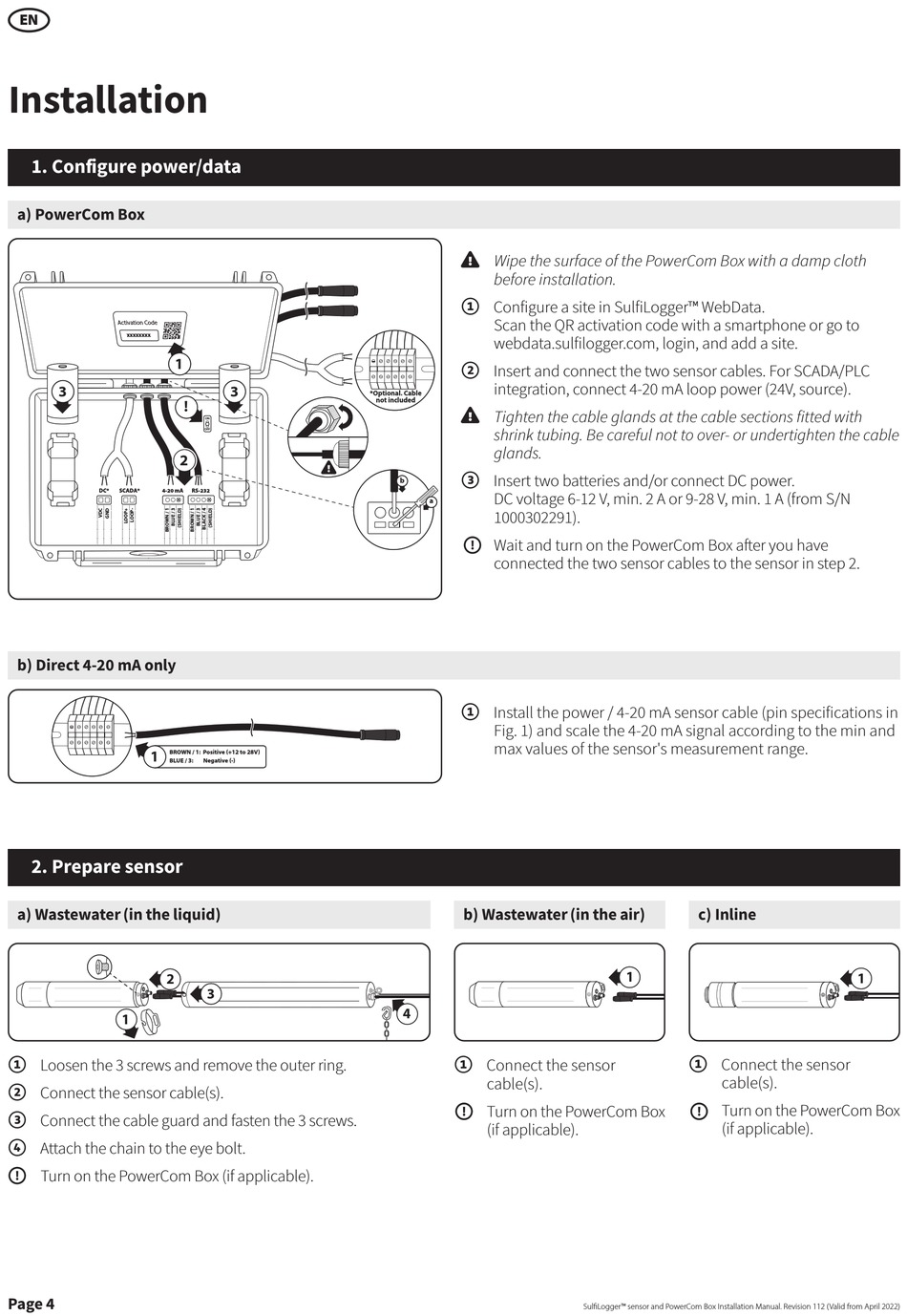

Installation
1. Configure power/data
a) PowerCom Box
Activation Code
XXXXXXXX
1
3
SCADA* 4-20 mA
DC*
b) Direct 4-20 mA only
BROWN / 1: Positive (+12 to 28V)
BLUE / 3:
2. Prepare sensor
a) Wastewater (in the liquid)
2
1
①
Loosen the 3 screws and remove the outer ring.
②
Connect the sensor cable(s).
③
Connect the cable guard and fasten the 3 screws.
④
Attach the chain to the eye bolt.
Turn on the PowerCom Box (if applicable).
Page 4
3
!
ON
OFF
2
RS-232
Negative (-)
3
 Wipe the surface of the PowerCom Box with a damp cloth
before installation.
①
Configure a site in SulfiLogger™ WebData.
Scan the QR activation code with a smartphone or go to
webdata.sulfilogger.com, login, and add a site.
②
Insert and connect the two sensor cables. For SCADA/PLC
integration, connect 4-20 mA loop power (24V, source).
*Optional. Cable
not included
 Tighten the cable glands at the cable sections fitted with
shrink tubing. Be careful not to over- or undertighten the cable
glands.
③
Insert two batteries and/or connect DC power.
b
DC voltage 6-12 V, min. 2 A or 9-28 V, min. 1 A (from S/N
a
1000302291).
Wait and turn on the PowerCom Box after you have
connected the two sensor cables to the sensor in step 2.
①
Install the power / 4-20 mA sensor cable (pin specifications in
Fig. 1) and scale the 4-20 mA signal according to the min and
max values of the sensor's measurement range.
b) Wastewater (in the air)
4
①
Connect the sensor
cable(s).
Turn on the PowerCom Box
(if applicable).
c) Inline
1
①
Connect the sensor
cable(s).
Turn on the PowerCom Box
(if applicable).
SulfiLogger™ sensor and PowerCom Box Installation Manual. Revision 112 (Valid from April 2022)
