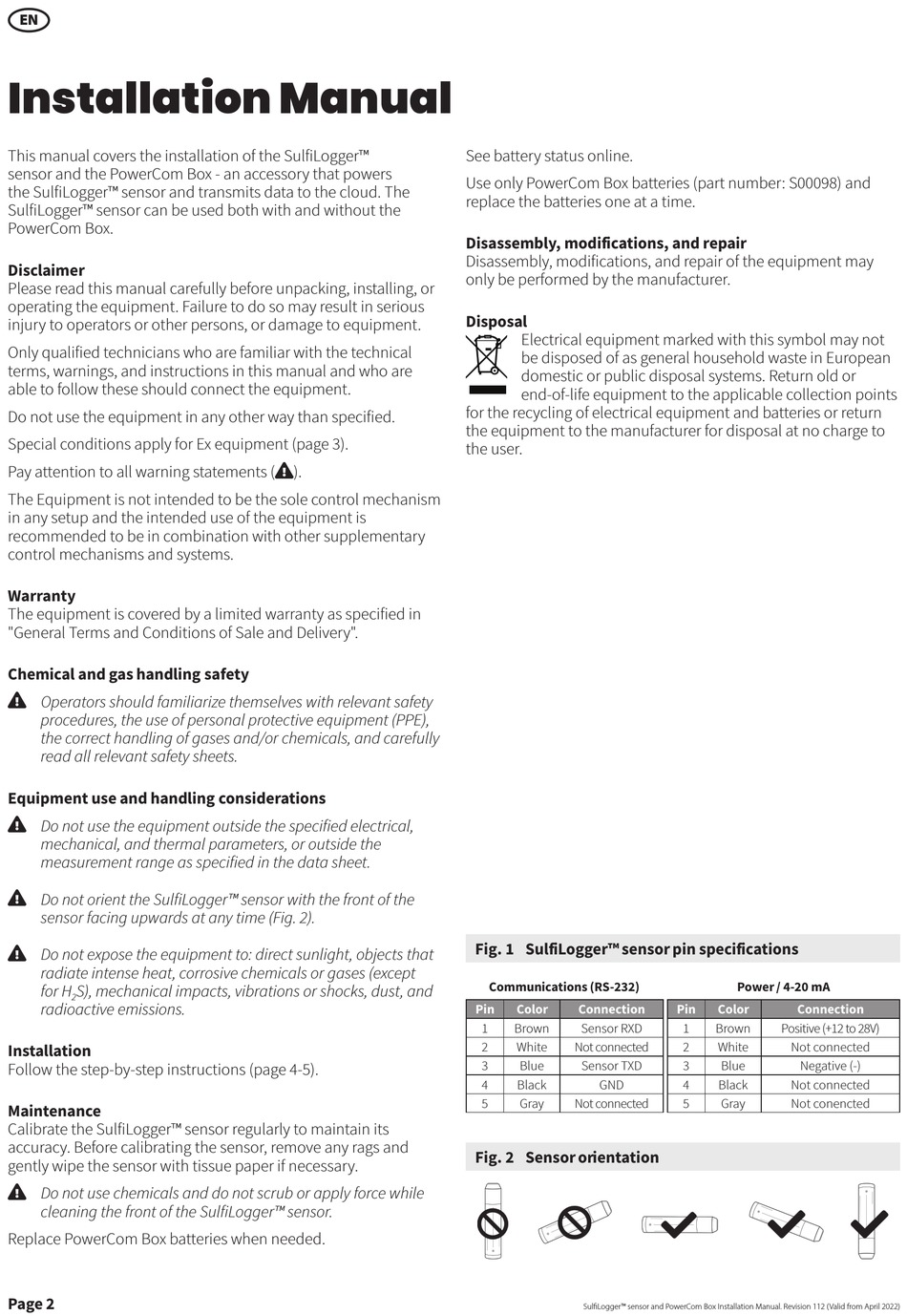

Installation Manual
This manual covers the installation of the SulfiLogger™
sensor and the PowerCom Box - an accessory that powers
the SulfiLogger™ sensor and transmits data to the cloud. The
SulfiLogger™ sensor can be used both with and without the
PowerCom Box.
Disclaimer
Please read this manual carefully before unpacking, installing, or
operating the equipment. Failure to do so may result in serious
injury to operators or other persons, or damage to equipment.
Only qualified technicians who are familiar with the technical
terms, warnings, and instructions in this manual and who are
able to follow these should connect the equipment.
Do not use the equipment in any other way than specified.
Special conditions apply for Ex equipment (page 3).
Pay attention to all warning statements (  ).
The Equipment is not intended to be the sole control mechanism
in any setup and the intended use of the equipment is
recommended to be in combination with other supplementary
control mechanisms and systems.
Warranty
The equipment is covered by a limited warranty as specified in
"General Terms and Conditions of Sale and Delivery".
Chemical and gas handling safety
 Operators should familiarize themselves with relevant safety
procedures, the use of personal protective equipment (PPE),
the correct handling of gases and/or chemicals, and carefully
read all relevant safety sheets.
Equipment use and handling considerations
 Do not use the equipment outside the specified electrical,
mechanical, and thermal parameters, or outside the
measurement range as specified in the data sheet.
 Do not orient the SulfiLogger™ sensor with the front of the
sensor facing upwards at any time (Fig. 2).
 Do not expose the equipment to: direct sunlight, objects that
radiate intense heat, corrosive chemicals or gases (except
for H S), mechanical impacts, vibrations or shocks, dust, and
2
radioactive emissions.
Installation
Follow the step-by-step instructions (page 4-5).
Maintenance
Calibrate the SulfiLogger™ sensor regularly to maintain its
accuracy. Before calibrating the sensor, remove any rags and
gently wipe the sensor with tissue paper if necessary.
 Do not use chemicals and do not scrub or apply force while
cleaning the front of the SulfiLogger™ sensor.
Replace PowerCom Box batteries when needed.
Page 2
See battery status online.
Use only PowerCom Box batteries (part number: S00098) and
replace the batteries one at a time.
Disassembly, modifications, and repair
Disassembly, modifications, and repair of the equipment may
only be performed by the manufacturer.
Disposal
Electrical equipment marked with this symbol may not
be disposed of as general household waste in European
domestic or public disposal systems. Return old or
end-of-life equipment to the applicable collection points
for the recycling of electrical equipment and batteries or return
the equipment to the manufacturer for disposal at no charge to
the user.
Fig. 1 SulfiLogger™ sensor pin specifications
Communications (RS-232)
Pin Color Connection
1 Brown Sensor RXD
2 White Not connected
3 Blue Sensor TXD
4 Black GND
5 Gray Not connected
Fig. 2 Sensor orientation
SulfiLogger™ sensor and PowerCom Box Installation Manual. Revision 112 (Valid from April 2022)
Power / 4-20 mA
Pin Color Connection
1 Brown Positive (+12 to 28V)
2 White Not connected
3 Blue Negative (-)
4 Black Not connected
5 Gray Not conencted
