Getting Started

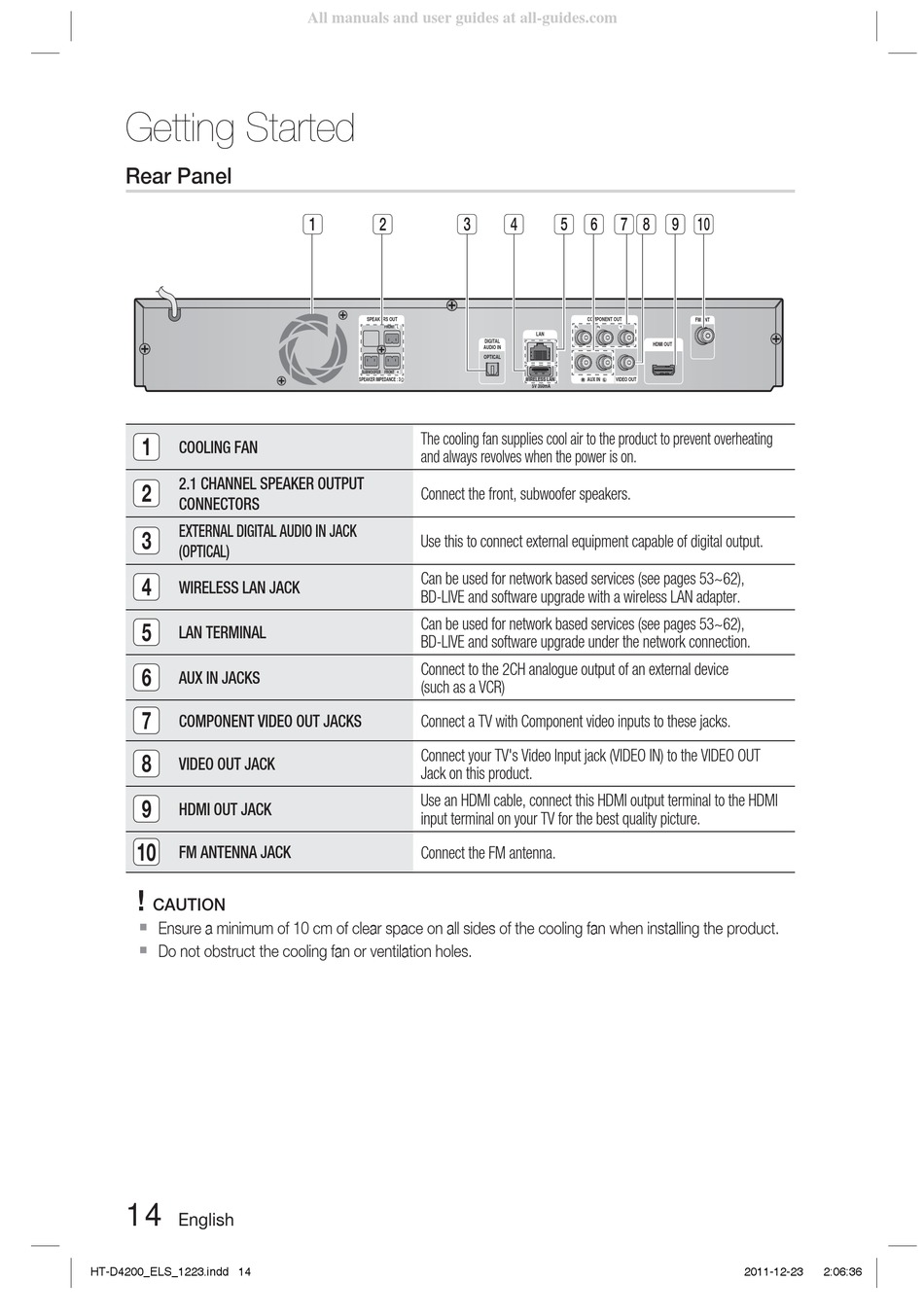

Rear Panel

1
COOLING FAN
2.1 CHANNEL SPEAKER OUTPUT
2
CONNECTORS
EXTERNAL DIGITAL AUDIO IN JACK
3
(OPTICAL)
4
WIRELESS LAN JACK
5
LAN TERMINAL
6
AUX IN JACKS
7
COMPONENT VIDEO OUT JACKS
8
VIDEO OUT JACK
9
HDMI OUT JACK
10
FM ANTENNA JACK
!
CAUTION

Ensure a minimum of 10 cm of clear space on all sides of the cooling fan when installing the product.

Do not obstruct the cooling fan or ventilation holes.
