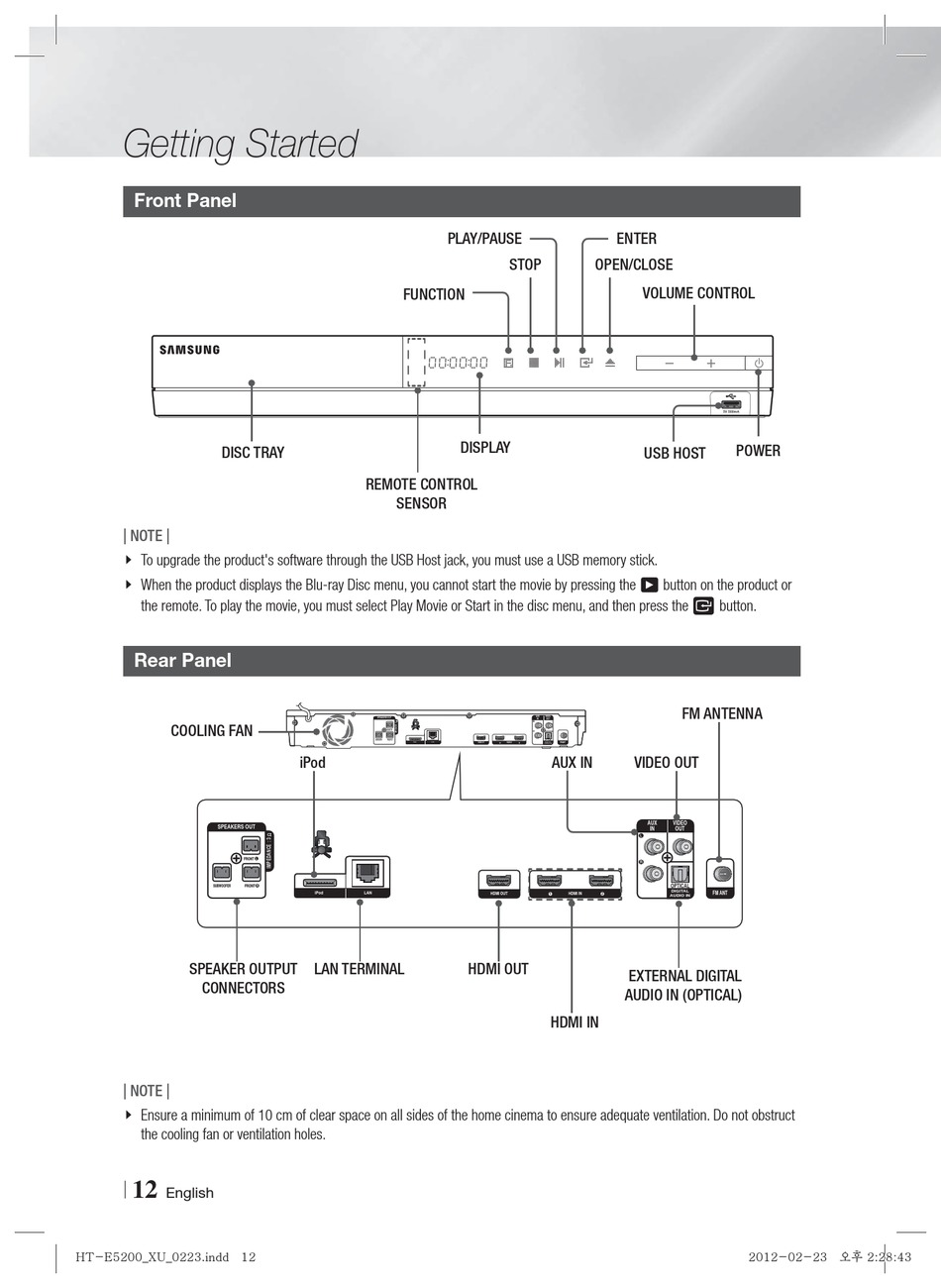

Getting Started

Front Panel

DISC TRAY
| NOTE |
\ To upgrade the product's software through the USB Host jack, you must use a USB memory stick.
\ When the product displays the Blu-ray Disc menu, you cannot start the movie by pressing the 6 button on the product or
the remote. To play the movie, you must select Play Movie or Start in the disc menu, and then press the E button.

Rear Panel

COOLING FAN
SPEAKERS OUT
SPEAKER OUTPUT
CONNECTORS
| NOTE |
\ Ensure a minimum of 10 cm of clear space on all sides of the home cinema to ensure adequate ventilation. Do not obstruct
the cooling fan or ventilation holes.
12
|
English
