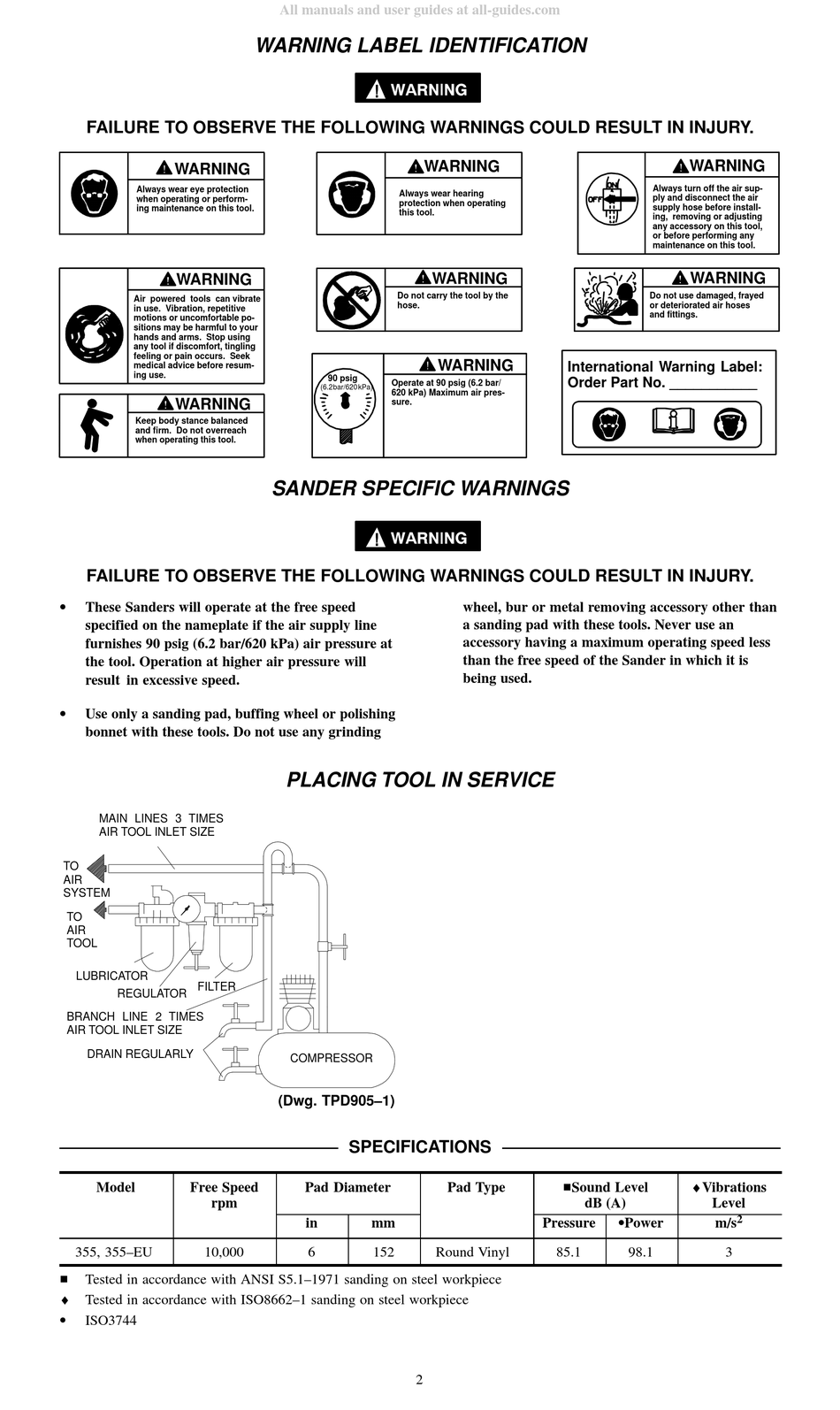

Placing Tool In Service - Ingersoll-Rand 355-Serie Bedienungsanleitung

FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
WARNING
Always wear eye protection
when operating or perform-
ing maintenance on this tool.
WARNING
Air powered tools can vibrate
in use. Vibration, repetitive
motions or uncomfortable po-
sitions may be harmful to your
hands and arms. Stop using
any tool if discomfort, tingling
feeling or pain occurs. Seek
medical advice before resum-
ing use.
WARNING
Keep body stance balanced
and firm. Do not overreach
when operating this tool.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
•
These Sanders will operate at the free speed
specified on the nameplate if the air supply line
furnishes 90 psig (6.2 bar/620 kPa) air pressure at
the tool. Operation at higher air pressure will
result in excessive speed.
•
Use only a sanding pad, buffing wheel or polishing
bonnet with these tools. Do not use any grinding
MAIN LINES 3 TIMES
AIR TOOL INLET SIZE
TO
AIR
SYSTEM
TO
AIR
TOOL
LUBRICATOR
FILTER
REGULATOR
BRANCH LINE 2 TIMES
AIR TOOL INLET SIZE
DRAIN REGULARLY
Model Free Speed
rpm
355, 355–EU 10,000
H
Tested in accordance with ANSI S5.1–1971 sanding on steel workpiece
♦ Tested in accordance with ISO8662–1 sanding on steel workpiece
•
ISO3744
All manuals and user guides at all-guides.com
WARNING LABEL IDENTIFICATION
Always wear hearing
protection when operating
this tool.
Do not carry the tool by the
hose.
90 psig
Operate at 90 psig (6.2 bar/
(6.2bar/620 kPa)
620 kPa) Maximum air pres-
sure.
SANDER SPECIFIC WARNINGS

PLACING TOOL IN SERVICE

COMPRESSOR
(Dwg. TPD905–1)
SPECIFICATIONS
Pad Diameter
in mm
6 152
WARNING
WARNING
WARNING
International Warning Label:
Order Part No. ___________
wheel, bur or metal removing accessory other than
a sanding pad with these tools. Never use an
accessory having a maximum operating speed less
than the free speed of the Sander in which it is
being used.
HSound Level
Pad Type
Pressure
Round Vinyl 85.1
2
WARNING
Always turn off the air sup-
ply and disconnect the air
supply hose before install-
ing, removing or adjusting
any accessory on this tool,
or before performing any
maintenance on this tool.
WARNING
Do not use damaged, frayed
or deteriorated air hoses
and fittings.
♦Vibrations
dB (A) Level
•Power
2
m/s
98.1 3
