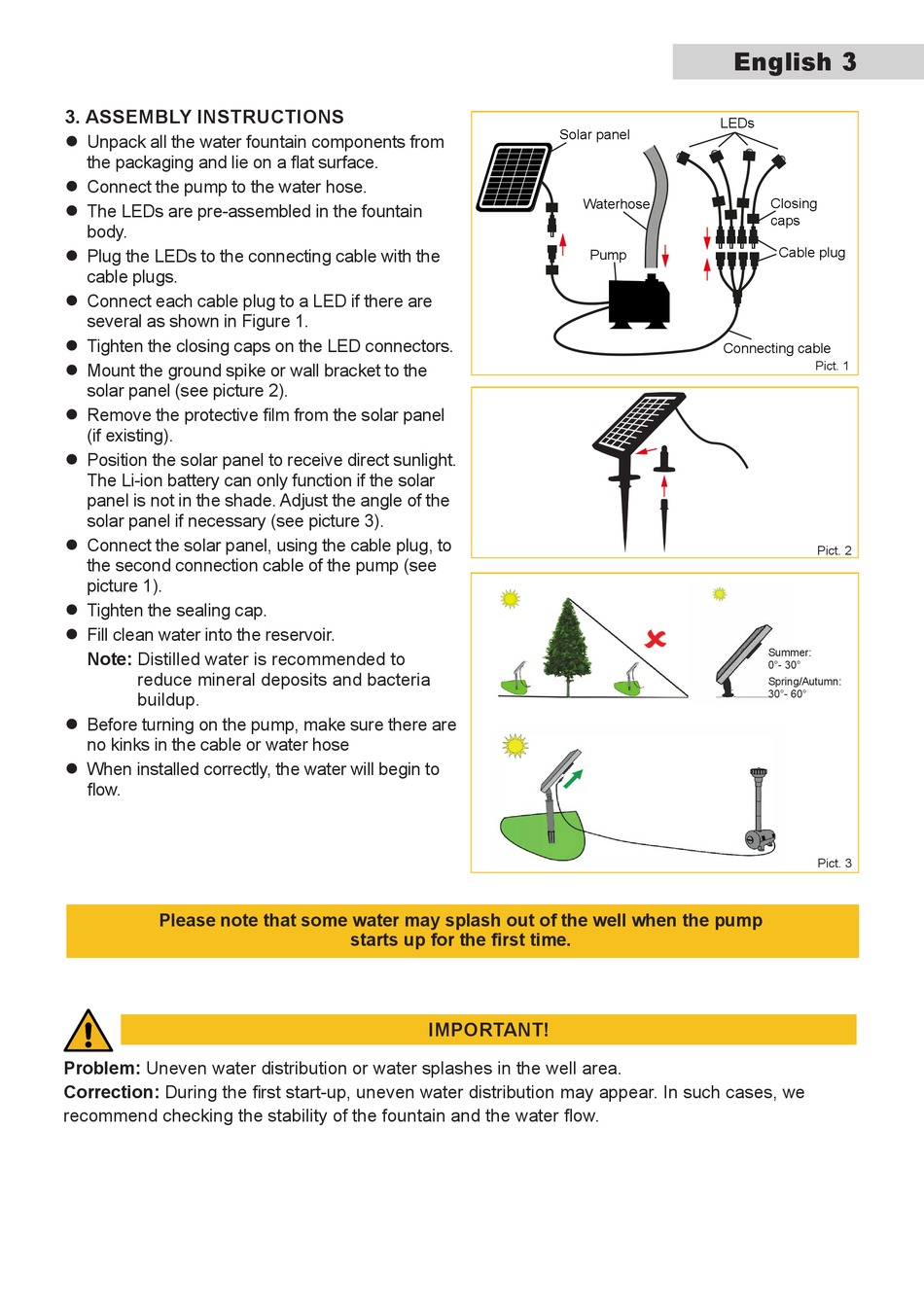

3. ASSEMBLY INSTRUCTIONS
z Unpack all the water fountain components from
the packaging and lie on a flat surface.
z Connect the pump to the water hose.
z The LEDs are pre-assembled in the fountain
body.
z Plug the LEDs to the connecting cable with the
cable plugs.
z Connect each cable plug to a LED if there are
several as shown in Figure 1.
z Tighten the closing caps on the LED connectors.
z Mount the ground spike or wall bracket to the
solar panel (see picture 2).
z Remove the protective film from the solar panel
(if existing).
z Position the solar panel to receive direct sunlight.
The Li-ion battery can only function if the solar
panel is not in the shade. Adjust the angle of the
solar panel if necessary (see picture 3).
z Connect the solar panel, using the cable plug, to
the second connection cable of the pump (see
picture 1).
z Tighten the sealing cap.
z Fill clean water into the reservoir.
Note: Distilled water is recommended to
reduce mineral deposits and bacteria
buildup.
z Before turning on the pump, make sure there are
no kinks in the cable or water hose
z When installed correctly, the water will begin to
flow.
Please note that some water may splash out of the well when the pump
Problem: Uneven water distribution or water splashes in the well area.
Correction: During the first start-up, uneven water distribution may appear. In such cases, we
recommend checking the stability of the fountain and the water flow.
starts up for the first time.
IMPORTANT!
English 3
LEDs
Solar panel
Waterhose
Pump
Connecting cable
Closing
caps
Cable plug
Pict. 1
Pict. 2
Summer:
0°- 30°
Spring/Autumn:
30°- 60°
Pict. 3
