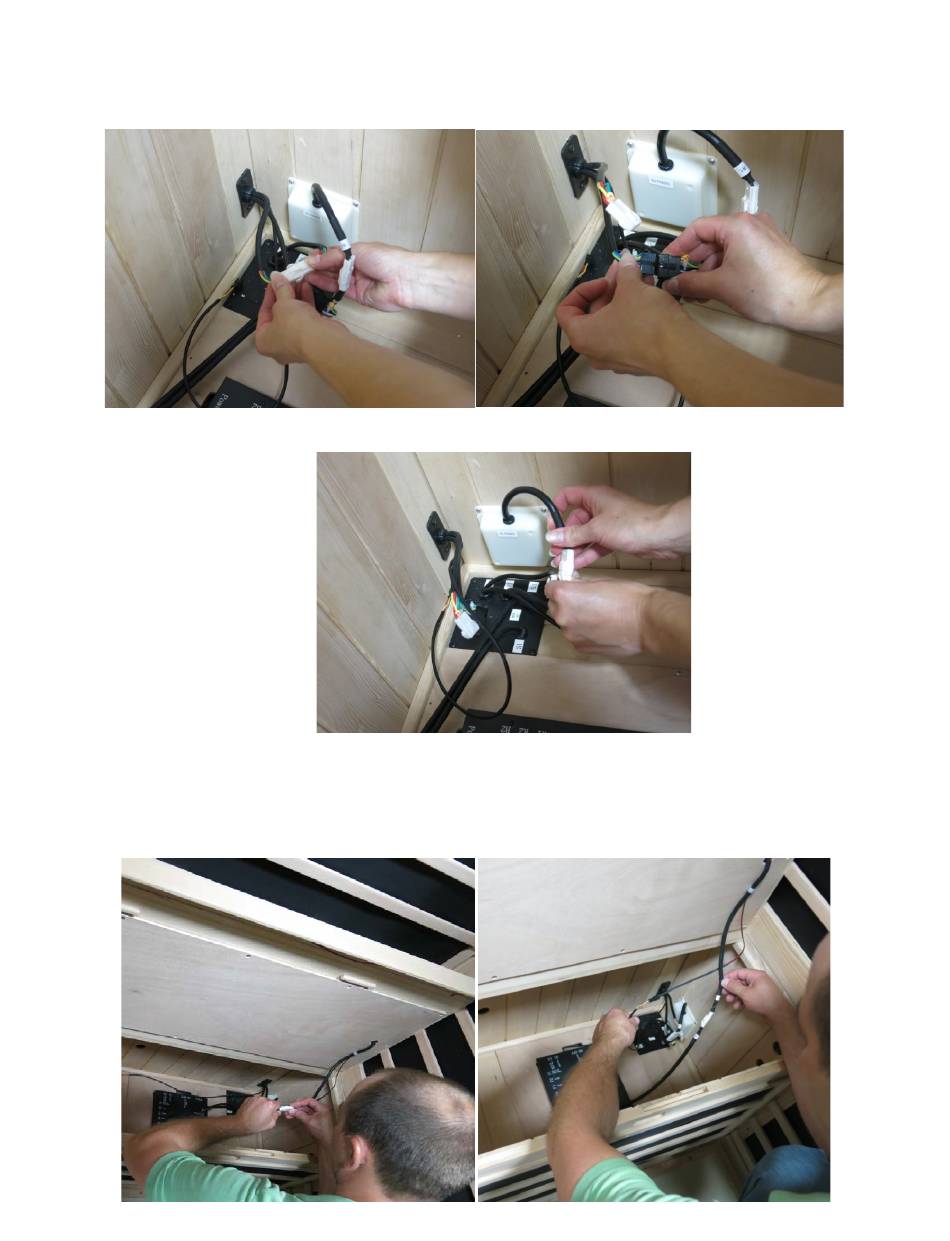

Electrical Connections (under bench - right side):
• Connect wire #4 from distribution plate to #4 from Back Wall harness.
• Connect wire #5 from the distribution plate to #5 from the Back Wall harness.
• Connect wire R1 from the distribution plate to R1 from the Right Wall junction box.
• Connect wire S3 from the distribution plate to S3 from the Bench Skirt.
• Connect wire #6 from the Back Wall harness to the Bench Top wire #6.
• Connect wire S1 from the distribution plate to the Bench Top wire S1.
