Quick Installation Guide

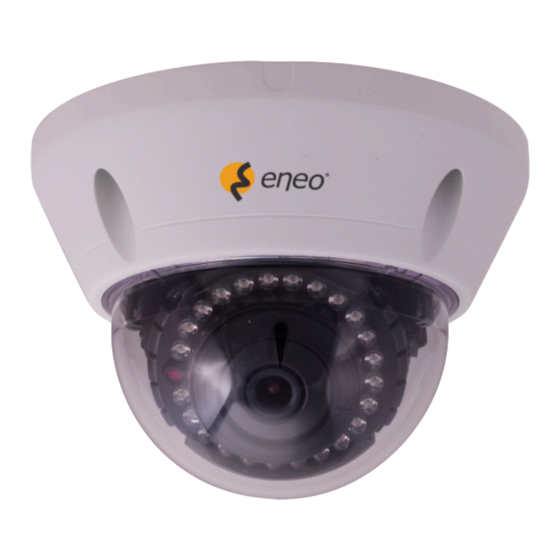

1/2.8" Network Dome Camera,
Day&Night, IR-LED, PoE, ONVIF
NXD-980IR37M

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Eneo NXD-980IR37M

  • Seite 1 Quick Installation Guide 1/2.8“ Network Dome Camera, Day&Night, IR-LED, PoE, ONVIF NXD-980IR37M...
  • Seite 2: Inhaltsverzeichnis

    Inhalt Inhalt ...........................2 Sicherheitshinweise ....................3 Lieferumfang ......................3 Anschlüsse ........................4 Installation .........................4 Anschluss an RJ-45 ....................5 Schlitz für MicroSD-Karte ..................5 Anschluss der Stromversorgung ................6 Netzwerkverbindung und IP-Zuweisung ..............6 Bedienung .........................6 Zugriff über einen Browser ..................6 Zugriff über Internet ....................7 Einstellung des Admin-Passworts über eine sichere Verbindung ......7 Live View-Seite .....................8 Netzwerkkamera-Konfiguration ................10 Rücksetzen auf die Werkeinstellungen .............
  • Seite 3: Sicherheitshinweise

    Sicherheitshinweise Bitte beachten Sie auch die beiliegenden Sicherheitshinweise und lesen Sie diese Anleitung vor Inbetriebnahme sorgfältig durch. Wichtige Hinweise sind mit einem Achtungsymbol gekennzeichnet. Lieferumfang • 1x Dome-Kamera • 1x Montageset • 1x Installations-CD • 1x Bohrschablone • 1x Installationsanleitung HINWEIS: Prüfen Sie den Packungsinhalt, um sicherzustellen, dass Sie das vollständige System mit allen oben dargestellten Kompo- nenten erhalten haben.
  • Seite 4: Anschlüsse

    Anschlüsse Name Beschreibung Objektiv Erlaubt die Überwachung eines großen Bereichs. Netzkabel Kabel für Stromversorgung (12V DC) Ethernet-Kabel Kabel für Ethernet (PoE) Installation Entfernen Sie den Inhalt vorsichtig aus der Verpackung und vergewissern Sie sich, dass während der Lieferung nichts beschädigt wurde. 1.
  • Seite 5: Anschluss An Rj-45

    Torx-Schrauben M3 x 12 (4x) Bohrschablone Teflonband Torx-Schrauben M6 x 35 (4x) Kunststoffdübel (4x) 4. Befestigen Sie die Dome-Abdeckung an der Kamera. Drehen Sie die Kamera-Abdeckung im Uhrzeigersinn, um die Montage abzuschließen. Anschluss an RJ-45 Schließen Sie ein Standard-RJ-45-Kabel an den Netzwerkanschluss der Netzwerkkamera an.
  • Seite 6: Anschluss Der Stromversorgung

    Kamera erstmals an das Netzwerk angeschlossen wird, hat sie noch keine zugewiesene IP-Adresse. Daher ist es erforderlich, dem Gerät mit dem Hilfsprogramm eneo Scan Device auf der mitgelieferten CD eine IP- Adresse zuzuweisen. Das werksseitig voreingestellte IP ist „192.168.1.10“.
  • Seite 7: Zugriff Über Internet

    4. Die Live View-Seite der Netzwerkkamera erscheint in Ihrem Browser. Zugriff über Internet Nach dem Einrichten des Zugriffs über das Internet ist die Netzwerkkamera in Ihrem lokalen Netzwerk (LAN) verfügbar. Um vom Internet aus auf die Netzwerkkamera zugreifen zu können, müssen Sie Ihren Breitband-Router so konfigurieren, dass eingehende Verbindungen zur Netzwerkkamera zugelas- sen werden.
  • Seite 8: Live View-Seite

    Passwort“, der beim ersten Aufruf der Konfiguration der Netzwerkkamera angezeigt wird. Geben Sie Ihren Admin-Namen und das Kennwort ein, die vom Administrator eingestellt wurden. HINWEIS: Der Standardname und das Standardkennwort des Administrators lauten „admin“. Wenn das Kennwort verloren gegangen ist, muss die Netzwerkkamera auf die Werkeinstellun- gen zurückgesetzt werden.
  • Seite 9 Allgemeine Steuerelemente Live View-Seite Suche & Wiedergabe-Seite Konfigurationsseite Hilfeseite . Mit der Video-Dropdown-Liste können Sie einen konfigurierten oder einen vorprogrammierten Video-Stream auf der Live View-Seite anzeigen. Die Stream-Profile werden unter Setup (Konfiguration) > Basic Configuration (Grund- konfiguration) > Video und Bild konfiguriert. Weitere Informationen finden Sie unter „3.5.1 Grundkonfiguration >...
  • Seite 10: Netzwerkkamera-Konfiguration

    Mit der Schaltfläche Manuelle Auslösung wird ein Popup-Fenster aufge- rufen, mit dem das Ereignis manuell gestartet oder gestoppt werden kann. Video-Streams Die Netzwerkkamera bietet mehrere Formate für Bilder und Video-Streams. Welchen Typ Sie verwenden, hängt von Ihren Anforderungen und den Ei- genschaften Ihres Netzwerks ab.
  • Seite 11: Rücksetzen Auf Die Werkeinstellungen

    Eingabe des Admin-Kennworts. Geben Sie Ihren Admin-Namen und das Kennwort ein, die vom Administrator eingestellt wurden. HINWEIS: Wenn das Kennwort verloren gegangen ist, muss die Netzwerkkamera auf die Werkseinstellungen zurückgesetzt wer- den. Rücksetzen auf die Werkeinstellungen Um die Netzwerkkamera auf die Werkeinstellungen zurückzusetzen, rufen Sie die Webseite Konfiguration >...
  • Seite 12: Verwendung Der Rücksetztaste

    Rücksetzen auf die Werkeinstellungen abge- schlossen ist. ACHTUNG: Beim Rücksetzen auf die Werkeinstellungen gehen alle Einstellungen verloren, die Sie vorgenommen haben. (Standard-IP 192.168.1.10) Weitere Informationen Das Benutzerhandbuch ist auf der eneo Website unter www.eneo-security.com oder auf der mitgelieferten CD verfügbar.
  • Seite 13: Contents

    Contents Contents ......................... 13 Notes on safety ..................... 14 Parts supplied ......................14 Connections ......................15 Installation ......................15 Connecting to the RJ-45 ..................16 microSD card slot ....................16 Connecting the Power ..................17 Network Connection and IP assignment..............17 Operation ........................ 17 Access from a browser ..................17 Access from the internet ..................18 Setting the admin password over a secure connection ........18...
  • Seite 14: Notes On Safety

    Notes on safety Please also pay attention to the enclosed safety instructions, and carefully read through this instruction guide before initial operation. Important points of advice are marked with a caution symbol. Parts supplied • 1x Dome camera • 1x Accessory Kit •...
  • Seite 15: Connections

    Connections Name Description Lens Allows wide area to be monitored Power Cable Cable for Power source (DC 12V) Ethernet Cable Cable for Ethernet (PoE) Installation Carefully remove the contents from the box, and verity that nothing was damaged in shipment. 1.
  • Seite 16: Connecting To The Rj-45

    Torx screws M3 x 12 (4x) Drilling Guide Teflon Tape Label Torx screws M6 x 35 (4x) Plastic anchors (4x) 4. Reassemble the dome cover on the camera assembly. Turn Camera Cover clockwise to complete installation. Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera.
  • Seite 17: Connecting The Power

    IP address. So, it is necessary to allocate an IP address to the device with the “eneo Scan Device” tool found on the supplied CD. The factory default IP is “192.168.1.10”...
  • Seite 18: Access From The Internet

    4. The network camera’s Live View page appears in your browser. Access from the internet Access from the internet once connected, the Network Camera is accessible on your local network (LAN). To access the network camera from the Internet you must configure your broadband router to allow incoming data traffic to the network camera.
  • Seite 19: Live View Page

    NOTE: The default administrator username and password is “admin”. If the password is lost, the Network Camera must be reset to the factory default settings. See “Resetting to the Factory Default Settings”. Live View Page The live view page comes in several screen modes: 1920x1080, 1280x1024, 1280x720,704x480(576),640x480,352x240(288) and 320x240.
  • Seite 20: General Controls

    General controls Live View Page Search & Playback Page Setup Page Help Page The video drop-down list allows you to select a customized or pre-programmed video stream on the live view page. Stream profiles are configured under Setup > Basic Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration >...
  • Seite 21: Network Camera Setup

    Video Streams The network camera provides several images and video stream formats. Your requirements and the properties of your network will determine the type you use. The Live View page in the network camera provides access to H.264, MPEG-4 and Motion JPEG video streams, and to the list of available vid- eo streams.
  • Seite 22: Resetting To The Factory Default Settings

    5. The network camera resets to factory defaults and restarts after com- pleting the factory reset. CAUTION: When performing a Factory Reset, you will lose any settings you have saved. (Default IP 192.168.1.10) Further information The User‘s Guide is available on the eneo website at www.eneo-security.com or on the included CD.
  • Seite 23: Contenu

    Contenu Contenu ........................23 Consignes de sécurité ..................24 Matériel livré ......................24 Raccordements ..................... 25 Installation ......................25 Connexion au RJ-45 ....................26 Logement de carte microSDe ................26 Connexion de l´alimentation ................27 Connexion au réseau et attribution d’une adresse IP ..........27 Fonctionnement .....................
  • Seite 24: Consignes De Sécurité

    Consignes de sécurité Respectez les consignes de sécurité ci-après et lisez attentivement cette notice avant toute utilisation. Les points importants sont précédés d´un symbole d´avertisse- ment. Matériel livré • 1x Caméra dôme • 1x Kit d'accessoires • 1x CD d’installation •...
  • Seite 25: Raccordements

    Raccordements Description Objectif Permet la surveillance d’une large zone. Câble d'alimen- Câble d'allimentation (12 V CC) tation Câble Ethernet Câble pour Ethernet (PoE) Installation Sortez soigneusement le contenu de la boîte et vérifiez si rien n'a été en- dommagé durant le transport. 1.
  • Seite 26: Connexion Au Rj-45

    Vis torx M3 x 12 (4x) Gabarit Bande Teflon de perçage Vis torx M6 x 35 (4x) Chevilles en plas- tique (4x) 4. Réinstallez le cache du dôme sur la caméra. Tournez le cache de la caméra dans le sens des aiguilles d'une montre pour terminer l'installa- tion.
  • Seite 27: Connexion De L´alimentation

    Lorsque vous branchez la caméra pour la première fois à un réseau, elle n’a pas d'adresse IP dédiée. Il est donc nécessaire d’allouer une adresse IP au système à l'aide de l'utilitaire “eneo Scan Device” sur le CD fourni. Le paramètre d’usine par défaut est “192.168.1.10”.
  • Seite 28: Accès À Partir De L'internet

    4. La page Live View de la caméra réseau s'ouvre dans votre navigateur. Accès à partir de l’internet Accès à partir de l’internet. Une fois connectée, la caméra rédeau est acces- sible depuis votre réseau local (LAN). Pour accéder à la caméra réseau de- puis l'Internet, vous devez configurer votre routeur à...
  • Seite 29: Page Live View (Affichage En Direct)

    dialogue « Admin Password », qui apparaît lors de la première connexion à la caméra réseau à des fins de configuration. Saisissez votre nom et mot de passe utilisateur, défini par l’administrateur. REMARQUE : Le nom et le mot de passe d'administrateur par défaut sont « admin ».
  • Seite 30 Commandes générales Live View Pag (page d'affichage en direct) Search & Playback Page (page de recherche et lecture) Setup Page (page de configura- tion) Help Page (page d'aide) La liste déroulante vidéo vous permet de sélectionner un flux vidéo personnalisé ou préprogrammé sur la page d'affichage en direct. Les profils de flux sont configurés dans Setup >...
  • Seite 31: Configuration De La Caméra Réseau

    Le bouton Manual Trigger affiche une fenêtre contextuelle permettant de lancer ou d’arrêter manuellement un événement. Video Streams La caméra réseau peut proposer plusieurs formats d’image et de flux vidéo. Vos exigences et les propriétés de votre réseau détermineront le format que vous utilisez.
  • Seite 32: Réinitialisation Aux Paramètres Par Défaut D'usine

    REMARQUE : En cas de perte du mot de passe, la caméra réseau doit être réinitialisée aux paramètres s'usine. Voir « Réinitia- lisation aux paramètres par défaut d'usine ». Réinitialisation aux paramètres par défaut d'usine Pour réinitialiser la caméra réseau aux paramètres d'usine, suivez la page Internet Setup>System>...
  • Seite 33: Complément D'information

    (réinitialisation aux paramètres d’usine), vous perdez tous les pa- ramètres que vous avez sauvegardés. (Le paramètre d’usine par défaut est “192.168.1.10”) Complément d’information Le manuel de l'utilisateur est disponible sur le site Internet d'eneo www.eneo-security.com ou sur le CD joint.
  • Seite 34: Spis Treści

    Spis treści Spis treści ....................... 34 Wskazówki dotyczące bezpieczeństwa ............35 Części w zestawie ....................35 Połączenia ......................36 Instalacja ......................... 36 Łączenie RJ-45 ....................37 Gniazdo karty microSD ..................37 Podłączanie zasilania ..................38 Połączenie sieciowe i przypisywanie adresu IP ...........38 Obsługa ........................38 Dostęp z poziomu przeglądarki ................38 Dostęp z Internetu ....................39 Ustanawianie hasła administratora korzystając z bezpiecznego połączenia ..39...
  • Seite 35: Wskazówki Dotyczące Bezpieczeństwa

    Wskazówki dotyczące bezpieczeństwa Prosimy przestrzegać także załączonych wskazówek dotyczących bezpie- czeństwa i dokładnie przeczytać niniejszą instrukcję obsługi przed urucho- mieniem urządzenia. Ważne wskazówki są oznaczone symbolem 'UWAGA'. Części w zestawie • 1x kamera kopułkowa • 1x zestaw akcesoriów • 1x CD z oprogramowaniem •...
  • Seite 36: Połączenia

    Połączenia Nazwa Opis Obiektyw umożliwia monitorowanie szerokokątne Kabel zasilający Kabel do zasilacza (DC 12V) Kabel etherne- Kabel ethernetowy (PoE) towy Instalacja Ostrożnie wyjmij zawartość pudełka, sprawdzając, czy nic nie zostało uszko- dzone w transporcie. 1. Posługując się dołączonym szablonem, oznacz na ścianie lub suficie położenie otworów.
  • Seite 37: Łączenie Rj-45

    Śruby Torx M3 x 12 (4x) Szablon Taśma teflonowa montażowy Śruby Torx M6 x 35 (4x) Plastikowe moco- wania (4x) 4. Ponownie przykręć pokrywę kopułki. Przekręć kamerę zgodnie z ru- chem wskazówek zegara, aby zakończyć montaż. Łączenie RJ-45 Podłącz standardowy przewód z wtykiem RJ-45 do portu ethernetowego kamery.
  • Seite 38: Podłączanie Zasilania

    Kamera sieciowa obsługuje funkcję pracy w sieci. Kamera podłączana do sieci po raz pierwszy nie posiada przypisanego adresu IP. Zatem konieczne jest przydzielenie adresu IP do urządzenia za pomocą aplikacji "eneo Scan Device" , która znajduje się na dołączonej do zestawu płycie CD. Domyślny adres IP ustawiony fabrycznie to “192.168.1.10”...
  • Seite 39: Dostęp Z Internetu

    gląd na żywo) lub Setup (Ustawienia), aby wyświetlić stronę WWW. 4. W oknie przeglądarki pojawi się Live View (widok na żywo). Dostęp z Internetu Podłączona kamera sieciowa jest dostępna w sieci lokalnej (LAN). Aby uzyskać dostęp do kamery sieciowej z Internetu, należy tak skonfigurować router szerokopasmowy, aby umożliwił...
  • Seite 40: Strona Live View (Podgląd Na Żywo)

    UWAGA: Domyślna nazwa użytkownika oraz hasło to “admin”. W razie zapomnienia hasła należy przywrócić domyślne ustawienia fabryczne kamery sieciowej. Patrz: “Przywracanie domyślnych ustawień fabrycznych”. Strona Live View (podgląd na żywo) Podgląd na żywo może być realizowany w następujących rozdzielczo- ściach: 1920x1080, 1280x1024, 1280x720,704x480(576),640x480,35 2x240(288) oraz 320x240.
  • Seite 41 Lista rozwijana Video (Wideo) umożliwia wybranie niestandar- dowego lub wcześniej zaprogramowanego strumienia wideo na stronie 'Live View' (Podgląd na żywo). Profile strumienia można skonfigurować, wybierając opcje Setup > Basic Configuration > Video & Image (Ustawienia > Konfiguracja podstawowa > Obraz i wideo). Więcej informacji można znaleźć w rozdziale 3.5.1, „Basic Confi- guration >...
  • Seite 42: Ustawienia Sieciowe Kamery

    Niniejsza kamera sieciowa umożliwia transmisję strumieni wideo i obrazu w różnych formatach. Należy wybrać odpowiedni typ, w zależności od wyma- gań oraz właściwości sieci. Strona Live View (Podgląd na żywo) kamery sieciowej umożliwia dostęp do strumieni wideo H.264, MPEG-4 i Motion JPEG, a także do całej listy dostępnych strumieni.
  • Seite 43: Przywracanie Domyślnych Ustawień Fabrycznych

    UWAGA: W przypadku zapomnienia/utraty hasła należy przywrócić domyślne ustawienia fabryczne kamery sieciowej. Patrz: “Przywra- canie domyślnych ustawień fabrycznych”. Przywracanie domyślnych ustawień fabrycznych Aby przywrócić ustawienia fabryczne w kamerze sieciowej, przejdź do pod- strony Setup>System> Maintenance (ustawienia>system>nadzór) opisanej w instrukcji użytkownika, (“3.5.5 System > Maintenance”) lub skorzystaj z przycisku Reset w sposób opisany poniżej Przycisk zerowania...
  • Seite 44: Korzystanie Z Przycisku Reset

    UWAGA: Po przywróceniu domyślnych ustawień fabrycznych zosta- ną utracone wszystkie zapisane wcześniej ustawienia. (Domyślne IP 192.168.1.10) Informacje dodatkowe Instrukcja obsługi jest dostępna na stronie internetowej eneo pod adresem: www.eneo-security.com lub na płycie CD dostarczonej w zestawie z tym urządzeniem.
  • Seite 45: Содержание

    Содержание Содержание ......................45 Замечания по безопасности ................46 Объем поставки ....................46 Соединения ......................47 Монтаж ........................47 Подключение к RJ-45 ..................48 Слот для карт microSD ..................48 Подключение питания ..................49 Сетевое соединение и настройки IP ..............49 Эксплуатация ....................... 49 Доступ...
  • Seite 46: Замечания По Безопасности

    Замечания по безопасности Обратите, пожалуйста, внимание на прилагаемые указания по безо- пасности и внимательно прочитайте это руководство перед началом работы. Важные рекомендации отмечены символом предостережения. Объем поставки • 1x купольная камера • 1x комплект для монтажа • 1х установочный компакт-диск •...
  • Seite 47: Соединения

    Соединения №. Наименование Описание Объектив Возможен просмотр широких областей Кабель питания Кабель питания (12 В пост. ток) Кабель Ethernet Кабель Ethernet (PoE) Монтаж Осторожно выньте содержимое упаковки и убедитесь в том, что ничего не было повреждено при поставке. 1. Отметьте отверстия для крепления камеры на потолке или стене с помощью...
  • Seite 48: Подключение К Rj-45

    Крепёжные винты (Torx) M3 x 12 (4x) Монтажный Тефлоновая лента шаблон Крепёжные винты (Torx) Пластиковые M6 x 35 (4x) дюбеля (4x) 4. Установите купол камеры обратно на её основание. В завершение установки поверните купол камеры по часовой стрелке. Подключение к RJ-45 Подключите...
  • Seite 49: Подключение Питания

    Сетевая видеокамера поддерживает рабочие операции по сети. При первичном подключении к сети видеокамере не предоставляется IP-адрес. Поэтому видеокамере необходимо предоставить IP-адрес с помощью вспомогательной программы eneo Scan Device, которая на- ходится на компакт-диске в объёме поставки. IP-адрес по умолчанию: 192.168.1.10 ПРИМЕЧАНИЕ: Дополнительная...
  • Seite 50: Доступ По Интернету

    4. В вашем веб-браузере откроется страница «Живой просмотр». Доступ по Интернету После подключения сетевая видеокамера доступна в локальной сети (LAN). Для предоставления доступа к видеокамере по Интернету необхо- димо настроить широкополосный маршрутизатор таким образом, чтобы он пропускал входящий поток данных к видеокамере. Для этого вклю- чите...
  • Seite 51: Страница «Живой Просмотр

    ПРИМЕЧАНИЕ: пароль администратора по умолчанию - «admin». Если вы не можете вспомнить пароль, то необходимо сбросить настройки видеокамеры на заводские по умолчанию. Подробнее в разделе «Сброс на заводские настройки по умолчанию». Страница «Живой просмотр» Страница «Живой просмотр» доступна в различных форматах экра- на: 1920x1080, 1280x1024, 1280x720, 704x480(576), 640x480, 352x240(288) и...
  • Seite 52 Панель управления Страница «Живой просмотр» Страница «Воспроизведение» Страница «Настройка» Страница «Помощь» В раскрывающемся списке выберите стандартный или инди- видуальный видеопоток для страницы «Живой просмотр». Настроить профили потоков можно здесь: Настройка > Базовые настройки > Видео и изображение. Подробную информацию вы найдёте в руководстве по эксплуатации в разделе «3.5.1 Basic Configuration (Базовые...
  • Seite 53: Настройка Ip-Камеры

    Кнопка «Полноэкранный режим» выводит изображение на всю величину экрана вашего монитора. Другие окна не будут видимы. Для завершения полно-экранного режима нажмите на кнопку «Esc» на кла- виатуре ПК. Кнопка «Активация вручную» приводит в действие всплывающее окно для ручного пуска или ручной остановки события. Видеопотоки...
  • Seite 54: Сброс На Заводские Настройки По Умолчанию

    ПРИМЕЧАНИЕ: если пароль утерян, настройки IP-камеры нужно сбросить до заводских по умолчанию. Подробнее в разделе «Сброс на заводские настройки по умолчанию». Сброс на заводские настройки по умолчанию. Для сброса настроек сетевой видеокамеры на заводские по умолча- нию, перейдите к пункту меню Настройка > Система > Обслуживание (подробное...
  • Seite 55: Использование Кнопки Сброса

    окамеры на заводские по умолчанию и камера производит переза- грузку. ВНИМАНИЕ: При сбросе настроек на заводские вы утрачива- ете все, сохранённые прежде, настройки. (IP-адрес по умолча- нию: 192.168.1.10) Дополнительная информация Руководство для пользователя доступно на веб-сайте марки eneo www.eneo-security.com или на компакт-диске, входящем в комплект поставки.
  • Seite 56 VIDEOR E. Hartig GmbH Exclusive distribution through spe- cialised trade channels only. VIDEOR E. Hartig GmbH Carl-Zeiss-Straße 8 · 63322 Röder- mark/Germany Tel. +49 (0) 6074 / 888-0 · Fax +49 Technical changes reserved (0) 6074 / 888-100 www.videor.com...
